2026 UJ Light Full Product List
FULL PRODUCT LIST
2026 Product Selection & Specification Guide
CHARACTER LCD | GRAPHIC LCD | COG LCD
MULTI-LANGUAGE LCD | OLED

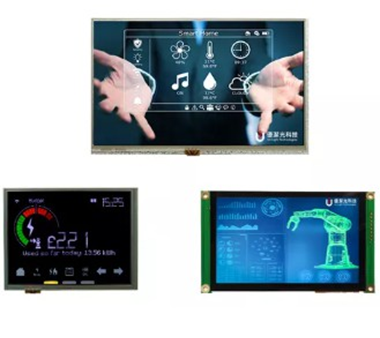

STANDARD TFT LCD | UART TFT LCD | HDMI TFT LCD
E-PAPER | FSC LCD | VATN LCD | LED DISPLAYS
www.ujlight.com.tw | sales@ujlight.com | TEL: +886-3-5678-366
|
UJ LIGHT — COMPLETE PRODUCT CATALOG 2026 |
Product Categories & Guide Structure
• CHARACTER LCD
• UART TFT LCD
• GRAPHIC LCD • HDMI TFT LCD
• COG LCD • AD BOARD
• MULTI-LANGUAGE LCD • TRANSFER BOARD
• CHARACTER OLED • E-PAPER DISPLAY
• GRAPHIC OLED • FSC LCD
• COLOR OLED • VATN LCD
• STANDARD TFT LCD • LED DISPLAYS
CHARACTER LCD
MONOCHROME LCD
Character LCD is designed for text/character display.
UJ Light offers standard sizes such as 8x1, 8x2, 16x2,
16x4 and 20x4, with multiple LCD/backlight colors,
font options and viewing directions.
|
• COB character LCD modules
• Parallel / SPI / I²C options
• Multiple fonts and viewing angles
• Custom LCD sizes available
MONOCHROME LCD / CHARACTER LCD
|
Display Format |
Model No. |
Outline Dimension (mm) |
View Area (mm) |
Active Area (mm) |
Character Size (mm) |
Interface |
IC Part No. or Compatible with Controller |
|
8x1 |
BC0801A |
55x27 |
48x12 |
45.02x12 |
4.84x9.22 |
Parallel/SPI/I2C |
ST7066 |
|
8x2 |
BC0802A |
58x32 |
38x16 |
27.76x11.49 |
2.945x5.545 |
Parallel/SPI/I2C |
ST7066 |
|
8x2 |
BC0802B |
40x20 |
36.3x13.9 |
29.37x10.65 |
3.12x5.01 |
Parallel/SPI/I2C |
ST7066 |
|
10x4 |
BC1004A |
57x57 |
39x24.4 |
34.9x20.8 |
2.96x4.75 |
Parallel/SPI/I2C |
ST7066 |
|
12x2 |
BC1202A |
55.7x32.0 |
46x14.5 |
37.85x11.7 |
2.65x5.5 |
Parallel/SPI/I2C |
ST7066 |
|
16x1 |
BC1601A |
80x36 |
66x16 |
59.62x6.56 |
3.07x6.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x1 |
BC1601B |
85x28 |
66x16 |
59.62x6.56 |
3.07x6.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x1 |
BC1601D |
122x33 |
99x13 |
94.84x9.7 |
4.84x9.7 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602A |
80x36 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602B |
85x30 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602D |
85x36 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602E |
122x44 |
99x24 |
94.84x20 |
4.84x9.66 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602F |
85x32.6 |
66x16 |
85x32.6 |
2.96x5.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602G |
106.5x43.5 |
99x24 |
94.84x20 |
4.84x9.66 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602H |
84x44 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602K1 |
59x29.3 |
52x15 |
46.7x9.84 |
2.54x4.67 |
Parallel/SPI/I2C |
ST7066 |
|
16x2 |
BC1602L |
68x26.8 |
61x19 |
56.2x14.2 |
2.96x6.68 |
Parallel/SPI/I2C |
ST7066 |
|
16x4 |
BC1604A |
87x60 |
62x26 |
56.2x20.8 |
2.95x4.75 |
Parallel/SPI/I2C |
ST7066 |
|
20x2 |
BC2002A |
116x37 |
85x18.6 |
73.5x11.5 |
3.2x5.55 |
Parallel/SPI/I2C |
ST7066 |
|
20x2 |
BC2002B |
180x40 |
149x23 |
142.8x20.64 |
6x9.66 |
Parallel/SPI/I2C |
ST7066 |
|
20x2 |
BC2002C |
146x43 |
123x23 |
118.84x18.97 |
6x9.66 |
Parallel/SPI/I2C |
ST7066 |
|
20x2 |
BC2002D |
80x36 |
66x16 |
60.7x11.5 |
2.56x5.56 |
Parallel/SPI/I2C |
ST7066 |
|
20x4 |
BC2004A |
98x60 |
77x25.2 |
70.4x20.8 |
2.95x4.75 |
Parallel/SPI/I2C |
ST7066 |
|
20x4 |
BC2004B |
146x62.5 |
123.5x43 |
118.84x18.97 |
4.84x9.22 |
Parallel/SPI/I2C |
ST7066 |
|
20x4 |
BC2004C |
118x43 |
77x25.2 |
70.4x20.8 |
2.95x4.75 |
Parallel/SPI/I2C |
ST7066 |
|
20x4 |
BC2004D |
77x47 |
60x22 |
55.1x17.56 |
2.3x4.03 |
Parallel/SPI/I2C |
ST7066 |
|
24x2 |
BC2402A |
118x36 |
94.5x16 |
88.3x11.5 |
3.2x5.55 |
Parallel/SPI/I2C |
ST7066 |
|
40x2 |
BC4002A |
182x33.5 |
154.4x16.5 |
147.5x11.5 |
3.2x5.55 |
Parallel/SPI/I2C |
ST7066 |
|
40x4 |
BC4004A |
190x54 |
147x29.5 |
140.45x23.16 |
2.78x4.89 |
Parallel/SPI/I2C |
ST7066 |
GRAPHIC LCD
MONOCHROME LCD
Graphic LCD is intended for images, letters and numbers.
Each pixel can be controlled independently. UJ Light offers
a broad range from 122x32 and 128x64 through 160x128, 2
40x128 and 320x240 formats.
• COB and SMT graphic modules
• Multiple resolutions and duty ratios
• Parallel / SPI options on selected models
• Industrial, medical, POS and automotive applications
MONOCHROME LCD / GRAPHIC LCD
|
Display Format |
Model No. |
Outline Dimension (mm) |
View Area (mm) |
Active Area (mm) |
Duty |
Interface |
IC Part No. or Compatible with Controller |
|
122x32 |
BG12232A |
84x44 |
60x18 |
53.64x15.64 |
1/32 |
Parallel |
SED 1520 |
|
122x32 |
BG12232A1 |
84x44 |
60x18 |
53.64x15.64 |
1/32 |
Parallel |
SED 1520 |
|
122x32 |
BG12232B |
65.8x27.1 |
60.5x18.5 |
53.64x15.64 |
1/32 |
Parallel |
SED 1520 |
|
122x32 |
BG12232D |
80x36 |
60x18 |
53.64x15.64 |
1/32 |
Parallel |
SED 1520 |
|
122x32 |
BG12232D1 |
80x36 |
60x18 |
53.64x15.64 |
1/32 |
Parallel |
SED 1520 |
|
122x32 |
BG12232E1 |
68x26.8 |
61x19 |
56.08x16.28 |
1/32 |
Parallel |
SED 1520 |
|
98x32 |
BG9832B |
52x44 |
46x18.5 |
43.08x15.64 |
1/32 |
Parallel |
SED 1520 |
|
128x64 |
BG12864A |
93x70 |
72x40 |
66.52x33.24 |
1/64 |
Parallel |
NT7107/NT7108 |
|
128x64 |
BG12864A2 |
93x70 |
72x40 |
66.52x33.24 |
1/64 |
Parallel |
NT7107/NT7108 |
|
128x64 |
BG12864B |
93x70 |
72x40 |
66.52x33.24 |
1/32 |
Parallel/SPI |
ST7920 |
|
128x64 |
BG12864C |
80x70 |
72x40 |
66.52x33.24 |
1/64 |
Parallel |
NT7107/NT7108 |
|
128x64 |
BG12864C1 |
78x70 |
62x44 |
56.3x38.38 |
1/64 |
Parallel |
NT7107/NT7108 |
|
128x64 |
BG12864D |
78x70 |
62x44 |
56.3x38.38 |
1/64 |
Parallel |
T6963 |
|
128x64 |
BG12864E |
75x52.7 |
60x32.6 |
55x27.48 |
1/64 |
Parallel |
NT7107/NT7108 |
|
128x64 |
BG12864F |
87x70 |
72x40 |
66.52x33.24 |
1/64 |
Parallel |
T6963 |
|
128x64 |
BG12864H |
54x50 |
43.5x29 |
40.92x26.92 |
1/64 |
Parallel |
NT7107/NT7108 |
|
128x64 |
BG12864J |
75x45.8 |
61x38 |
56.3x33.26 |
1/64 |
Parallel |
NT7107/NT7108 |
|
160x32 |
BG16032A |
116x37 |
85x18.6 |
79.95x15.95 |
1/64 |
Parallel/SPI |
ST7920/Built_in FONT |
|
160x80 |
BG16080A |
100x54 |
72.3x37.8 |
67.17x33.5 |
1/80 |
Parallel |
T6963 |
|
160x112 |
BG160112A |
94x80 |
74x54 |
68.77x48.13 |
1/112 |
Parallel |
T6963 |
|
160x128 |
BG160128B |
129x102 |
101x82 |
92.76x74.22 |
1/128 |
Parallel |
T6963 |
|
192x64 |
BG19264A |
100x60 |
84x31 |
78.67x26.18 |
1/64 |
Parallel |
NT7107/NT7108 |
|
240x64 |
BG24064A |
180x65 |
133x39 |
127.16x33.88 |
1/64 |
Parallel |
T6963 |
|
240x128 |
BG240128A |
170x103.5 |
132x76 |
119.97x63.97 |
1/128 |
Parallel |
None |
|
240x128 |
BG240128B2 |
144x104 |
114x64 |
107.98x57.58 |
1/128 |
Parallel |
T6963 |
|
240x128 |
BG240128BA |
144x104 |
114x64 |
107.98x57.58 |
1/128 |
Parallel |
T6963 |
|
240x128 |
BG240128G |
170x103.5 |
132x76 |
119.97x63.97 |
1/128 |
Parallel |
T6963 |
|
320x240 |
BG320240A |
166.8x109 |
122x92 |
115.18x86.38 |
1/240 |
Parallel |
None |
|
320x240 |
BG320240B1 |
148x120.24 |
120.14x92.14 |
115.18x86.38 |
1/240 |
Parallel |
RA8835 |
|
320x240 |
BG320240F |
166.8x109 |
122x92 |
115.18x86.38 |
1/240 |
Parallel |
RA8835 |
|
320x240 |
BG320240G |
160x109 |
122x92 |
115.18x86.38 |
1/240 |
Parallel |
RA8806 |
COG LCD
MONOCHROME LCD
COG (Chip on Glass) mounts the IC directly on the glass substrate.
UJ Light describes COG as a lightweight, simplified packaging
approach suitable for fine-pitch designs and compact display modules.
Key Features / Positioning
• Compact and lightweight construction
• Fine-pitch packaging
• Character and graphic formats
• I²C / SPI / parallel interfaces depending on model
MONOCHROME LCD / COG LCD
|
Display Format |
Model No. |
Outline Dimension (mm) |
View Area (mm) |
Active Area (mm) |
Duty |
Interface |
IC Part No. or Compatible with Controller |
|
16x02 |
BO1602E |
103.0x36.0 |
99x24 |
94.84x20 |
16 |
I2C |
ST7032i |
|
20x02 |
BO2002A |
89.0x30.6 |
85x18.6 |
73.5x11.5 |
16 |
I2C |
ST7036i |
|
98x64 |
BO9864B2 |
34x34 |
31x22.5 |
27.42x21.1 |
64 |
I2C |
ST7578i |
|
128x64 |
BO12864B2 |
72x47 |
68x36 |
63.97x31.97 |
64 |
Parallel |
ST7565 |
|
128x64 |
BO12864D2 |
52x42 |
48x31 |
44.77x27.49 |
64 |
Parallel |
ST7571 |
|
128x64 |
BO12864E3 |
80x54 |
70.7x38.8 |
66.52x33.24 |
64 |
Parallel/SPI |
ST7567 |
|
128x64 |
BO12864E4 |
80x54 |
70.7x38.8 |
66.52x33.24 |
64 |
Parallel |
ST7567 |
|
128x64 |
BO12864E5 |
80x54 |
70.7x38.8 |
66.52x33.24 |
64 |
Parallel/SPI |
ST7567 |
|
128x64 |
BO12864H |
34x28.72 |
29.58x17.98 |
25.58x15.98 |
64 |
Parallel/SPI |
ST7565 |
|
128x64 |
BO12864H1 |
34x28.72 |
29.58x17.98 |
25.58x15.98 |
64 |
SPI |
ST7567S |
|
128x64 |
BO12864I |
56x47 |
52x33.5 |
47.34x26.86 |
64 |
Parallel/SPI |
ST7565 |
|
128x64 |
BO12864K |
55.2x39.8 |
45.2x27 |
40.92x24.28 |
64 |
Parallel/SPI |
ST7565R |
|
128x64 |
BO12864L |
62.8x49 |
57.6x36.7 |
53.73x31.97 |
64 |
SPI |
ST7567 |
MULTI-LANGUAGE LCD
MONOCHROME LCD
Multi-language LCD modules are designed for applications that require
multiple character sets or language support in a single display solution.
|
|
• Multi-language character support
• Graphic dot-matrix formats
• ST7920 / RA8806-based options
• Suitable for international products
MONOCHROME LCD / MULTI-LANGUAGE LCD
|
Display Format |
Model No. |
Outline Dimension (mm) |
View Area (mm) |
Active Area (mm) |
Duty |
Interface |
IC Part No. or Compatible with Controller |
|
128x64 |
BG12864B |
93x70 |
72x40 |
66.52x33.24 |
1/32 |
Parallel / SPI |
ST7920 |
|
160x32 |
BG16032A |
116x37 |
85x18.6 |
79.95x19.95 |
1/32 |
Parallel / SPI |
ST7920 |
|
320x240 |
BG320240G |
160x109 |
122x92 |
115.18x86.38 |
1/32 |
Parallel |
RA8806 |
CHARACTER OLED
OLED
Character OLED is intended for text/character display.
UJ Light offers standard character formats and positions
OLED as an upgrade path from conventional STN displays,
with high brightness and low power consumption.
|
• 4/8-bit and serial interface options
• 6800 / I²C options on selected models
• White and yellow OLED options
• Built-in font/controller options
OLED / CHARACTER OLED
|
Display Format |
Model No. |
Module Size |
Active Area |
Dot Pitch (mm) |
Interface |
Compatible with Controller |
|
16x02 |
UL1602AU1 |
80.0x30.0 |
56.22x11.52 |
2.97x5.57 |
4/8 bit / I2C |
HD44780 |
|
16x02 |
UL1602EU |
122.0x44.0 |
70.42x20.82 |
2.97x4.75 |
6800 / 8080 / SPI / I2C |
IST1305 |
|
20x02 |
UL2002AU2 |
116.0x37.0 |
73.52x11.52 |
3.22x5.57 |
4/8 bit / I2C |
HD44780 |
|
20x04 |
UL2004AU3 |
98.0x60.0 |
70.42x20.82 |
2.97x4.75 |
4/8 bit / I2C |
HD44780 |
GRAPHIC OLED
OLED
Graphic OLED modules provide pixel-addressable display
capability with high contrast, wide viewing angle and fast
response. UJ Light offers multiple resolutions and
interface/controller combinations.
|
• High contrast and wide viewing angle
• Fast response
• Parallel / SPI / I²C options
• Industrial temperature options on selected models
OLED / GRAPHIC OLED
|
Inch |
Display Format |
Model No. |
Outline Dimension (mm) |
Viewing Area (mm) |
Active Area (mm) |
Dot Size (mm) |
Interface |
Compatible with Controller |
|
0.96 |
64x128 |
BL64128A |
14.86x28.4 |
11.862x22.74 |
10.924x21.74 |
0.037x0.15 |
Parallel / SPI |
SSD1357 |
|
1.04 |
128x32 |
BL12832B |
30.4x14.5 |
29.4x9.4 |
25.58x6.38 |
0.18x0.18 |
SPI |
SSD1305 |
|
1.04 |
128x32 |
BL12832B1 |
30.4x14.5 |
29.4x9.4 |
25.58x6.38 |
0.18x0.18 |
SPI |
SSD1305 |
|
1.04 |
128x32 |
BL12832B2 |
30.4x14.5 |
29.4x9.4 |
25.58x6.38 |
0.18x0.18 |
SPI |
SSD1305 |
|
0.91 |
128x32 |
BL12832D |
40x11.5 |
24.38x7.58 |
|
0.155x0.155 |
SPI |
SSD1305 |
|
1.51 |
128x56 |
BL12856A |
42.04x63.2 |
41.04x23.03 |
35.05x15.32 |
0.254x0.254 |
Parallel / SPI / I2C |
SSD1309 |
|
2.42 |
128x64 |
BL12864G2 |
75.0x52.7 |
60x30 |
55.01x27.49 |
0.4x0.4 |
Parallel / SPI / I2C |
SPD0301 |
|
1.54 |
128x64 |
BL12864S |
44.0x38.0 |
37.052x19.516 |
35.05x17.51 |
0.254x0.254 |
SPI / I2C |
SPD0301 |
|
1.32 |
128x96 |
BL12896A |
33.0x26.8 |
32x23.8 |
26.86x20.14 |
0.19x0.19 |
Parallel / SPI |
SSD1329 |
|
1.27 |
128x96 |
BL12896D |
33.7x26.9 |
32.7x23.5 |
25.708x19.28 |
0.047x0.185 |
Parallel / SPI |
SSD1351U3 |
|
1.40 |
136x160 |
BL136160A |
32.70x54.85 |
32.07x25.1 |
27.18x23.1 |
0.15x0.15 |
SPI |
SH1108 |
|
1.77 |
160x128 |
BL160128A |
42.7x33.4 |
30.012x37.015 |
35.015x28.012 |
0.048x0.199 |
SPI |
SSD1353 |
|
3.21 |
256x64 |
BL25664B |
87.4x28.5 |
81.084x21.756 |
79.084x19.756 |
0.289x0.289 |
Parallel |
SSD1322 |
|
5.50 |
256x64 |
BL25664D |
146.0x65.00 |
145x33.89 |
135.65x33.89 |
0.5x0.5 |
Parallel / SPI |
SSD1322 |
|
2.7 |
256x128 |
BL256128A |
71.86x73.00 |
63.41x32.69 |
61.42x30.7 |
0.5x0.5 |
Parallel / SPI |
SSD1363 |
|
3.83 |
320x132 |
BL320132A |
145.52x41.672 |
90.90x38.072 |
89.9x37.072 |
0.261x0.261 |
SPI |
SSD1320Z |
COLOR OLED
OLED
UJ Light Color OLED modules are intended for compact
display applications. The website describes COF/COG panel
structures and applications including industrial instruments,
medical products, measuring instruments, appliances,
automation, IoT and wearables.
|
|
Key Features / Positioning
• Color graphical display
• Compact COG/COF structures
• Industrial and medical applications
• BL160128A uses SSD1353 with 262K colors
STANDARD TFT LCD
TFT LCD
Standard TFT LCD modules cover small to mid-size displays,
with resolutions and interfaces selected for embedded and
industrial designs. The current product list spans
approximately 0.96-inch to8-inch standard modules.
|
|
Key Features / Positioning
• 0.96-inch to 8-inch range in current list
• RGB, parallel and SPI options
• RTP / CTP options on selected models
• Industrial and embedded display applications
TFT LCD / STANDARD TFT LCD
|
Display Format |
Model No. |
Size (inch) |
Outline Dimension (mm) |
Active Area (mm) |
Brightness (cd/m2) |
View Angle |
Interface |
IC Part No. or Compatible with Controller |
Touch Screen |
|
80x160 |
BTF0096A-GHN |
0.96 |
13.5x27.95x1.5 |
10.8x21.7 |
400 |
All |
SPI |
ST7735S |
|
|
128x160 |
BTF0177A-EHN |
1.77 |
34.7x46.7x2.5 |
28.03x35.04 |
320 |
6H |
Parallel |
ST7735S |
|
|
240x320 |
BTF02Z0A-JBN |
2 |
35.7x51.2x2.4 |
30.6x40.8 |
250 |
ALL |
Parallel / SPI |
ST7789V |
|
|
240x320 |
BTF024A-EHN |
2.4 |
42.72x60.26x2.55 |
36.72x48.96 |
350 |
6H |
Parallel / SPI |
ST7789V |
|
|
240x320 |
BTF028B-EHN |
2.83 |
50x69.2x2.2 |
43.2x57.6 |
280 |
6H |
Parallel |
ST7789V |
|
|
320x240 |
BTF035A-AWN |
3.5 |
76.9x63.9x3.2 |
70.08x52.56 |
320 |
12H |
RGB+SPI |
HX8238D |
|
|
320x240 |
BTF035A-AWR |
3.5 |
76.9x63.9x4.35 |
70.08x52.56 |
250 |
12H |
RGB+SPI |
HX8238D |
RTP |
|
320x240 |
BTF035A-AWC |
3.5 |
76.9x63.9x5.1 |
70.08x52.56 |
250 |
12H |
RGB+SPI |
HX8238D |
CTP |
|
320x240 |
BTF035B-BWN |
3.5 |
76.9x63.9x3.2 |
70.08x52.56 |
450 |
6H |
RGB+SPI |
SSD2119 |
|
|
320x240 |
BTF035B-BWR |
3.5 |
76.9x63.9x4.3 |
70.08x52.56 |
360 |
12H |
RGB+SPI |
SSD2119 |
RTP |
|
480x272 |
BTF043A-AWN |
4.3 |
105.5x67.2x2.90 |
95.04x53.86 |
550 |
12H |
RGB |
ILI6480BQ |
|
|
480x272 |
BTF043A-AWR |
4.3 |
105.5x67.2x4.1 |
95.04x53.86 |
450 |
12H |
RGB |
ILI6480BQ |
RTP |
|
480x272 |
BTF043B-AWN |
4.3 |
105.5x67.2x2.92 |
95.04x53.86 |
300 |
12H |
RGB |
ILI6480BQ |
|
|
480x272 |
BTF043B-AWR |
4.3 |
105.5x67.2x4.1 |
95.04x53.86 |
250 |
12H |
RGB |
ILI6480BQ |
RTP |
|
480x272 |
BTF043C-AUN |
4.3 |
105.5x67.2x2.92 |
95.04x53.86 |
550 |
ALL |
RGB |
SC7283 |
|
|
800x480 |
BTF050A-AWN |
5 |
120.7x75.8x2.8 |
108.0x64.8 |
450 |
12H |
RGB |
ILI5960+ILI6122 |
|
|
800x480 |
BTF050A-AWR |
5 |
120.7x75.8x4.0 |
108.0x64.8 |
360 |
12H |
RGB |
ILI5960+ILI6122 |
RTP |
|
640x480 |
BTF056A-AHN |
5.6 |
126.5x100x5.7 |
112.896x84.672 |
350 |
6H |
18bits RGB |
|
|
|
640x480 |
BTF057A-AHN |
5.7 |
127.0x98.43x5.8 |
115.2x86.4 |
700 |
6H |
18bits RGB |
HX8250A01+HX8678A |
|
|
640x480 |
BTF057A-AHR |
5.7 |
127.0x98.43x9.2 |
115.2x86.4 |
560 |
6H |
18bits RGB |
HX8250A+HX8678B |
RTP |
|
800x480 |
BTF070A-AWN |
7 |
164.8x99.8x5.5 |
154.08x85.92 |
420 |
12H |
RGB |
EK9713+EK73002 |
|
|
800x480 |
BTF070A-AWR |
7 |
164.8x99.8x7.0 |
154.08x85.92 |
350 |
12H |
RGB |
EK9713+EK73002 |
RTP |
|
800x480 |
BTF070A-AWC |
7 |
164.8x99.8x7.5 |
154.08x85.92 |
350 |
12H |
RGB |
EK9713+EK73002 |
|
|
800x480 |
BTF070B-ABR |
7 |
164.8x99.8x4.55 |
153.84x85.92 |
350 |
12H |
RGB |
|
CTP |
|
800x600 |
BTF080A-AWN |
8 |
183x141x6.2 |
162.0x121.5 |
500 |
12H |
RGB |
HX8264-D/HX8696-A |
|
UART TFT LCD
TFT LCD
UART TFT LCD modules integrate a display controller/HMI
environment so that a host MCU can communicate through
UART/RS232 rather than directly driving the TFT timing.
|
|
Key Features / Positioning
• 2.8-inch to 10.1-inch class modules
• UART / RS232 interface
• Touch options on selected models
• Audio/video playback functions on selected models
TFT LCD / UART TFT LCD
|
|
|
inch |
Display Format |
Model No. |
Outline Dimension (mm) |
Active Area (mm) |
Typ.Brightness (cd/m2) |
View Angle |
Interface |
IC Part No. |
TOUCH PANEL |
Audio/ Video |
|
2.8 |
320x240 |
BTU028-3224TL1 00 |
96.6x55.94 |
57.6x43.2 |
200 |
6H |
UART/RS232 |
ARM M4 |
RTP |
WAV |
|
3.2 |
320x240 |
BTU032-3224TL1 00 |
96.6x55.94 |
64.8x48.6 |
290 |
6H |
UART/RS232 |
ARM M4 |
RTP |
WAV |
|
4.3 |
480x272 |
BTU043-4827IL00 0 |
120x74 |
95.04x53.86 |
340 |
ALL |
UART/RS232 |
ARM 9 |
RTP/CTP |
WAV/MP3/MP4 |
|
5 |
800x480 |
BTU050-8048IL00 0 |
136.9x84 |
108x64.8 |
550 |
ALL |
UART/RS232 |
ARM 9 |
RTP/CTP |
WAV/MP3/MP4 |
|
5.6 |
640x480 |
BTU056-6448TL3 00 |
160x109 |
112.9x84.67 |
350 |
ALL |
UART/RS232 |
ARM 9 |
RTP/CTP |
WAV/MP3/MP4 |
|
7 |
800x480 |
BTU070-8048TL0 00 |
181x108 |
154.08x85.92 |
700 |
12H |
UART/RS232 |
ARM 9 |
RTP/CTP |
WAV/MP3/MP4 |
|
10.1 |
1024x600 |
BTU101-1060TL0 00 |
235x143 |
222.72x125.28 |
360 |
6H |
UART/RS232 |
ARM 9 |
RTP/CTP |
WAV/MP3/MP4 |
HDMI TFT LCD
TFT LCD
HDMI TFT LCD modules provide a convenient display
interface for systems that already generate HDMI video.
The current UJ Light list includes 5-inch,7-inch and
10.1-inch-class resolutions.
|
|
Key Features / Positioning
• HDMI input architecture
• 800x480 / 1024x600 / 1280x800 classes
• Simple PC / embedded video connection
• Suitable for industrial and embedded display applications
TFT LCD / HDMI TFT LCD
|
Display Format |
Model No. |
|
800xRGBx480 |
UTH050B-DFC$ |
|
1024xRGBx600 |
UTH070C-DFC$ |
|
1280xRGBx800 |
UTH101B-DFC$ |
AD BOARD
TFT LCD ACCESSORIES
An AD Board is a TFT LCD controller board that interfaces
between a TFT panel and PC systems. UJ Light states that
its AD boards can accept VGA, HDMI, DVI or DisplayPort
inputs and can be customized with cable assemblies.
|
|
Key Features / Positioning
• VGA / HDMI / DVI / DP inputs
• TFT controller / interface conversion
• Customized cable assembly
• Industrial, medical, POS, railway, signage and kiosk applications
|
UJ LIGHT | 2026 PRODUCT SELECTION & SPECIFICATION GUIDE |
TFT LCD ACCESSORIES
A TFT transfer/converter board provides a connection
between a TFT panel and PCBA when their interfaces
are different or incompatible. UJ Light specifically
lists RGB-to-LVDS and HDMI-to-LVDS conversion solutions.
|
|
• RGB-to-LVDS conversion
• HDMI-to-LVDS conversion
• Compact converter-board format
• Useful for interface mismatch in TFT integration
E-PAPER DISPLAY
E-PAPER
E-Paper modules are suited to low-power static or infrequently
refreshed information display applications. UJ Light currently
lists five standard resolutions from 200x200 up to 648x480.
Key Features / Positioning
• Low-power information display
• Multiple standard resolutions
• SPI interface in current list
• Black/white and selected multi-color options
E-PAPER DISPLAY
|
Display Format |
Model No. |
Size (inch) |
Outline Dimension (mm) |
Active Area (mm) |
View Direction |
Color |
Interface |
IC Part No. or Compatible with Controller |
|
200x200 |
UA200200A-WRNN AN$ |
1.5 |
31.8x37.32x1.0 |
27x27 |
All |
W,B,R,Y |
SPI |
JD79660 |
|
122x250 |
UA122250A-WRNN AN$ |
2.13 |
29.2x59.2x1.0 |
23.7x48.55 |
All |
W,B |
SPI |
JD79656BA |
|
152x296 |
UA152296A-WRNN AN$ |
2.66 |
36.3x71.82x1.0 |
30.70x60.08 |
All |
W,B,R |
SPI |
SSD1680 |
|
176x264 |
UA176264A-WRNN AN$ |
2.7 |
45.8x70.42x1.0 |
38.19x57.29 |
All |
W,B |
SPI |
SSD1680 |
|
648x480 |
UA648480A-WRNN AN$ |
5.83 |
125.4x99.5x1.2 |
118.78x88.22 |
All |
W,B,R |
SPI |
JD79686BB |
FSC LCD
SPECIALTY LCD
FSC (Field Sequential Color) LCD is a custom color LCD approach that
does not require a conventional color filter. UJ Light describes positive and
negative modes, seven standard display colors and a field-sequential driving method.
Key Features / Positioning
• No conventional color filter
• Seven programmable display colors
• High contrast / vivid color
• Custom design with lower tooling/MOQ positioning
|
UJ LIGHT | 2026 PRODUCT SELECTION & SPECIFICATION GUIDE |
VATN LCD
SPECIALTY LCD
VATN (Vertically Aligned Twisted Nematic) LCD is a
negative-mode transmissive LCD technology.UJ Light
describes high contrast, deep black background,wider
viewing angle than TN and wide operating temperature.
Key Features / Positioning
• High contrast ratio stated as 1000:1
• Deep-black background
• Wide viewing angle
• -40°C to +85°C operating-temperature positioning
LED DISPLAYS
LED DISPLAY
UJ Light LED display modules combine LED display elements, PCB
and IC, with SPI interface options.The website highlights sunlight
readability, wide viewing angle and applications such as appliances,
clocks, counters and vehicle dashboards.
Key Features / Positioning
• SPI interface
• Sunlight readable
• Up to 178° viewing angle stated
• 7-segment, dot-matrix, digital and SMD display types
www.ujlight.com.tw | sales@ujlight.com | TEL: +886-3-5678-366
