Character OLED
Character OLED is meant to display text/ characters only.
For example, a 16X2 OLED would be capable of displaying 2 lines each having 16 Characters and a 20X2 OLED would display 4 lines with 20 characters each.
Bolymin is a leading manufacturer of character OLED modules in Taiwan. We offer many standard sizes, including 8x1 characters OLED, 8x2 characters OLED, 16x2 character OLED, 16x4 characters LCD, 20x2 characters LCD, 20x4 characters OLED, 40x2 characters OLED and also provide customized OLED.
We cater to customers across the globe and offer various IC options of character fonts including English Font, Japanese Font, European Font, Cyrillic Font, Chinese (Simplified), Chinese (traditional), Arabic Font, Hebrew Font etc.
Bolymin Character OLED is available in White
and Yellow color options and offer Parallel or serial MPU interface (4 / 8-bit
6800 series parallel and I²C interface). Customers can easily upgrade their current STN displays
to OLED as it offers better brightness, and consume less power.
Bolymin Character OLED is suitable for meter devices, TPMS, POS system,
handheld instruments, automotive application, medical instrument, etc.
|
Display Format |
Photo |
Model No. |
Module Size |
Active Area |
Dot Pitch (mm) |
Interface |
Compatible with Controller |
 |
80.0x30.0 |
56.22x11.52 |
2.97x5.57 |
4/8 bit / I2C |
HD44780/ST7066U |
||
 |
85.0x30.0 |
56.22x11.52 |
2.97x5.57 |
4/8 bit / I2C |
HD44780/ST7066U |
||
 |
85.0x36.0 |
56.22x11.52 |
2.97x5.57 |
4/8 bit / I2C |
HD44780/ST7066U |
||
 |
84.0x44.0 |
56.22x11.52 |
2.97x5.57 |
4/8 bit / I2C |
HD44780/ST7066U |
||
 |
116.0x37.0 |
73.52x11.52 |
3.22x5.57 |
4/8 bit / I2C |
HD44780/ST7066U |
||
|
98.0x60.0 |
70.42x20.82 |
2.97x4.75 |
4/8 bit / I2C |
HD44780/ST7066U
|

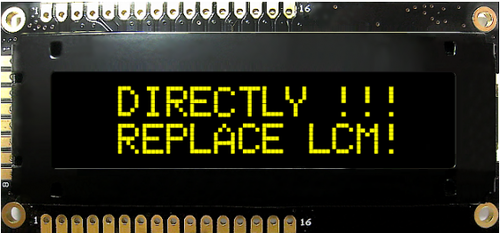

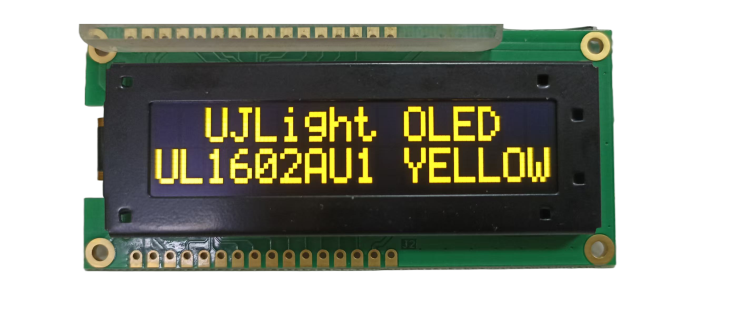

16x2 COB OLED Character Display
Character COG OLED display 16x2 has built-in IC and compatible with ST7066U, and 4 sets of CGROM (hardware selectable) fonts; English/Japanese, English/ Cyrillic, English/ European I and II.
It come with standard 4/8-bit 6800 series parallel interface and provides option of I2C interface. It can directly replace you 16x02 character LCM.
The module dimension 80.0 x 30.0 mm and active area is 56.22 x 11.52 mm.
It is available yellow and white options.
16x2 COB OLED Character Display
Character COG OLED display 16x2 has built-in IC and compatible with ST7066U, and 4 sets of CGROM (hardware selectable) fonts; English/Japanese, English/ Cyrillic, English/ European I and II.
It come with standard 4/8-bit 6800 series parallel interface and provides option of I2C interface. It can directly replace you 16x02 character LCM.
The module dimension 85.0 x 30.0 mm and active area is 56.22 x 11.52 mm.
It is available yellow and white options and wide Operating temperatures: -40°C to 80°C.

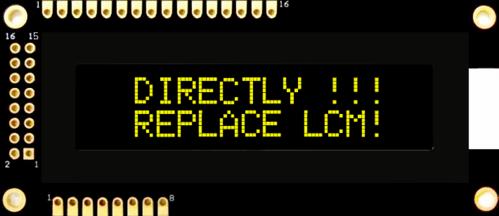

16x2 COB OLED Character Display
Character COG OLED display 16x2 has built-in IC and compatible with ST7066U, and 4 sets of CGROM (hardware selectable) fonts; English/Japanese, English/ Cyrillic, English/ European I and II.
It come with standard 4/8-bit 6800 series parallel interface and provides option of I2C interface. It can directly replace you 16x02 character LCM.
The module dimension 85.0 x 36.0 mm and active area is 56.22 x 11.52 mm.
It is available yellow and white options and wide Operating temperatures: -40°C to 80°C.
5.0V single power supply (Typ.)

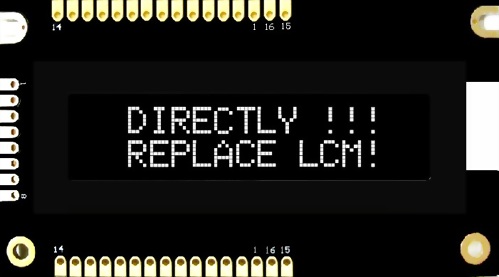

16x2 COB OLED Character Display
Character COG OLED display 16x2 has built-in IC and compatible with ST7066U, and 4 sets of CGROM (hardware selectable) fonts; English/Japanese, English/ Cyrillic, English/ European I and II.
It come with standard 4/8-bit 6800 series parallel interface and provides option of I2C interface. It can directly replace you 16x02 character LCM.
The module dimension 84.0 x 44.0 mm and active area is 56.22 x 11.52 mm.
It is available yellow and white options and wide Operating temperatures: -40°C to 80°C.
5.0V single power supply (Typ.)

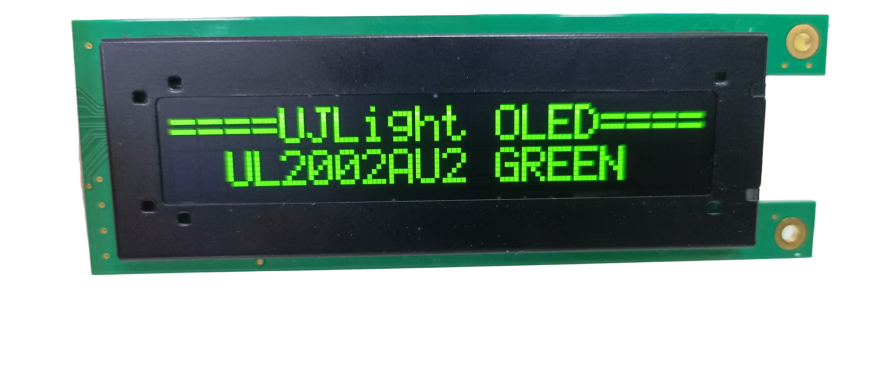

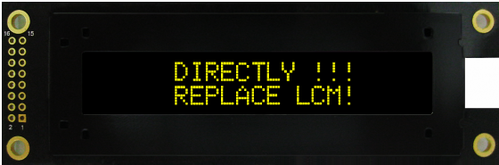

20x2 COB OLED Character Display
Character COG OLED display 16x2 has built-in IC and compatible with ST7066U, and 4 sets of CGROM (hardware selectable) fonts; English/Japanese, English/ Cyrillic, English/ European I and II.
It come with standard 4/8-bit 6800 series parallel interface and provides option of I2C interface. It can directly replace you 16x02 character LCM.
The module dimension 116.0 x 37.0 mm and active area is 73.52 x 11.52 mm.
It is available yellow and white options and wide Operating temperatures: -40°C to 80°C.
5.0V single power supply (Typ.)

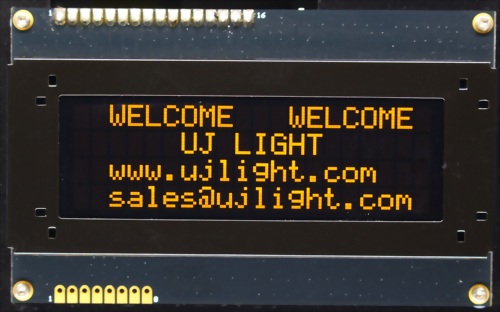

20x4 COG OLED Character Display
Character COG OLED display 20x4 has built-in IC and compatible with ST7066U, and 4 sets of CGROM (hardware selectable) fonts; English/Japanese, English/ Cyrillic, English/ European I and II.
It come with standard 4/8-bit 6800 series parallel interface and provides option of I2C interface. It can directly replace you 20x04 character LCM.
The module dimension 98.0 x 60.0 mm and active area is 70.42 x 20.82 mm.
It is available yellow and white options and wide Operating temperatures: -40°C to 80°C.
5.0V single power supply (Typ.)
