• 3.50 inch 320x240 TFT Display, BTF035A-AWN$

3.50 inch 320x240 TFT Display

● 3.5" TFT LCD
● Resolution:320*240
● Display Type:TFT/Transmissive/Positive
● Interface Type:24BIT RGB+SPI
● Drive IC:HX8238D
● Surface Luminance:300cd/m²
● Top:-20℃~70℃
Model : BTF035A-AWN$


BTF035A-AWN$

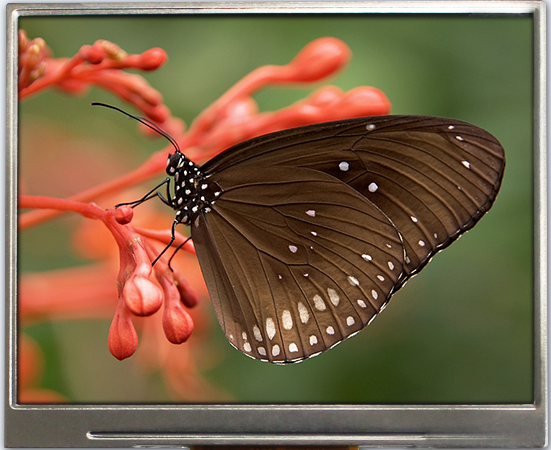

BTF035A-AWN$ is a 3.5" TFT LCD with 320*240 RGB resolution.

It is a trasmissive Positive type TFT with 24-BIT RGB + SPI Interface.

View angle for TFT is “6H” and brightness is 300 cd/m²

Drive IC used in TFT is HX8238D.

Operating temperature range is from -20℃ ~ +70℃

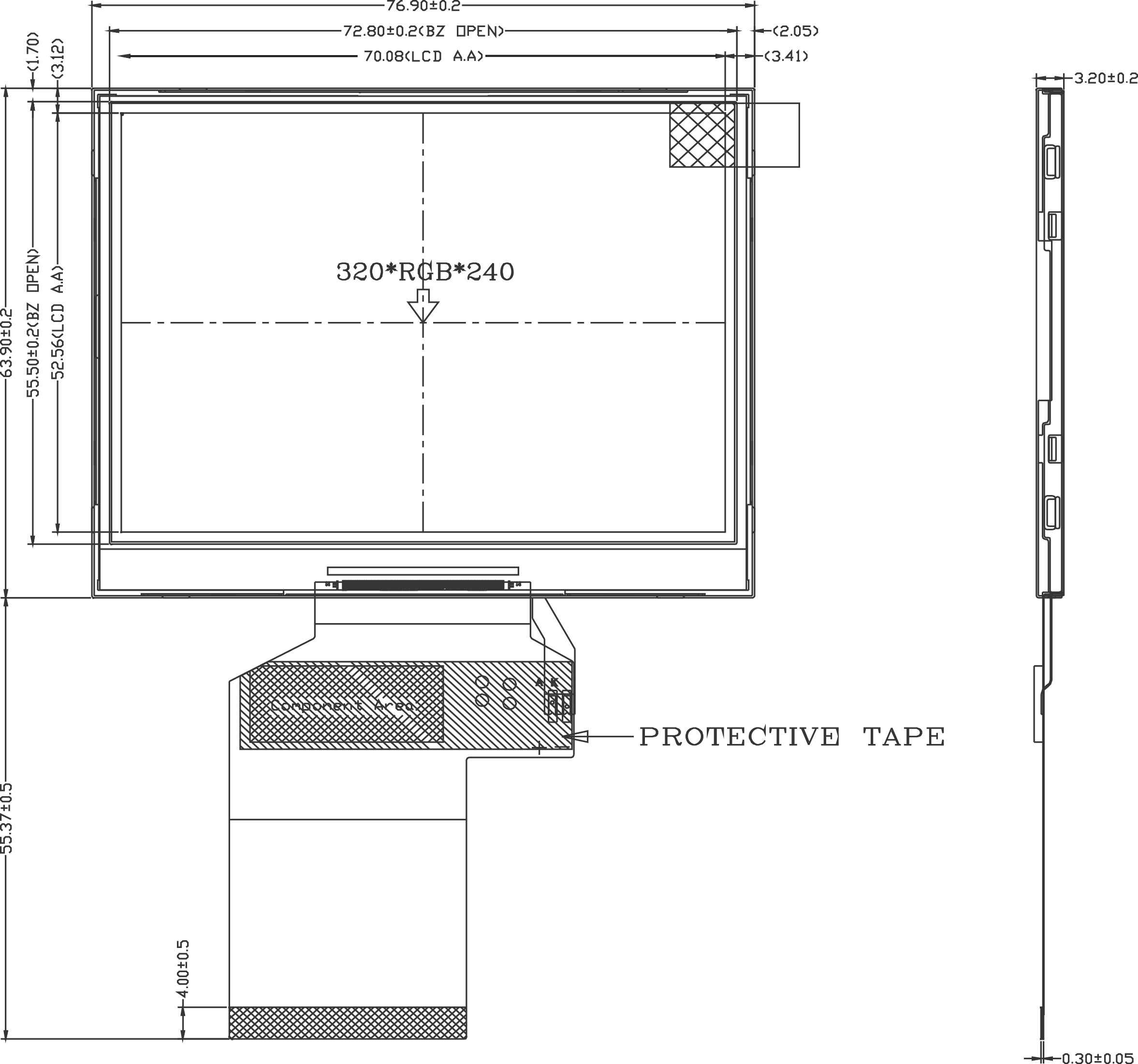

● Mechanical Data

1.    Module(WxHxT)(mm):76.9*63.9*3.2

2.    Active Area(mm):70.08*52.56

3.    LED Numbers:6 LEDs




● Interface Pin Function

No

Symbol

Description

1

LEDK

Cathode of LED backlight

2

LEDK

Cathode of LED backlight

3

LEDA

Anode of LED backlight

4

LEDA

Anode of LED backlight

5

NC

No connect

6

NC

No connect

7

NC

No connect

8

RESET

RESET PIN

9

SPENA

Chip select of serial interface

10

SPCLK

Clock pin of serial interface

11

SPDAT

Data input pin of serial interface

12~19

B0~B7

Blue data bus

20~27

G0~G7

Green data bus

28~35

R0~R7

Red data bus

36

HSYNC

Horizontal sync signal ; negative polarity

37

VSYNC

Vertical sync signal ; negative polarity

38

DCLK

Clock signal ; latching data at the falling edge

39

NC

Touch panel control PIN : XL

40

NC

Touch panel control PIN : YU

41

VDD

Power supply

42

VDD

Power supply

43

NC

No connect

44

NC

No connect

45

NC

No connect

46

NC

No connect

47

NC

No connect

48

SEL2

Interface mode select(*Note)

49

SEL1

50

SEL0

51

NC

No connect

52

DEN

Display enable pin from controller

53

GND

Power ground

54

GND

Power ground
