• 3.50 inch 320x240 mTFT Display, BT035DGGAHHp$

3.50 inch 320x240 mTFT Display

● 3.5" TFT LCD Module.
● Resolution:320*RGB*240
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT810
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 150 cd/m²(min)
Model : BT035DGGAHHp$

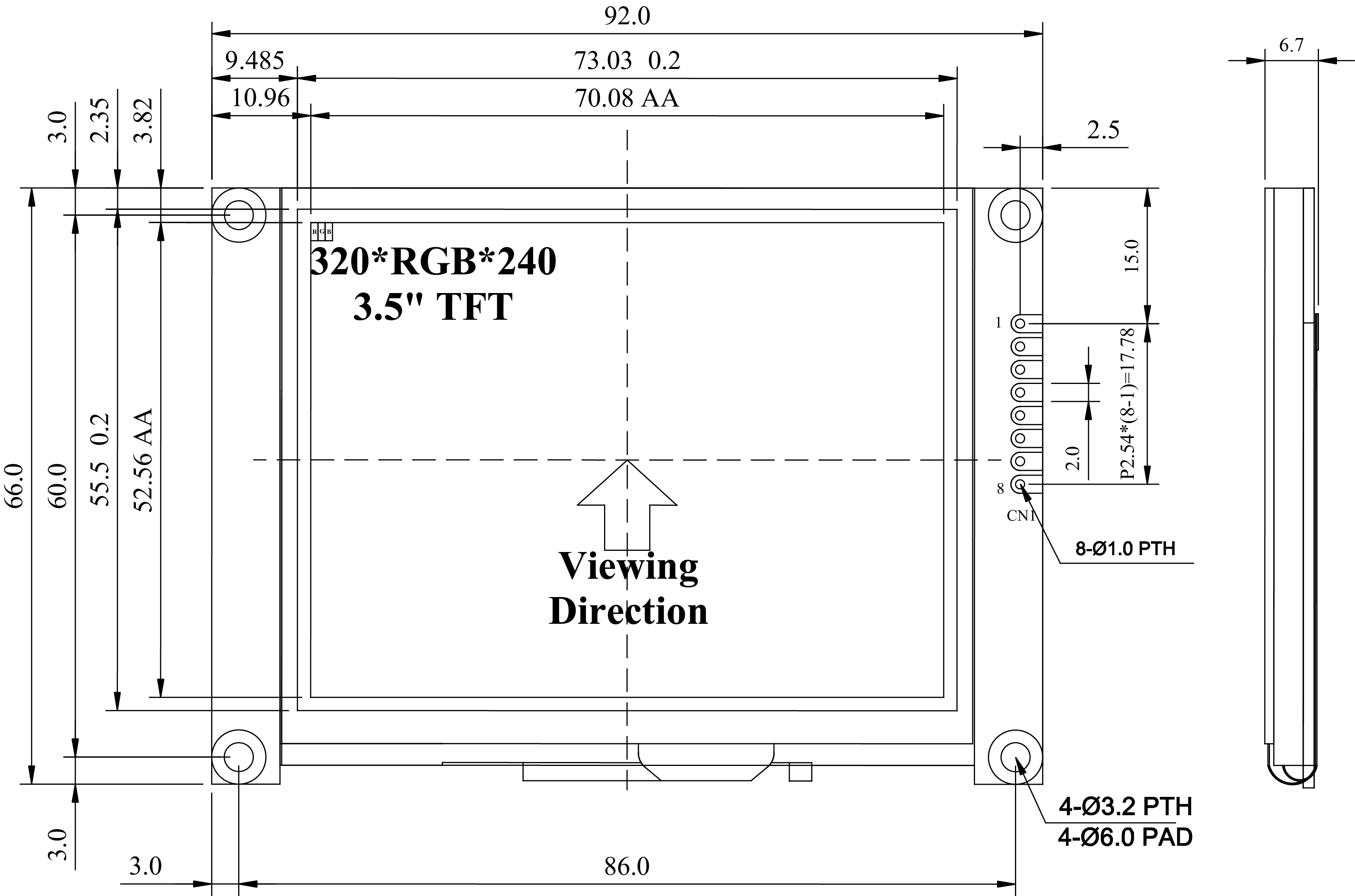

● Mechanical Data

1.    Module(WxHxT)(mm):92.0*66.0*6.7

2.    Active Area(mm):70.08*52.56

3.    LED Numbers: 6 LEDs



● Pin Assignment

Pin No.

Symbol

I/O Voltage

Function

1

VDD

-

Power supply voltage for logic.

2

VSS

-

Ground.

3

SCL

3.3V

SPI clock input.

4

MISO

3.3V

SPI MISO output.

5

MOSI

3.3V

SPI MOSI input.

6

/CS

3.3V

Chip select signal. Active low.

7

/PD

3.3V

Chip power down mode
control input,active low.

8

/INT

3.3V

Interrupt to host,active low.
