• 3.50 inch 320x240 mTFT Display, BTC035CG-GFC$

3.50 inch 320x240 mTFT Display

● 3.5" IPS TFT LCD Module
● Resolution:320*RGB*240
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:4-Wire SPI
● Controller IC: FT811
● Top:-20℃~70℃
● Support Capacitive Touch Panel
Model : BTC035CG-GFC$

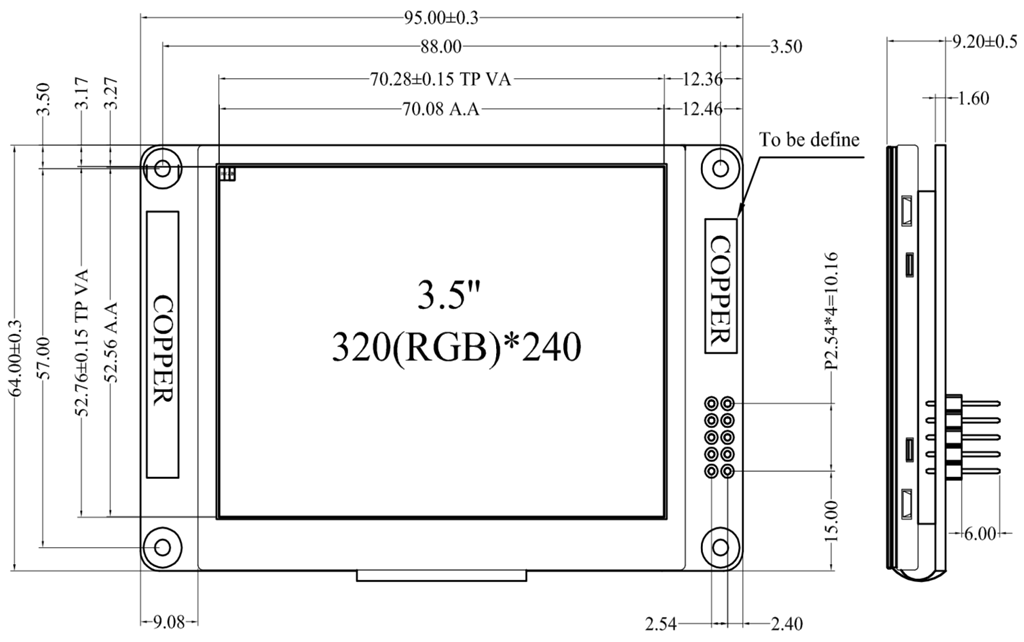

● Mechanical Data

1.    Module(WxHxT)(mm):95.0*64.0*9.2

2.    Active Area(mm):70.08*52.56

3.    LED Numbers: 6 LEDs



● Pin Assignment

CN1

Pin No.

Symbol

Type

Function

1

VSS

P

Ground.

2

VDD

P

Power supply voltage.

3

LCM_RST

I

Chip power down mode control input, active low.

4,5

NC

-

No connection.

6

INT

O

Interrupt to host, open drain output (default) or push-pull output, active low.

7

CSFT

I

Chip select signal. Active low.

8

MOSI

I

SPI MOSI input.

9

MISO

O

SPI MISO output.

10

SCK

I

SPI clock input.


CN2

Pin No.

Symbol

Type

Function

1,2,19

VSS

P

Ground.

3,4,20

VDD

P

Power supply voltage.

5~12

NC

-

No connection.

13

LCM_RST

I

Chip power down mode control input, active low.

14

INT

O

Interrupt to host, open drain output (default) or push-pull output, active low.

15

CSFT

I

Chip select signal. Active low.

16

MOSI

I

SPI MOSI input.

17

MISO

O

SPI MISO output.

18

SCK

I

SPI clock input.
