• 5.00 inch 800x480 TFT Display, BTH050A-DHC$

5.00 inch 800x480 TFT Display

● 5.0" TFTLCD Module
● Resolution:800*3(RGB)*480
● DisplayType:TFT/Transmissive/Normally white
● Interface Type:HDMI
● Surface Luminance:800cd/m²
● Top:-20℃~70℃
● Support Capacitive Touch Panel
● CTP Drive IC:HYCON 4635
Model : BTH050A-DHC$


BTH050A-DHC$


BTH050A-DHC$ is a 5.0" TFT LCD with 800*3(RGB)*480 resolution.

It is a Normally White Trasmissive TFT with HDMI Interface.

Surface Luminance is 800 cd/m²

BTH050A-DHC$comes with CTP (Capacitive Touch Panel) with CTP Driver IC HYCON 4635.

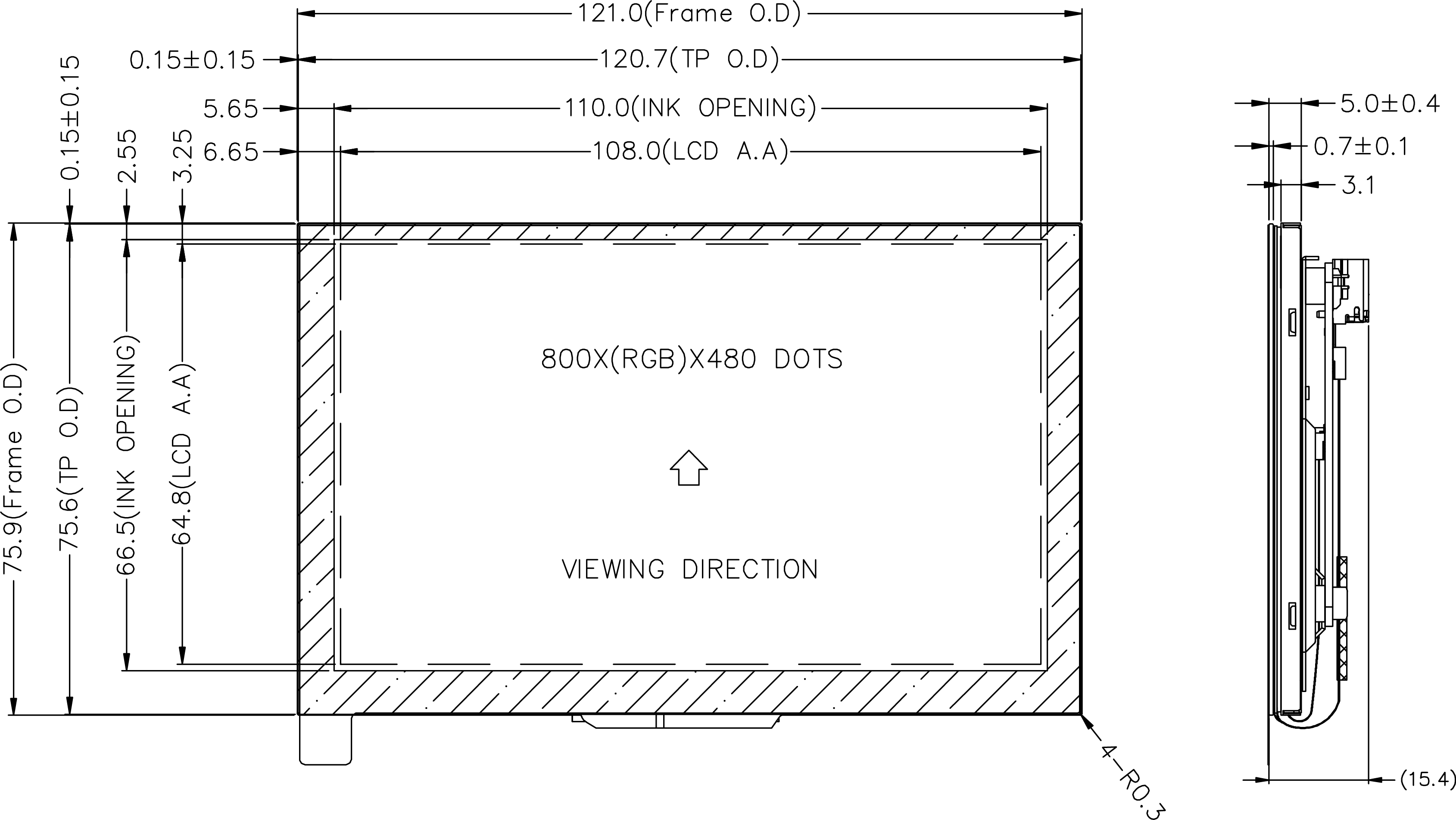

● Mechanical Data

1.    Module(WxHxT)(mm):121.0*75.9*15.4

2.    Active Area(mm):108.0*64.8

3.    LED Numbers: 18 LEDs




HDMI Interface Pin Function

Pin#

Name

Description

1

TX2+

TMDS Data 2+

2

TX2 Shield

TMDS Data 2 Shield

3

TX2-

TMDS Data 2-

4

TX1+

TMDS Data 1+

5

TX1 Shield

TMDS Data 1 Shield

6

TX1-

TMDS Data 1-

7

TX0+

TMDS Data 0+

8

TX0 Shield

TMDS Data 0 Shield

9

TX0-

TMDS Data 0-

10

TXC+

TMDS Clock +

11

TXC Shield

TMDS Clock Shield

12

TXC-

TMDS Clock -

13

CEC

CEC

14

NC

No connection

15

SCL

Serial Clock for DDC

16

SDA

Serial Data for DDC

17

GND

Power ground

18

V5V

+5V Power

19

Hot Plug Detect

Hot Plug Detect




● Capacitive Touch Panel Pin Function

Pin#

Name

Description

1

Vbus

Vbus 4.4V-5.25V

2

D-

Data-

3

D+

Data+

4

ID

No connection

5

GND

Power ground.
