MCU TFT LCD


TFT LCD with MCU Parallel Interface


MCU interface consist of two types of signals: data signals (4/8/9/16 bits) and control signals. The data signals are connected to the LCD data bus and sends RGB signals over 8, 9, 16 or 18-bit data lines. The control signals are used to define the operation type (read or write), data to internal memory.
Since Parallel MCU can store memory in its’ internal frame, it is a good option for displaying images. The MCU interface is a simpler interface to command but it need RAM.
It is used in Monochrome character and graphic LCD and well as TFT.
Bolymin offers MCU parallel interface in 0.96” TFT LCD, 1.44" TFT LCD, 1.77" TFT LCD, 2" TFT LCD, 2.4" TFT LCD, 2.8" TFT LCD, 3.5" TFT LCD, 4.3" TFT LCD, 5" TFT LCD, 5.6" TFT LCD, 7" TFT LCD, 8.4" TFT LCD, 10.1" TFT LCD, 10.4" TFT LCD.



Inch

Display Format


Model No.

Outline Dimension (mm)

Active Area (mm)

Typ.Brightness (module surface,cd/m2)

View Angle

Interface

IC Part No. or Compatible with Controller

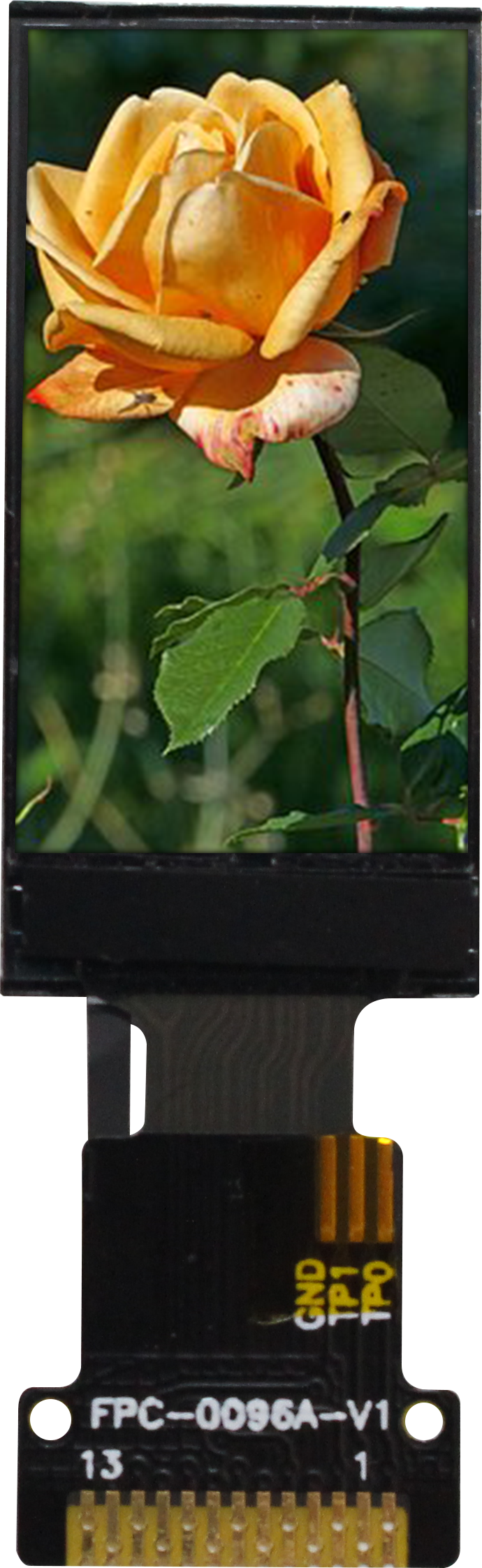

0.96

80x160


BTF0096A- GHN$

13.5x27.95x1.5

10.8x21.7

400

All

SPI

ST7735S

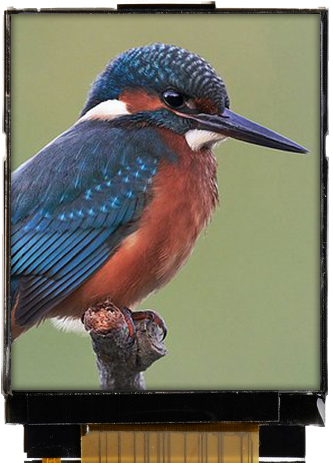

1.77

128x160

BTF0177A-EHN$

34.7x46.7x2.5

28.03x35.04

320

6H

Parallel

ST7735S

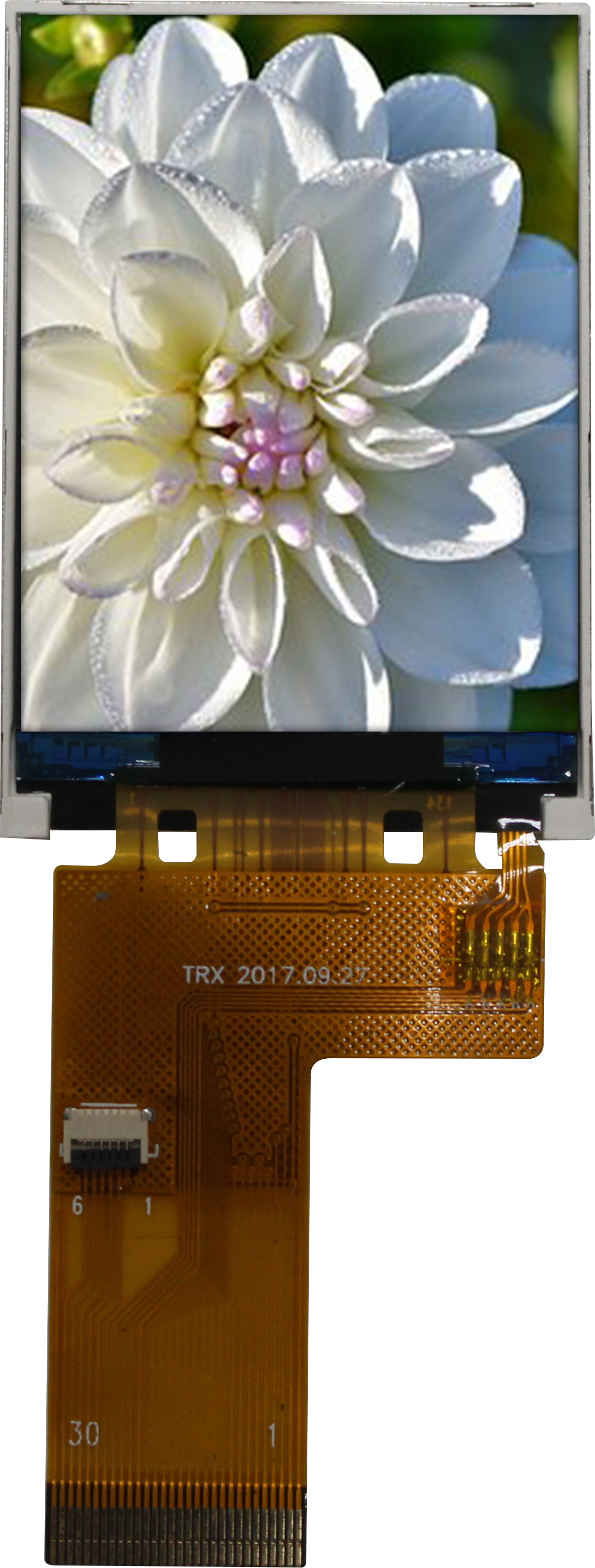

2.00

240x320

BTF020A-JBN$

35.7x51.2x2.4

30.6x40.8

250

ALL

Parallel / SPI

ST7789V

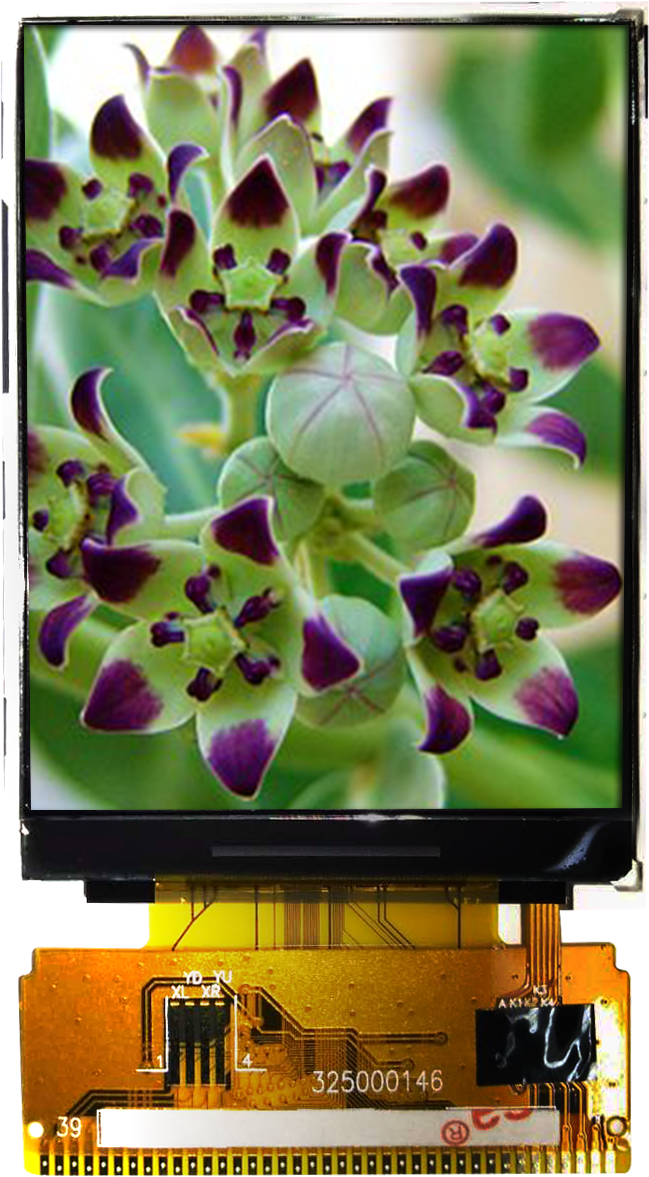

2.40

240x320

BTF024A-EHN$

42.72x60.26x2.55

36.72x48.96

350

6H

Parallel / SPI

ST7789V

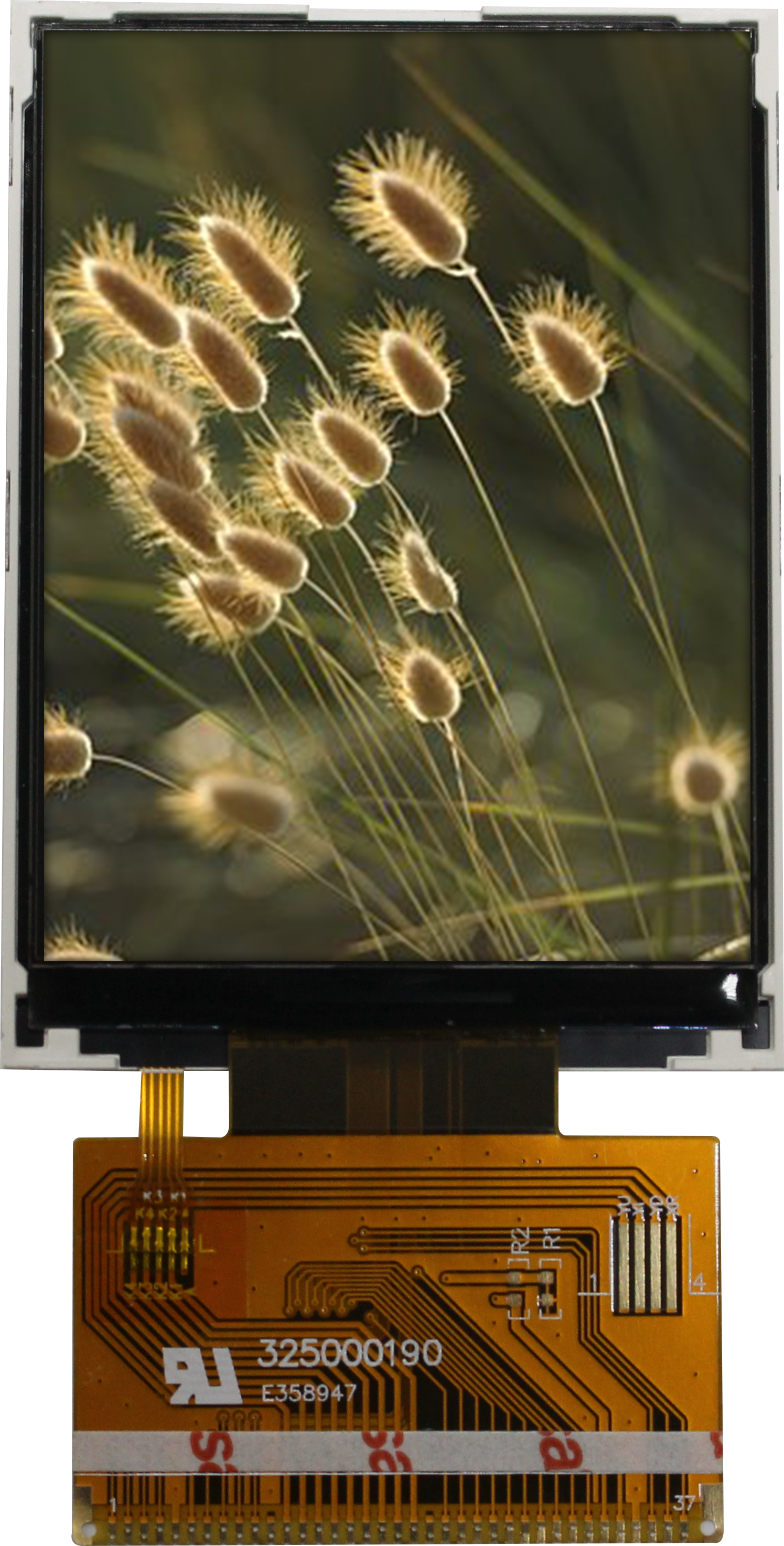

2.83

240x320

BTF028B-EHN$

50x69.2x2.2

43.2x57.6

280

6H

Parallel

ST7789V

3.50

320x240

BTF035B-BWN$

76.9x63.9x3.2

70.08x52.56

450

6H

RGB+SPI

SSD2119

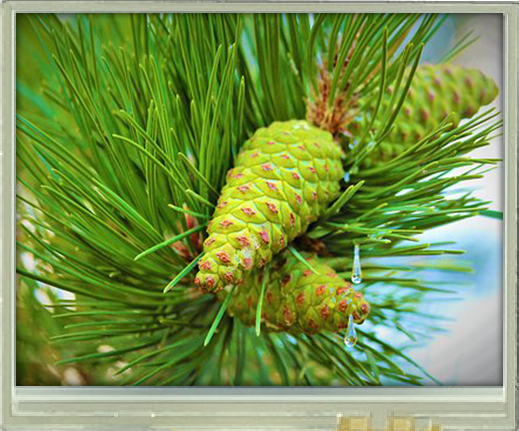

3.50

320x240

BTF035B-BWR$

76.9x63.9x4.3

70.08x52.56

360

12H

RGB+SPI

SSD2119

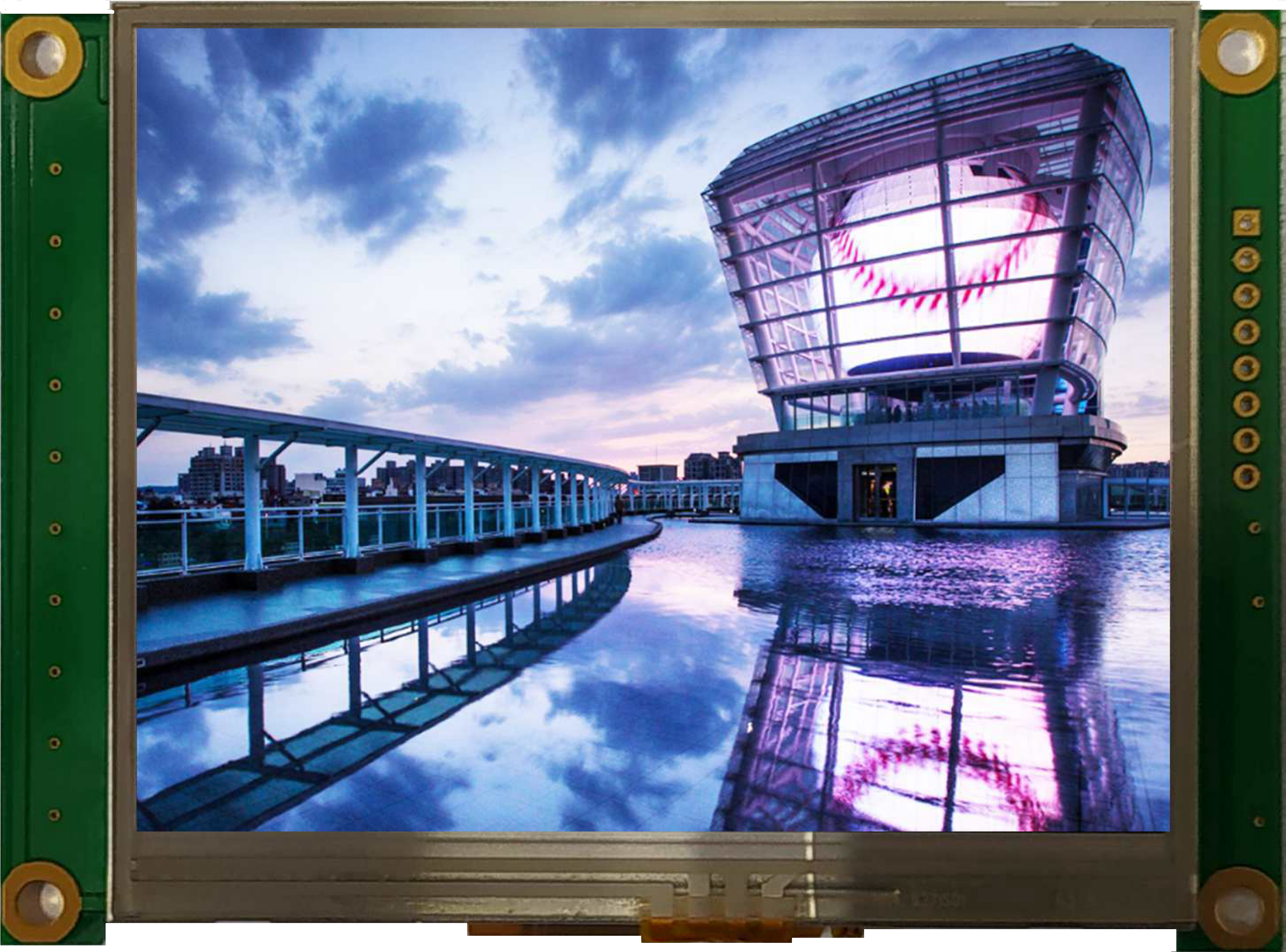

3.50
320x240
BT035DGGAHHp$ 92.0x66.0x6.7
70.08x52.56
150
SPI FT810

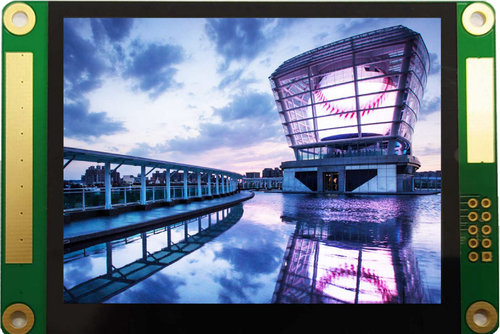

3.50 320x240
BTC035CG-GFC$ 95.0x64.0x9.2
70.08*52.56
360
4-WIRE SPI FT811

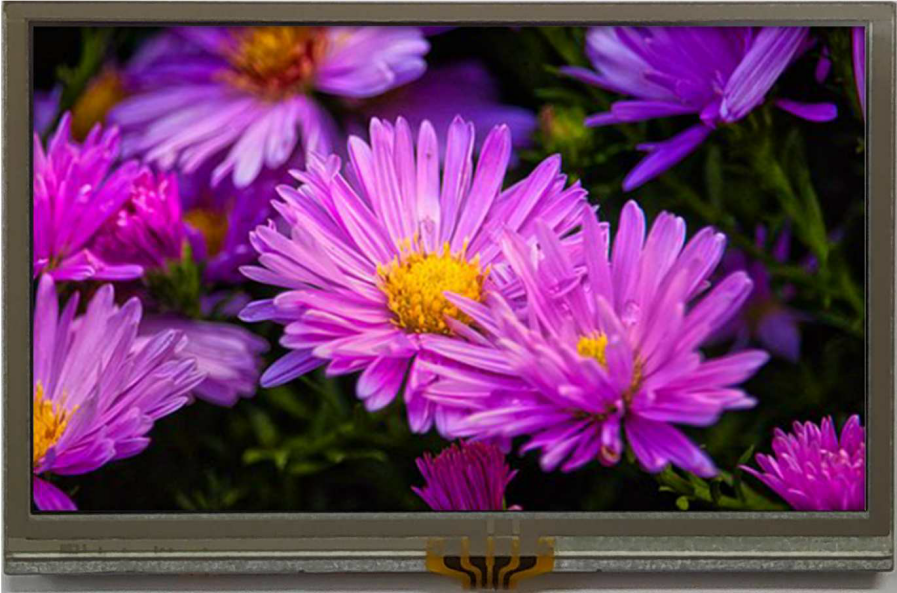

4.30

480x272
BTC043BB-EWR$
105.5x67.2x9.7
95.04x53.86
320
Parallel RA8875
4.30
480x272

BTC043BB-GWR$
105.5x67.2x9.7
95.04x53.86
320

4-WIRE SPI

RA8875

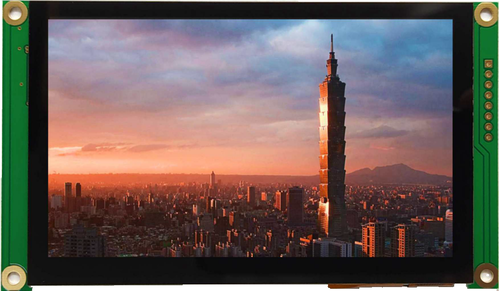

4.30
480x272
BT043DKFAHWcp$ 120.0x69.0x6.5
95.04x53.86
250
SPI FT811
4.30 480x272
BT043DKGAHHp$ 120.0x69.0x6.0
95.04x53.86
220
SPI FT810

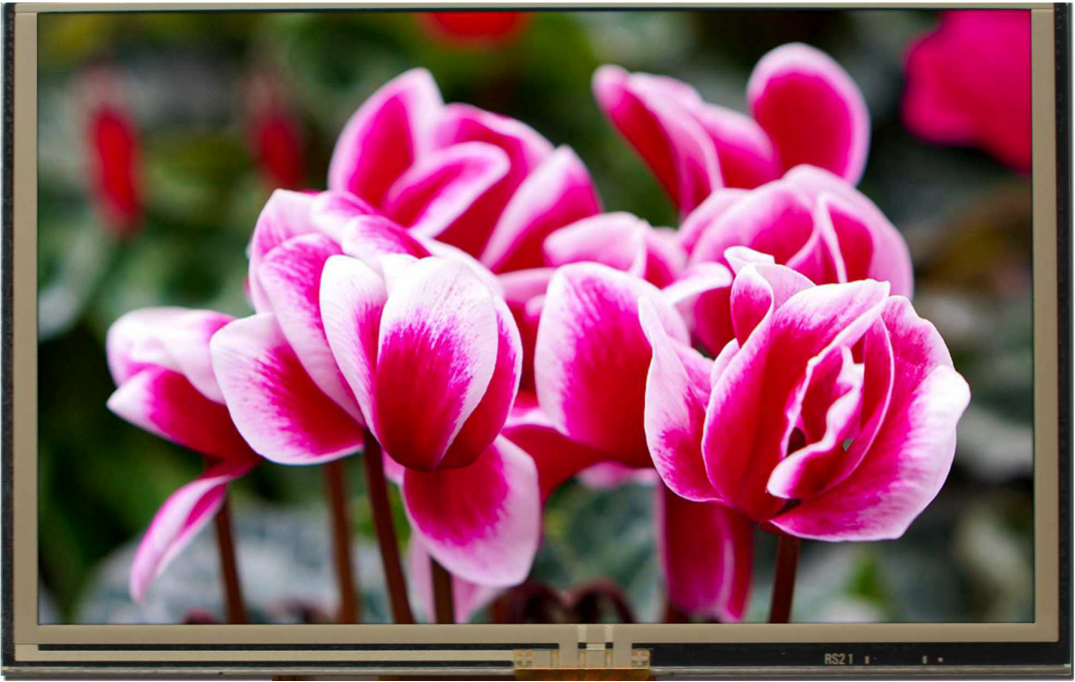

5.0 800x480
BTC050AA-EWR$ 120.7x75.8x9.3
108.0x64.8
280
Parallel RA8873
5.0 800x480
BTC050AA-GWR$ 120.7x75.8x9.3 108.0x64.8

280


4-WIRE SPI
RA8873
5.0 800x480
BTC050AB-EWR$ 120.7x75.8x9.3 108.0x64.8 280
Parallel RA8875
5.0 800x480
BTC050AB-GWR$ 120.7x75.8x9.3 108.0x64.8 280
4-WIRE SPI RA8875
5.0 800x480
BTC050AE-EWR$ 120.7x75.8x9.3 108.0x64.8 280
Parallel RA8876

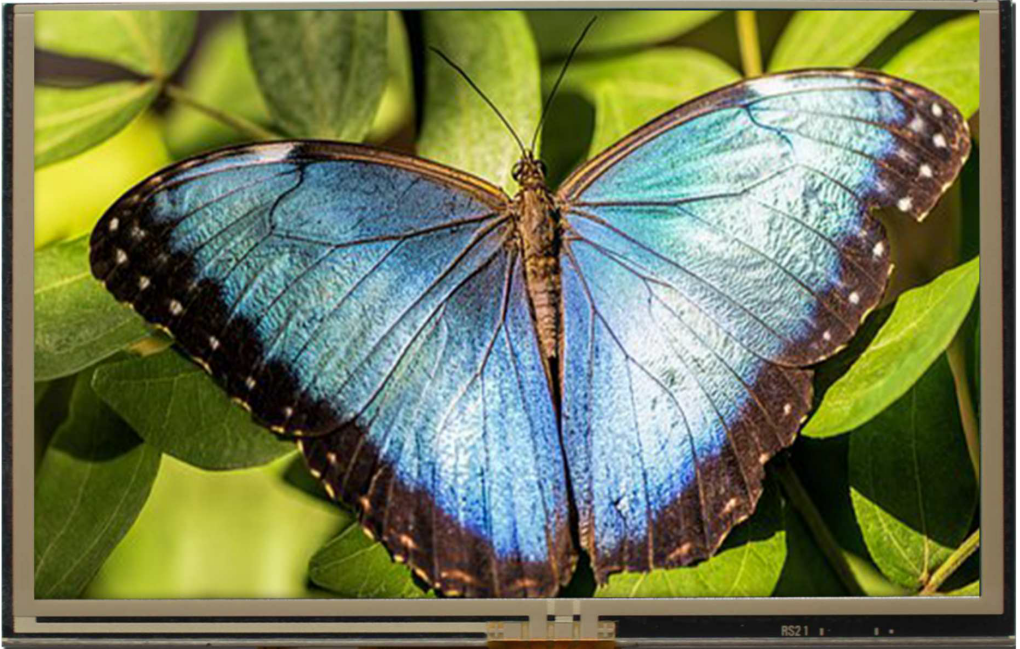

5.0 800x480
BTC050AE-GWR$ 120.7x75.8x9.3 108.0x64.8 280
4-WIRE SPI RA8876

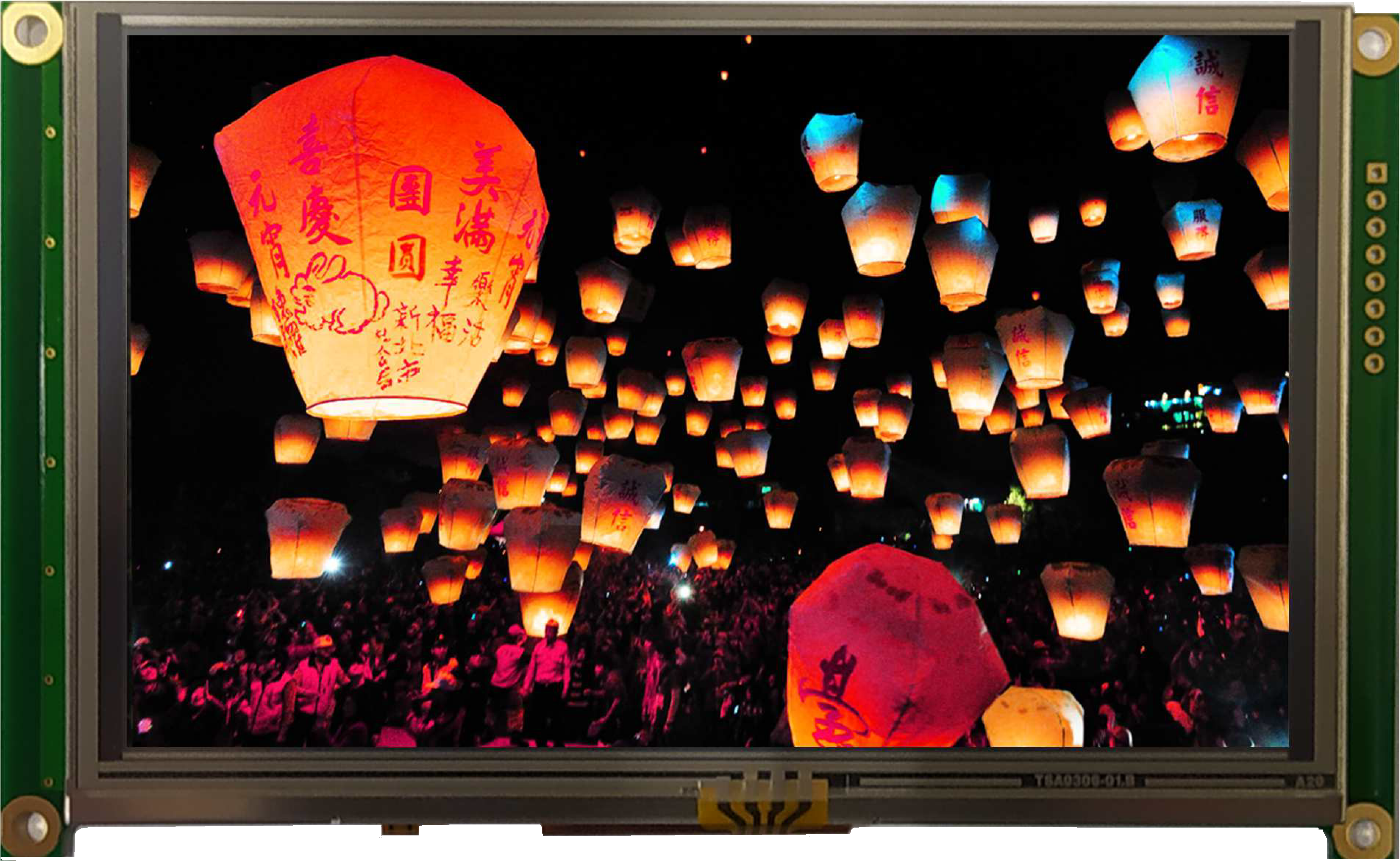

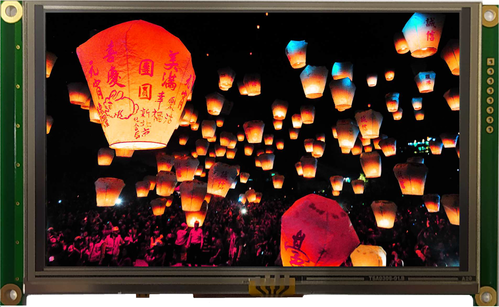

5.0 800x480

BT050DMGAHWp$
133.0x80.0x5.8
108.0x64.8
280

SPI
FT810

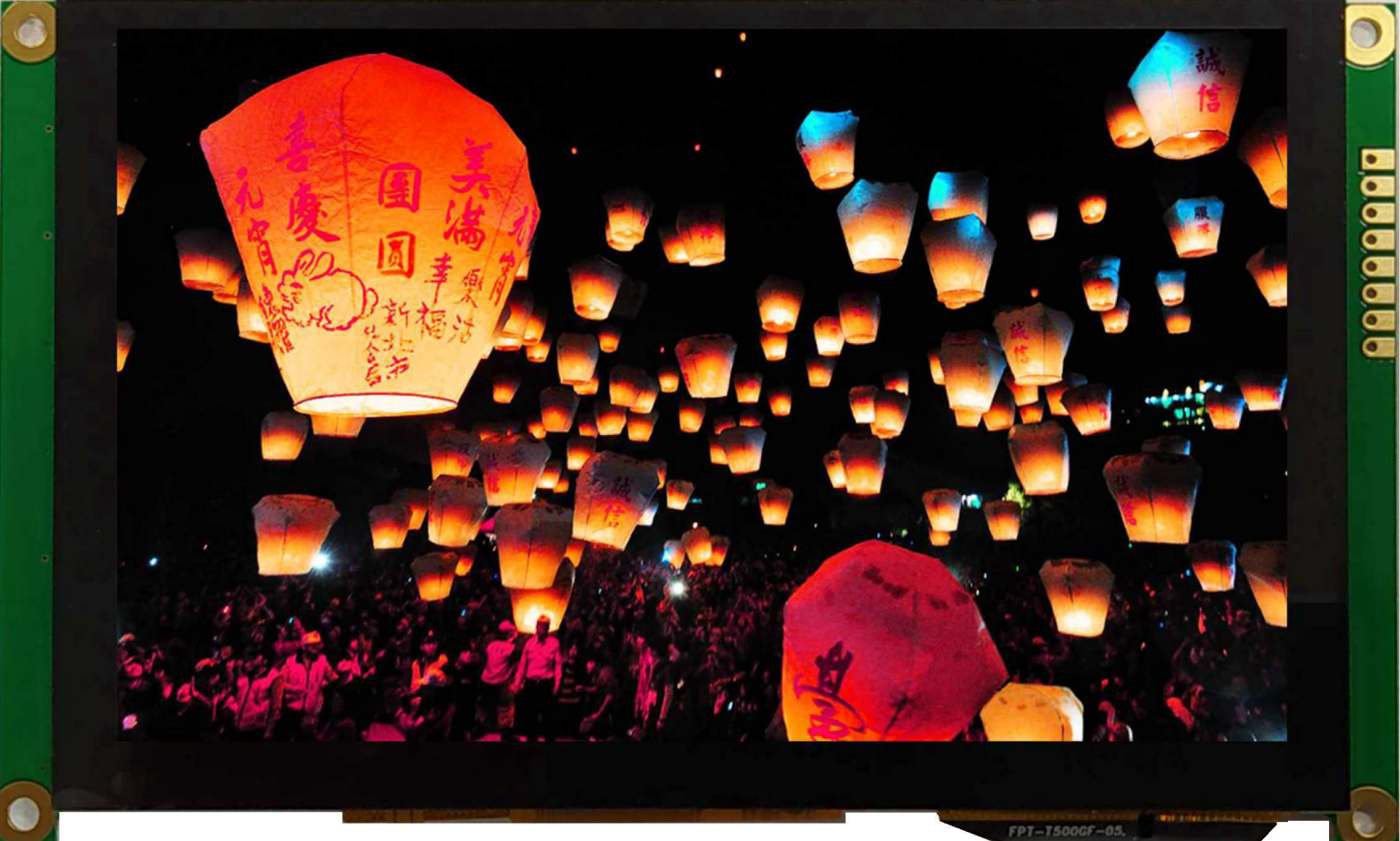

5.0 800x480
BTC050CG-GWC$ 133.0x80.0x8.7
108.0x64.8
240
SPI FT811

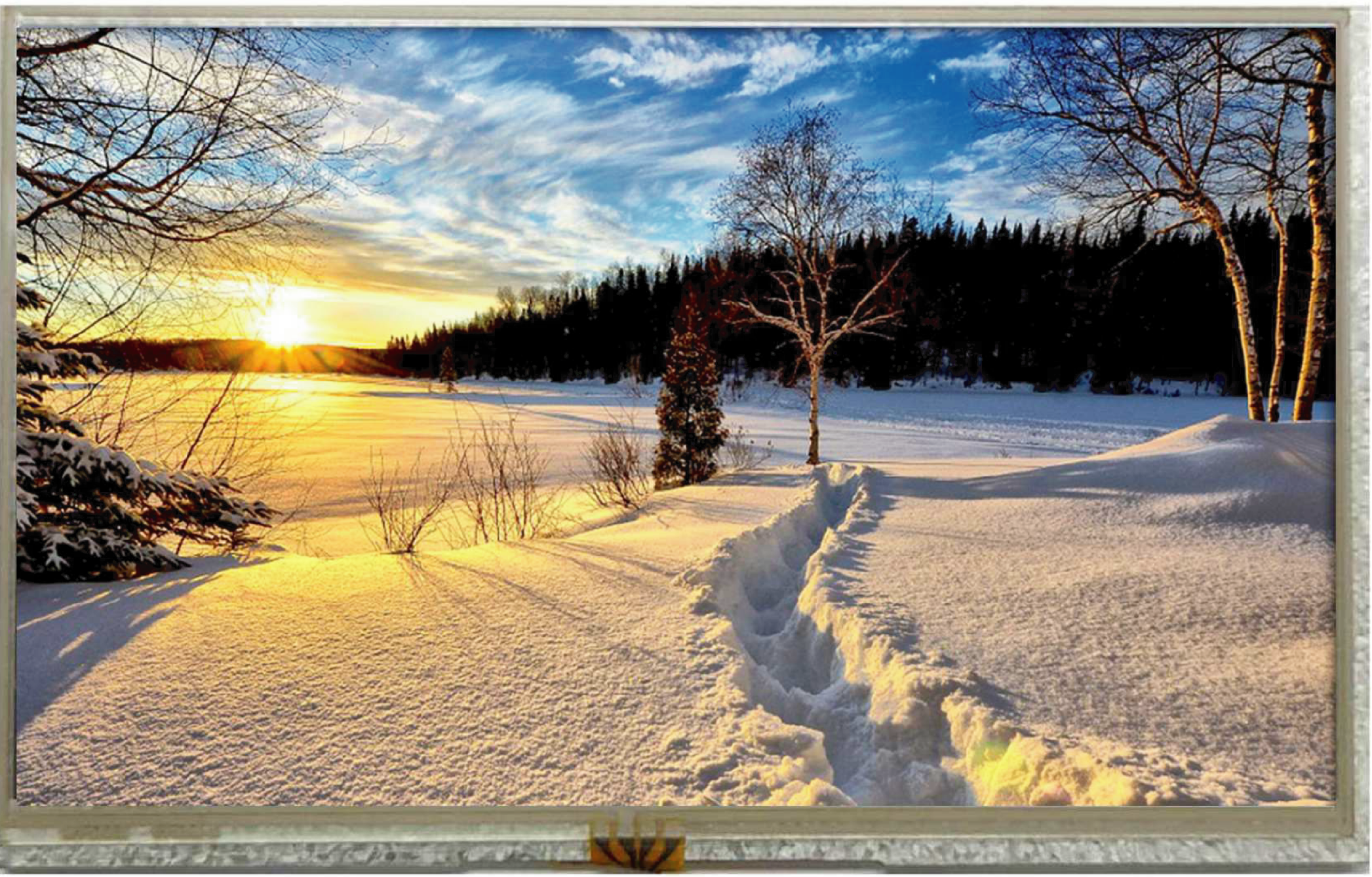

7.0 800x480
BTC070BA-EBR$ 164.8x99.8x9.85
153.84x85.632
280
Parallel RA8873

7.0

800x480
BTC070BA-GBR$
164.8x99.8x9.85 153.84x85.632 280
4-WIRE SPI RA8873

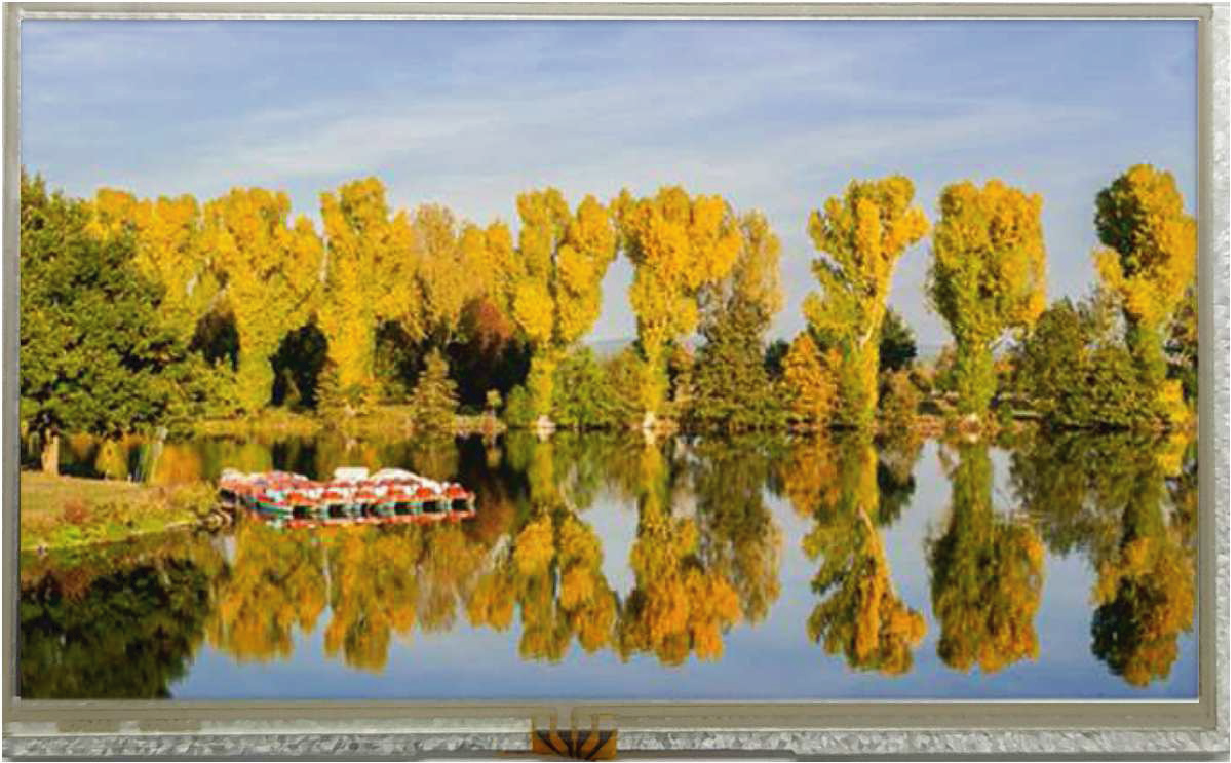

7.0
800X480
BTC070BB-EBR$ 164.8X99.8X9.85 153.84X85.632 280
Parallel RA8875
7.0
800x480
BTC070BB-GBR$ 164.8x99.8x9.85 153.84x85.632 280
4-WIRE SPI RA8875

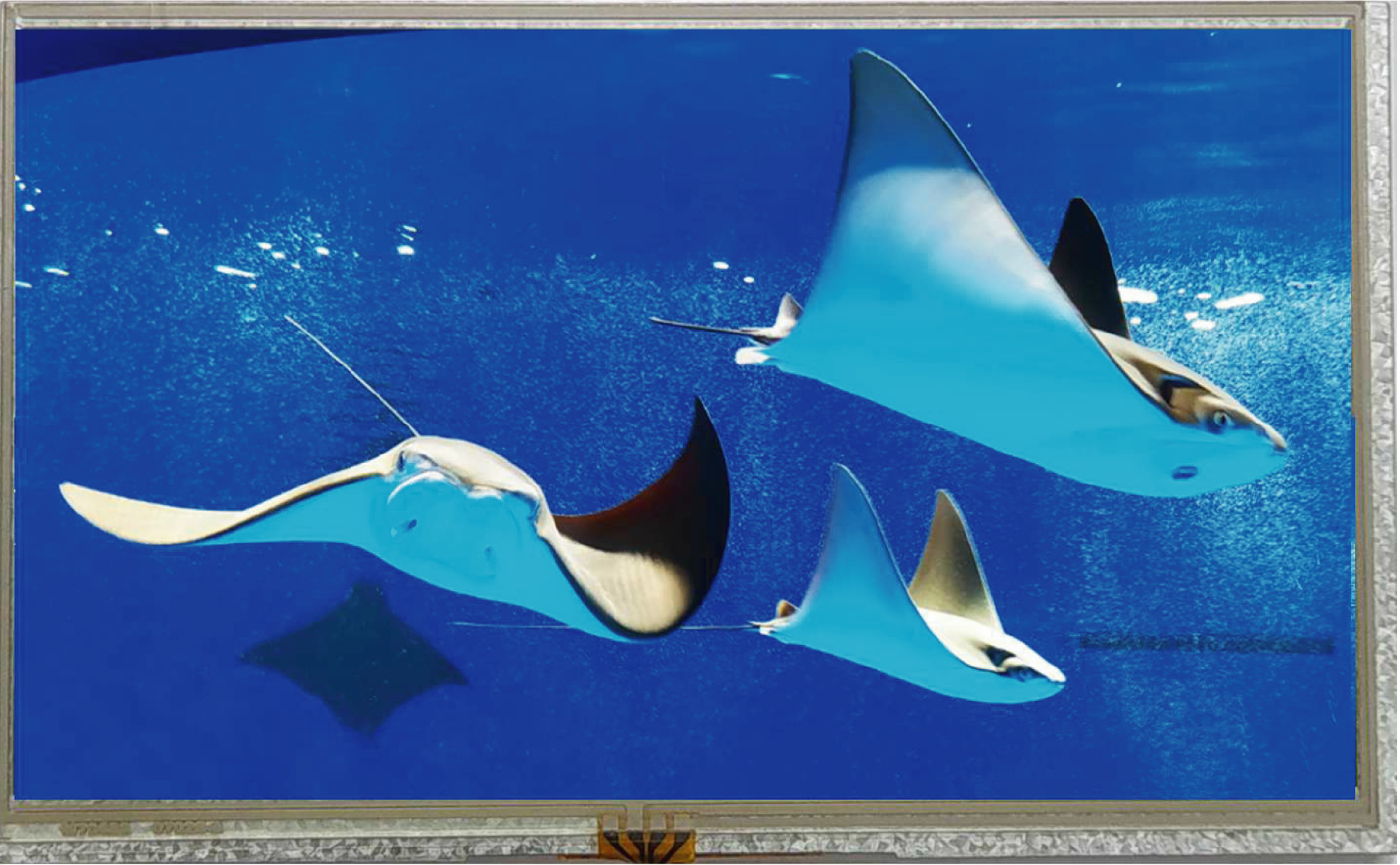

7.0 800x480

BTC070BE-EBR$

164.8x99.8x9.85 153.84x85.632 280
Parallel RA8876
7.0 800x480
BTC070BE-GBR$ 164.8x99.8x9.85 153.84x85.632 280
4-WIRE SPI RA8876

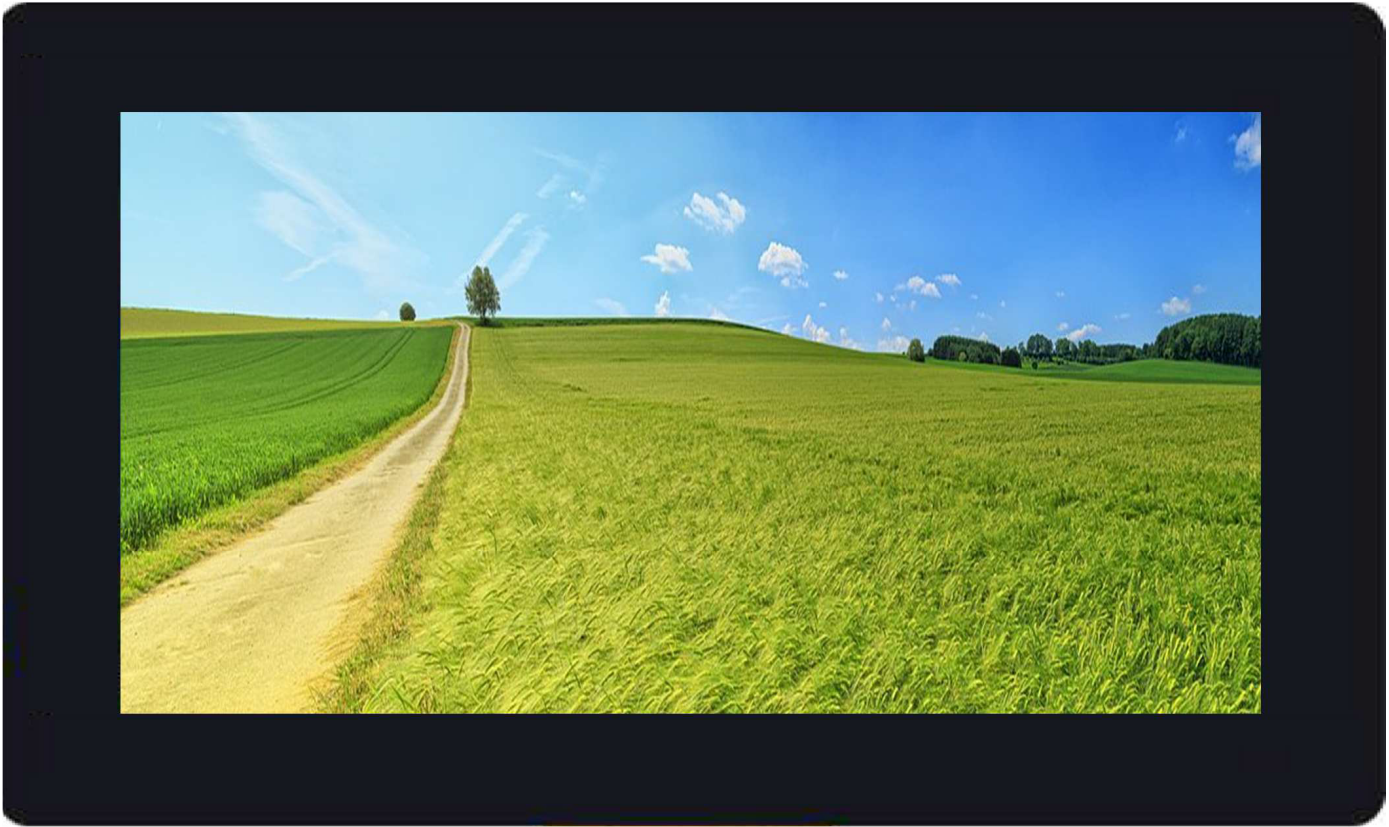

7.0 1024x600
BTC070CF-EFC$ 190.08x121.92x10.4 154.21x85.92 640 Parallel RA8877
7.0 1024x600
BTC070CF-GFC$ 190.08x121.92x10.4
154.21x85.92 640
4-WIRE SPI RA8877
10.1 1280x800
BTC101AF-EAC$ 258x176.6x10.3
216.96x135.6
190
Parallel RA8877

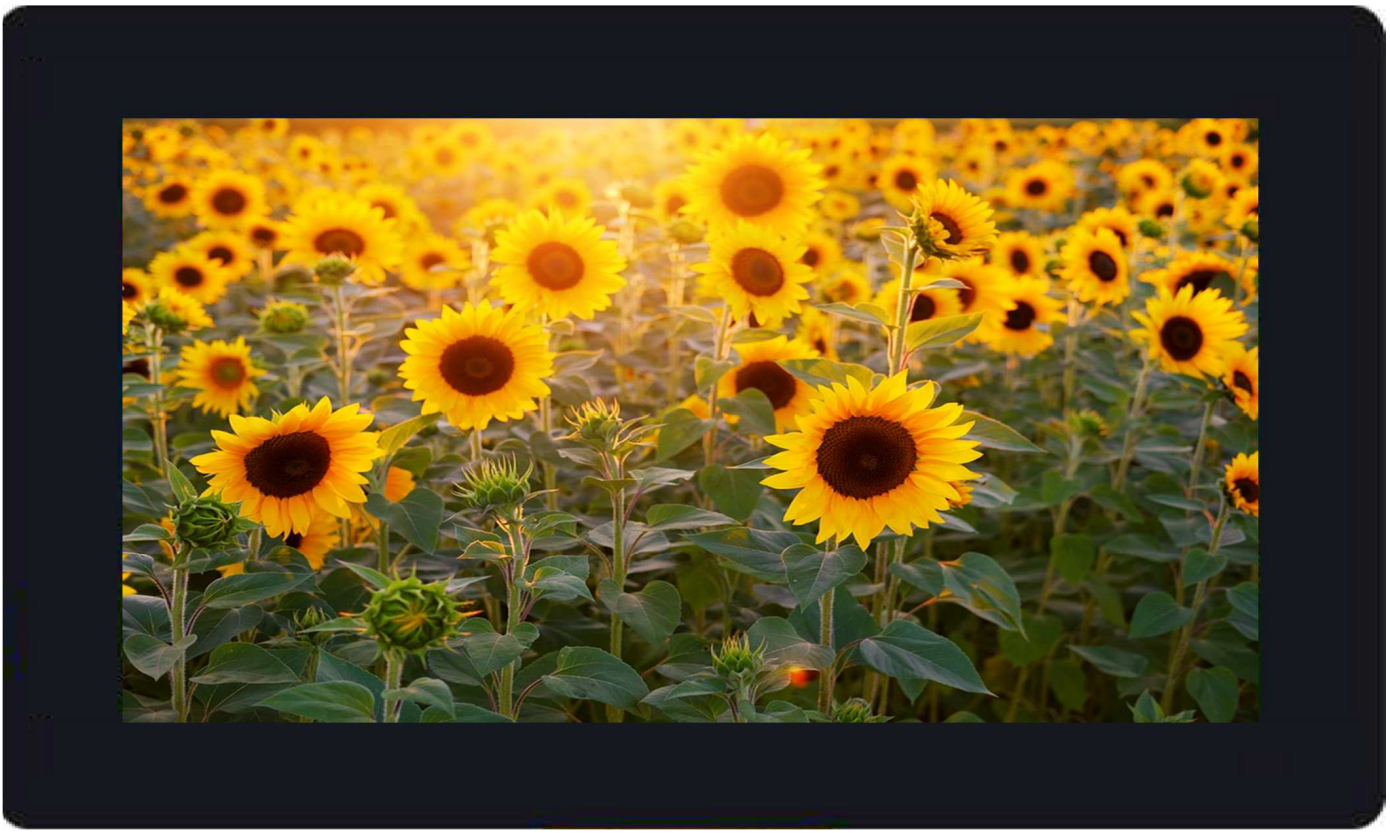

10.1 1280x800
BTC101AF-GAC$ 258x176.6x10.3
216.96x135.6
190
4-WIRE SPI RA8877

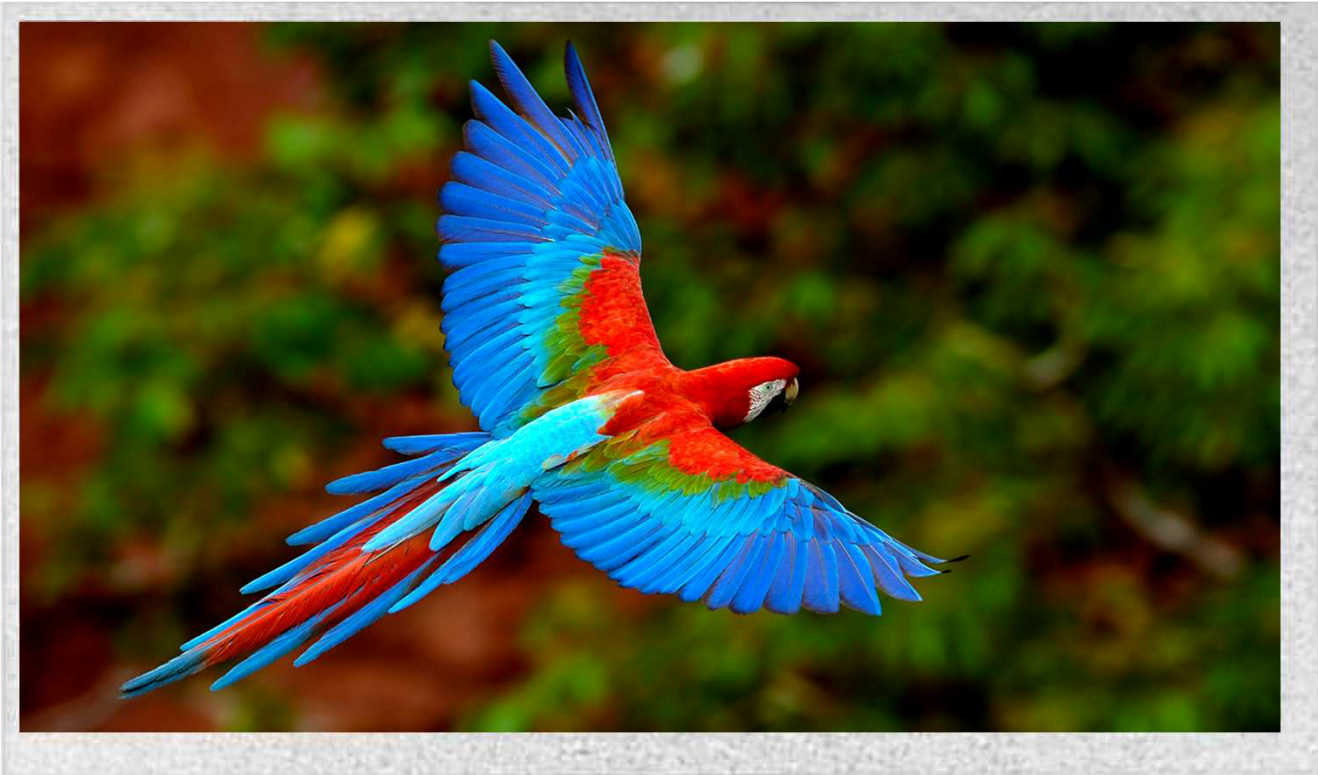

10.1 1024x600
BTC101BE-EBN$ 235x143x9.8
222.72x125.28
360
Parallel RA8876
10.1 1024x600
BTC101BE-GBN$ 235x143x9.8
222.72x125.28
360
4-WIRE SPI RA8876



View:

3.50 inch 320x240 mTFT Display

● 3.5" IPS TFT LCD Module
● Resolution:320*RGB*240
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:4-Wire SPI
● Controller IC: FT811
● Top:-20℃~70℃
● Support Capacitive Touch Panel

4.30 inch 480x272 mTFT Display

● 4.3" TFT LCD Module.
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT810
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 220 cd/m²(min)

5.0 inch 800x480 mTFT Display

● 5.0" TFT LCD Module.
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT810
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 280 cd/m²(Type)

3.50 inch 320x240 mTFT Display

● 3.5" TFT LCD Module.
● Resolution:320*RGB*240
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT810
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 150 cd/m²(min)

4.30 inch 480x272 mTFT Display

● 4.3" TFT LCD Module.
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT811
● Top:-20℃~70℃
● Support Capacitive Touch Panel
● Surface Luminance 250 cd/m²(min)

5.0 inch 800x480 mTFT Display

● 5.0" TFT LCD Module.
● Resolution:800*RGB*480.
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT811
● Top:-20℃~70℃
● Support Capacitive Touch Panel
● Surface Luminance 240cd/m²(min)

4.30 inch 480x272 TFT Display

● 4.3" TFT LCD Module
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:Parallel
● Controller IC: RA8875
● Top:-20℃~70℃
● Support Resistive Touch Panel

4.30 inch 480x272 TFT Display

● 4.3" TFT LCD Module
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:4-Wire SPI
● Controller IC: RA8875
● Top:-20℃~70℃
● Support Resistive Touch Panel

5.0 inch 800x480 TFT Display

● 5.0" TFT LCD Module
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type: Parallel
● Controller IC: RA8873
● Top:-20℃~70℃
● Support Resistive Touch Panel

5.0 inch 800x480 TFT Display

● 5.0" TFT LCD Module
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type: 4-Wire SPI
● Controller IC: RA8873
● Top:-20℃~70℃
● Support Resistive Touch Panel

5.0 inch 800x480 TFT Display

● 5.0" TFT LCD Module
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type: Parallel
● Controller IC: RA8875
● Top:-20℃~70℃
● Support Resistive Touch Panel

5.0 inch 800x480 TFT Display

● 5.0" TFT LCD Module
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:4-Wire SPI
● Controller IC: RA8875
● Top:-20℃~70℃
● Support Resistive Touch Panel
