4.30 inch 480x272 mTFT Display

● 4.3" TFT LCD Module.
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT811
● Top:-20℃~70℃
● Support Capacitive Touch Panel
● Surface Luminance 250 cd/m²(min)
Model : BT043DKFAHWcp$

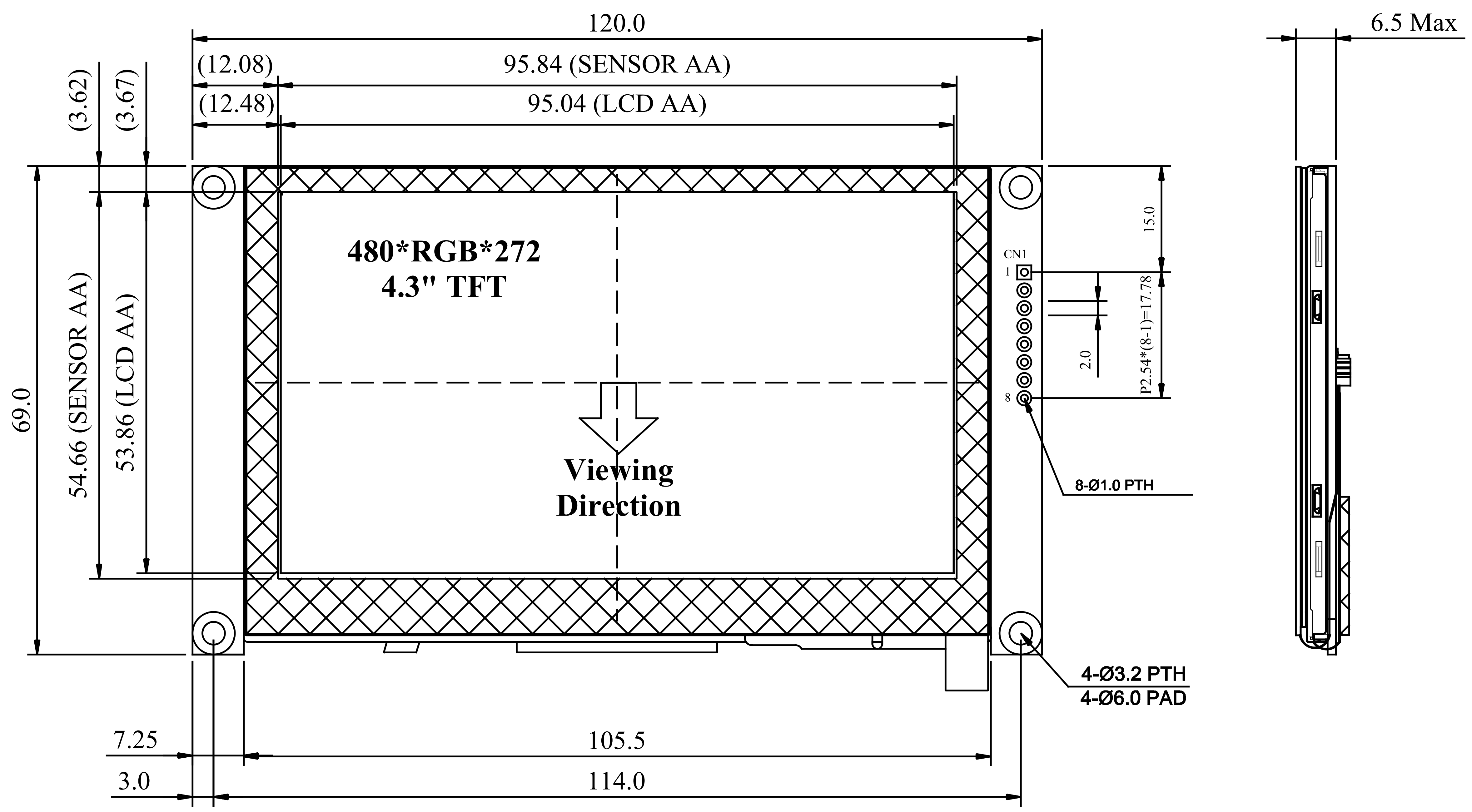

● Mechanical Data

1.    Module(WxHxT)(mm):120.0*69.0*6.5

2.    Active Area(mm):95.04*53.86

3.    LED Numbers: 10 LEDs




● Pin Assignment

Pin No.

Symbol

I/O Voltage

Function

1

VDD

-

Power supply voltage for logic.

2

VSS

-

Ground.

3

SCL

3.3V

SPI clock input.

4

MISO

3.3V

SPI MISO output.

5

MOSI

3.3V

SPI MOSI input.

6

/CS

3.3V

Chip select signal. Active low.

7

/PD

3.3V

Chip power down mode control input,active low.

8

/INT

3.3V

Interrupt to host,active low.
