• 5.60 inch 640x480 TFT Display, BTF056A-AHN$

5.60 inch 640x480 TFT Display

● 5.6" TFTLCD
● Resolution:640*480
● DisplayType:TFT/Normally/White/Transmissive
● Interface Type:18-BIT RGB
● Surface Luminance:350cd/m²
● Top:-20℃~70℃
Model : BTF056A-AHN$



BTF056A-AHN$


BTF056A-AHN$ is a 5.6" TFT LCD with 640*480 RGB resolution.

It is a Normally White trasmissive TFT with 18-BIT RGB Interface.

View angle for TFT is “6H” and brightness is 350 cd/m²

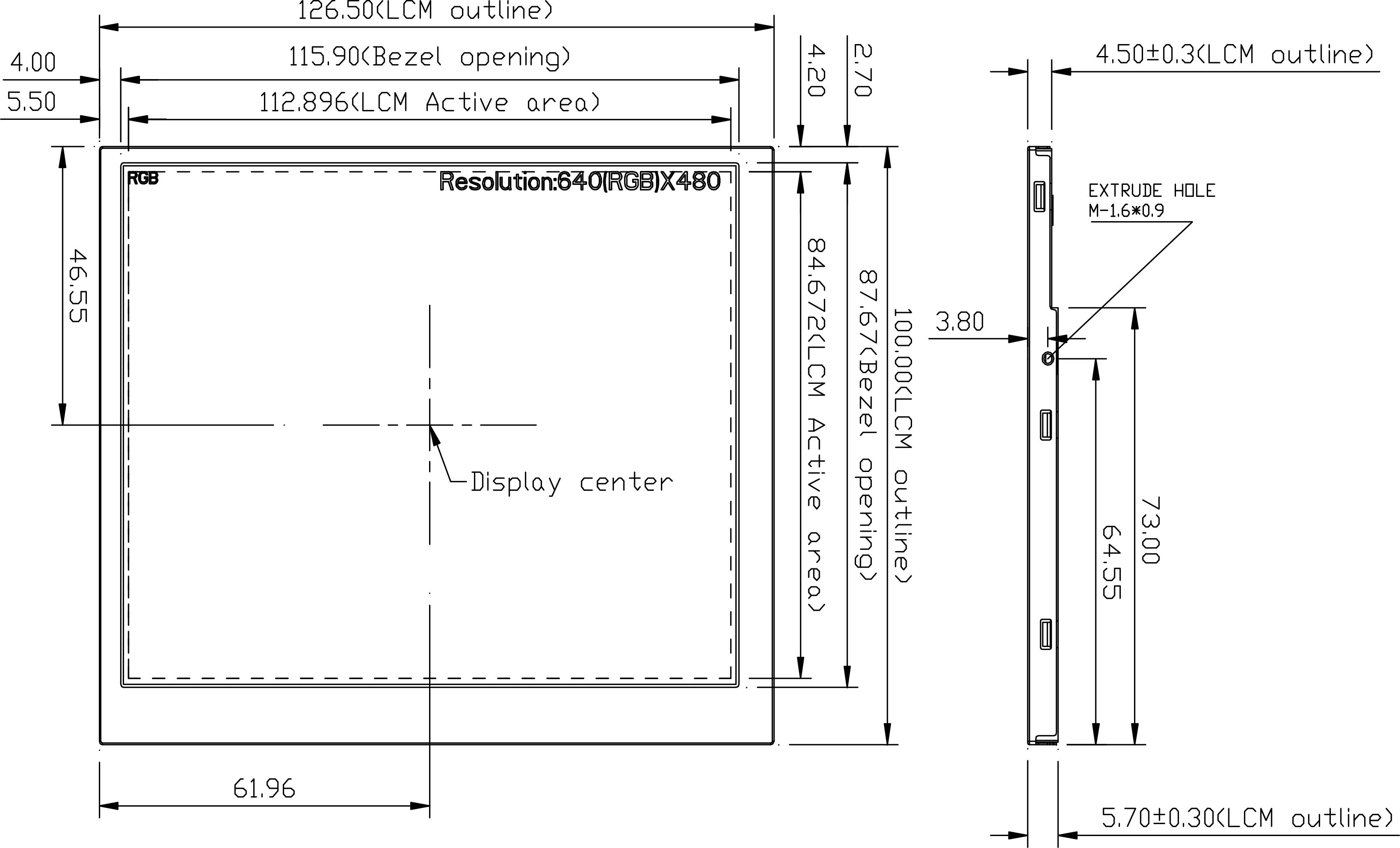

● Mechanical Data

1.    Module(WxHxT)(mm):126.5*100*5.7

2.    Active Area(mm):112.896*84.672




● Interface Pin Function

No

Symbol

Description

1

VLED

Power Voltage for LED circuit

2

VLED

Power Voltage for LED circuit

3

ADJ

Adjust the LED brightness with PWM Pulse

4

GLED

Ground for LED circuit

5

GLED

Ground for LED circuit

6

VCC

Power Voltage for digital circuit

7

VCC

Power Voltage for digital circuit

8

MODE

DE or HV mode control

9

DE

Data enable

10

VS

Vsync signal input

11

HS

Hsync signal input

12

GND

Power ground

13

B5

Blue data input (MSB)

14

B4

Blue data input

15

B3

Blue data input

16

GND

Power ground

17

B2

Blue data input

18

B1

Blue data input

19

B0

Blue data input (LSB)

20

GND

Power ground

21

G5

Green data input (MSB)

22

G4

Green data input

23

G3

Green data input

24

GND

Power ground

25

G2

Green data input

26

G1

Green data input

27

G0

Green data input (LSB)

28

GND

Power ground

29

R5

Red data input (MSB)

30

R4

Red data input

31

R3

Red data input

32

GND

Power ground

33

R2

Red data input

34

R1

Res data input

35

R0

Res data input (LSB)

36

GND

Power ground

37

DCLK

Sample clock

38

GND

Power ground

39

L/R

Select left to right scanning direction

40

U/D

Select up or down scanning direction
