MULTI-LANGUAGE LCD


Bolymin provides LCD/ LCM with multiple font options for BG14432A , BG12864B , BG16032A and BG320240G , customer can choose the font required for their application.


Bolymin BG14432A , BG12864B , BG16032A Graphic LCD come with ST7920 controller/driver IC which can display alphabets, numbers, and Chinese fonts. It also allow customer to build fonts themselves, since it is a Graphic LCD.


ST7920-0A - BIG-5 code traditional character set
ST7920-0B - GB code simplified character set
ST7920-0C - GB code, BIG-5 code and Japanese code
ST7920-0F - Chinese (Traditional/Simplified), Japanese & Korean


Display Format


Model No.

Outline Dimension (mm)

View Area (mm)

Dot Size (mm)

Interface

IC Part No. or Compatible with Controller

128x64

BG12864B

93X70

72X40

0.48X0.48

Parallel / SPI

ST7920

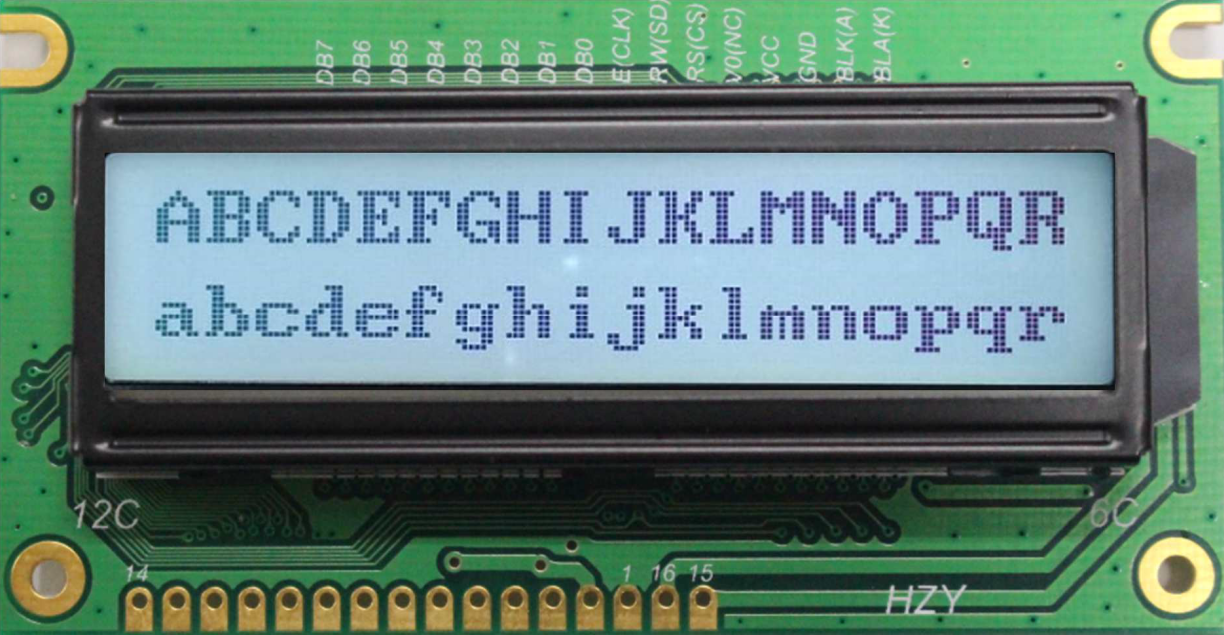

144x32

BG14432A

84X44

66X16

0.37X0.37

Parallel / SPI

ST7920

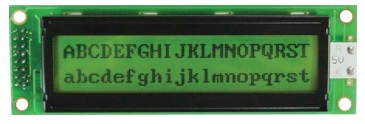

160x32

BG16032A

116X37

85X18.6

0.45x0.45

Parallel / SPI

ST7920

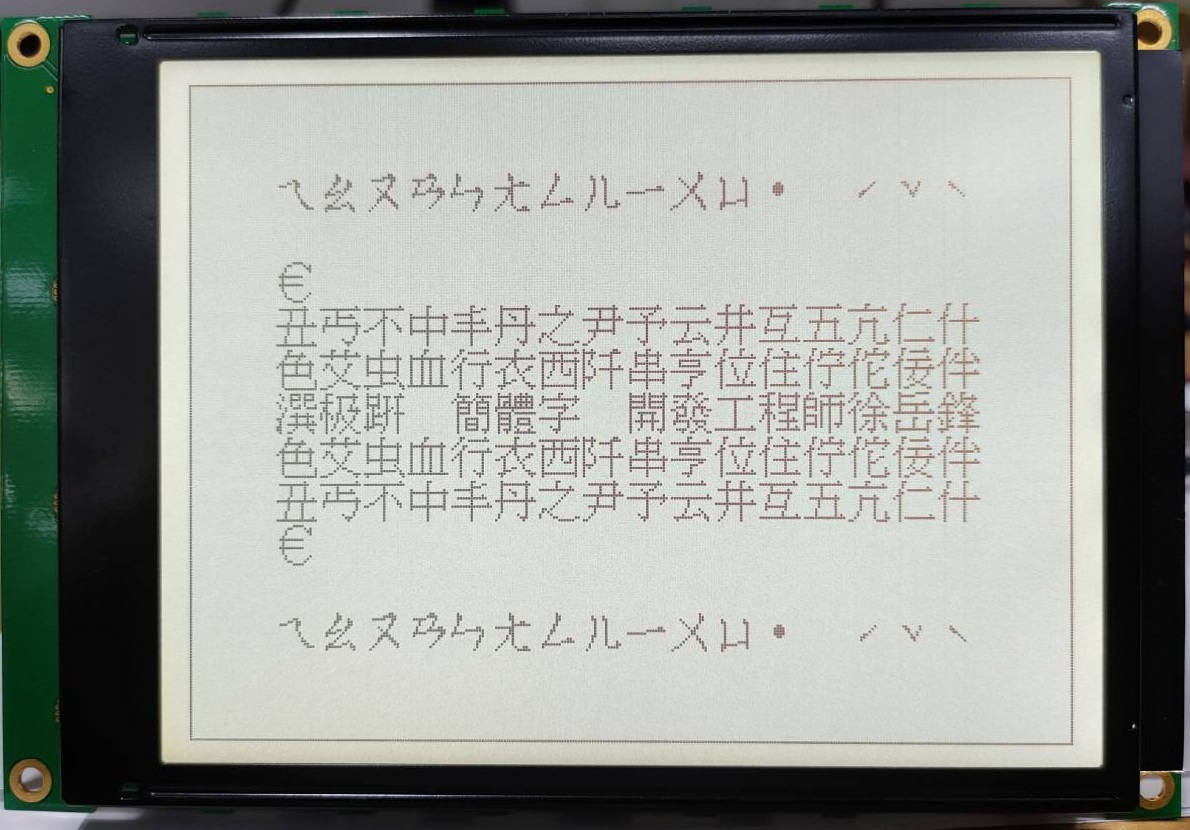

320x240

BG320240G

160x109

122x92

0.34X0.34

Parallel

RA8806
