• 7.00 inch 800x480 TFT Display, BTF070B-ABR$

7.00 inch 800x480 TFT Display

● 7.0" TFTLCD
● Resolution:800*480
● DisplayType:TFT/Normally/White/Transmissive
● Interface Type:24-BIT RGB
● Surface Luminance:350cd/m²
● Top:-20℃~60℃
● Support Resistive Touch Panel
Model : BTF070B-ABR$



BTF070B-ABR$


BTF070B-ABR$ is a 7.0" TFT LCD with 800*480 RGB resolution.

It is a Normally White Trasmissive TFT with 24-BIT RGB Interface.

View angle for TFT is “6H” and brightness is 350 cd/m²

BTF070B- ABR$ comes with RTP (Resistive Touch Panel).

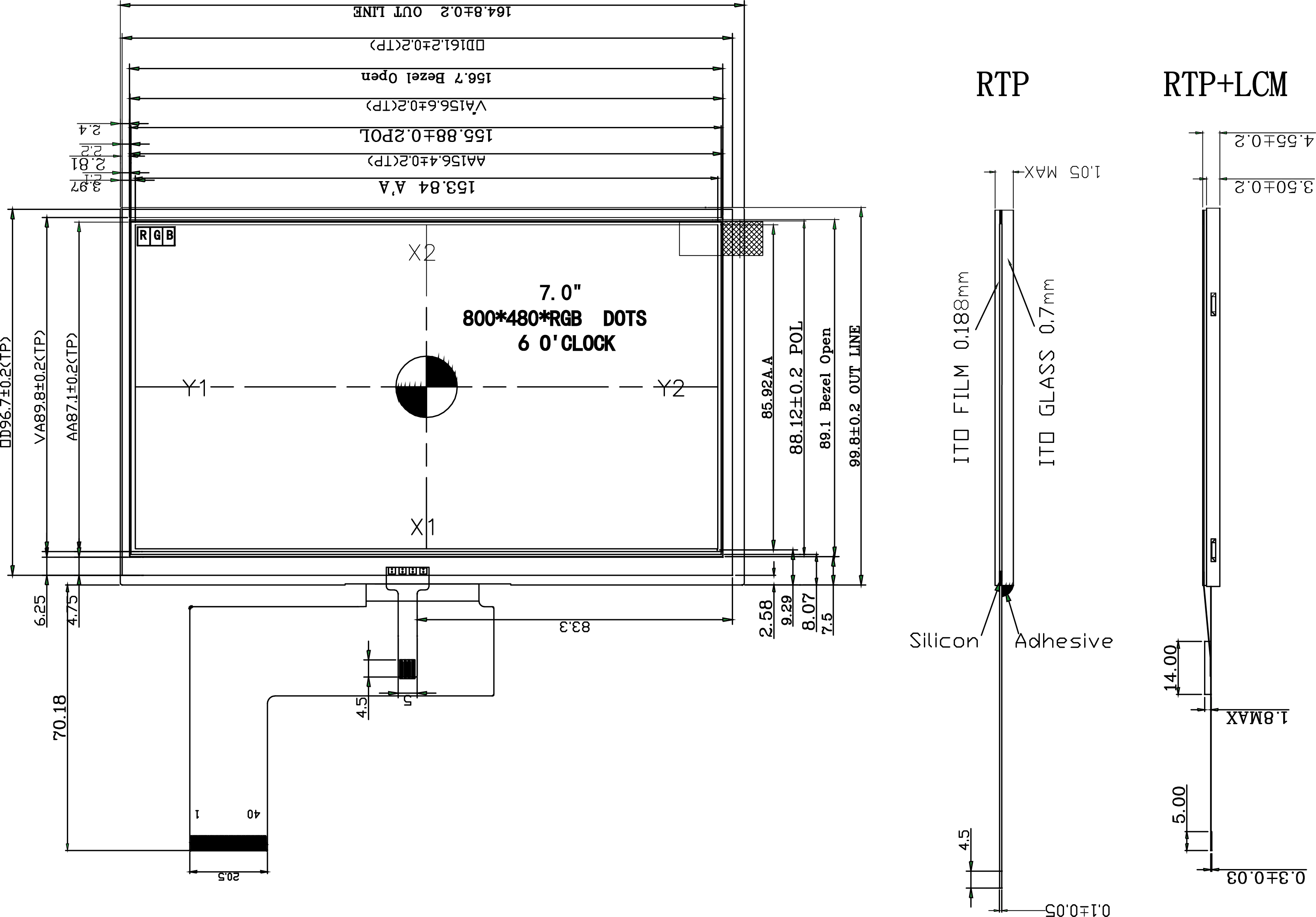

● Mechanical Data

1.    Module(WxHxT)(mm):164.8*99.8*4.55

2.    Active Area(mm):153.84*85.92

3.    LED Numbers:24LEDs




● Interface Pin Function

No

Symbol

I/O

Description

1

VLED-

P

Power for LED backlight (Cathode)

2

VLED+

P

Power for LED backlight (Anode)

3

AGND

P

Analog Ground

4

VCOM

I

Common voltage

5

R0

I

Red data (LSB)

6

R1

I

Red data

7

R2

I

Red data

8

R3

I

Red data

9

R4

I

Red data

10

R5

I

Red data

11

R6

I

Red data

12

R7

I

Red data (MSB)

13

G0

I

Green data (LSB)

14

G1

I

Green data

15

G2

I

Green data

16

G3

I

Green data

17

G4

I

Green data

18

G5

I

Green data

19

G6

I

Green data

20

G7

I

Green data (MSB)

21

B0

I

Blue data (LSB)

22

B1

I

Blue data

23

B2

I

Blue data

24

B3

I

Blue data

25

B4

I

Blue data

26

B5

I

Blue data

27

B6

I

Blue data

28

B7

I

Blue data (MSB)

29

GND

P

Ground

30

DCLK

I

Sample clock

31

DISP

I

Display on/off

32

HS

I

Horizontal Sync Input

33

VS

I

Vertical Sync Input

34

DE

I

Data Input Enable

35

NC

-

No connection

36

GND

P

Ground

37

X_R

P

Touch panel X-right

38

Y_D

P

Touch panel Y-bottom

39

X_L

P

Touch panel X- left

40

Y_U

P

Touch panel Y-up
