4.30 inch 480x272 TFT Display
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:4-Wire SPI
● Controller IC: RA8875
● Top:-20℃~70℃
● Support Resistive Touch Panel
BTC043BB-GWR$
BTC043BB-GWR$ is a 4.3" TFT LCD with 480*RGB*272 resolution.
It is a trasmissive normally white TFT with 4-Wire SPI Interface.
Controller IC used in TFT is RA8875
BTC043BB-GWR$ supports RTP (Resistive Touch Panel)
RA8875 is a text/graphic mixed display with 2 layers TFT LCD controller. It is designed to meet the requirement of middle size TFT module up to 800x480 pixels with characters or 2D graphic application. Embedded 768KB display RAM provides user a flexible solution for displaying buffer of almost application. Besides, optional external serial flash is capable to provide the up to 32x32pixels font bitmap for BIG5/GB coding. For graphic usage, RA8875 supports a 2D Block Transfer Engine(BTE) that is compatible with 2D BitBLT function for processing the mass data transfer. The advanced geometric speed-up engine provides user an easy way to draw the programmable geometric shape by hardware, like line, square, circle and ellipse. Besides, for different end-user applications, many powerful functions are integrated with RA8875, such as scroll function, floating window display, graphic pattern and font enlargement function. These functions will save user a large of software effort during development period.

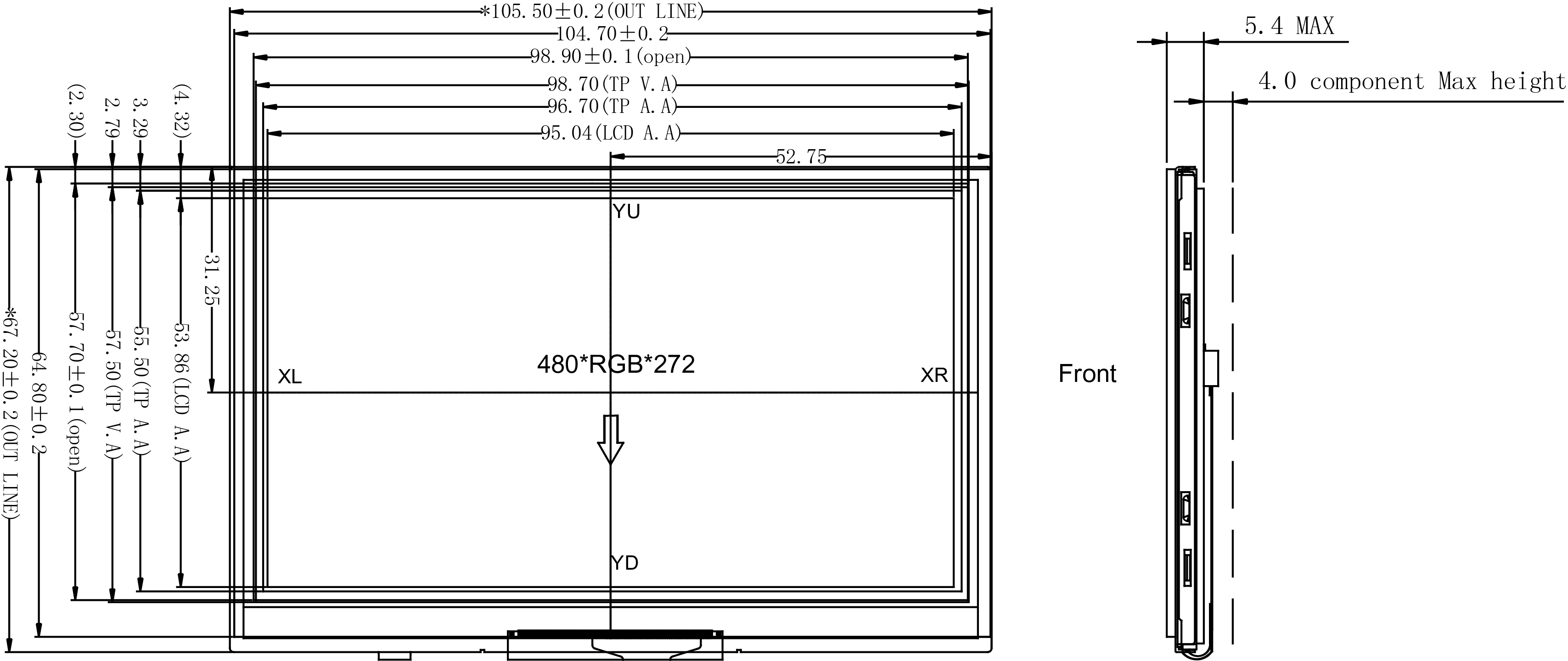

● Mechanical Data
1. Module(WxHxT)(mm):105.5*67.2*9.7
2. Active Area(mm):95.04*53.86
3. LED Numbers: 10 LEDs
● Interface Pin Function
Pin No.
Symbol
I/O
Description
1
VSS
-
Ground
2
VDD
-
Power supply for Logic,(3.3V)
3
SCS
I
SPI Chip Select.
4
SDO
O
Data output for 4-wire serial I/F.
5
SDI
I
Data input for 4-wire serial I/F.
6
SCL
I
SPI Clock input.
7
NC
I
NC, please connect it to VDD.
8
NC
I
NC, please connect it to VDD.
9
INT
-
Interrupt Signal Output
The interrupt output for MCU to indicate the status of
RA8875.
10
WAIT
-
Wait Signal Output
This is a WAIT output to indicate the RA8875 is in busy
state.
The RA8875 can’t access MCU cycle when WAIT pin is
active.
It is active low and could be used for MCU to poll busy
status by
connecting it to I/O port.
11
/RES
H/L
Reset signal
12
BL_EN
H/L
Backlight control pin. H:On \ L:Off
13
VLED+
-
Power supply for backlight driver.(3.0~5.0V)
14
VLED-
-
Power supply for backlight driver.(GND)
Level
Chip select pin for 4-wire serial I/F.
