• 2.40 inch 240x320 TFT Display, BTF024A-EHN$

2.40 inch 240x320 TFT Display

● 2.4" TFT LCD
● Resolution:240*RGB*320
● Display Type:TFT/Transmissive/Normally white
● Colors:262K
● Interface Type:MCU
● Drive IC:ST7789V
● Surface Luminance:350cd/m²
● Top:-20℃~70℃
Model : BTF024A-EHN$



BTF024A-EHN$

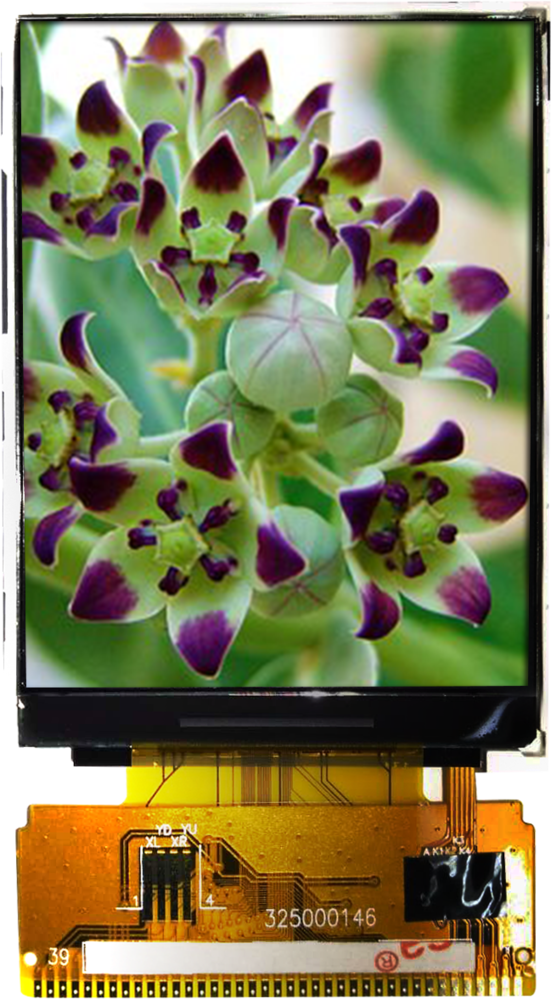

BTF024A-EHN$ is a 2.4” TFT LCD with 240*320 RGB resolution.

It is a Normally White, trasmissive type TFT with 8/16 bits80 parallel interface.

View angle for TFT is “6H” and brightness is 350 cd/m²

Drive IC used in TFT is ST7789V.

Operating temperature range is from -20℃ ~ +70℃

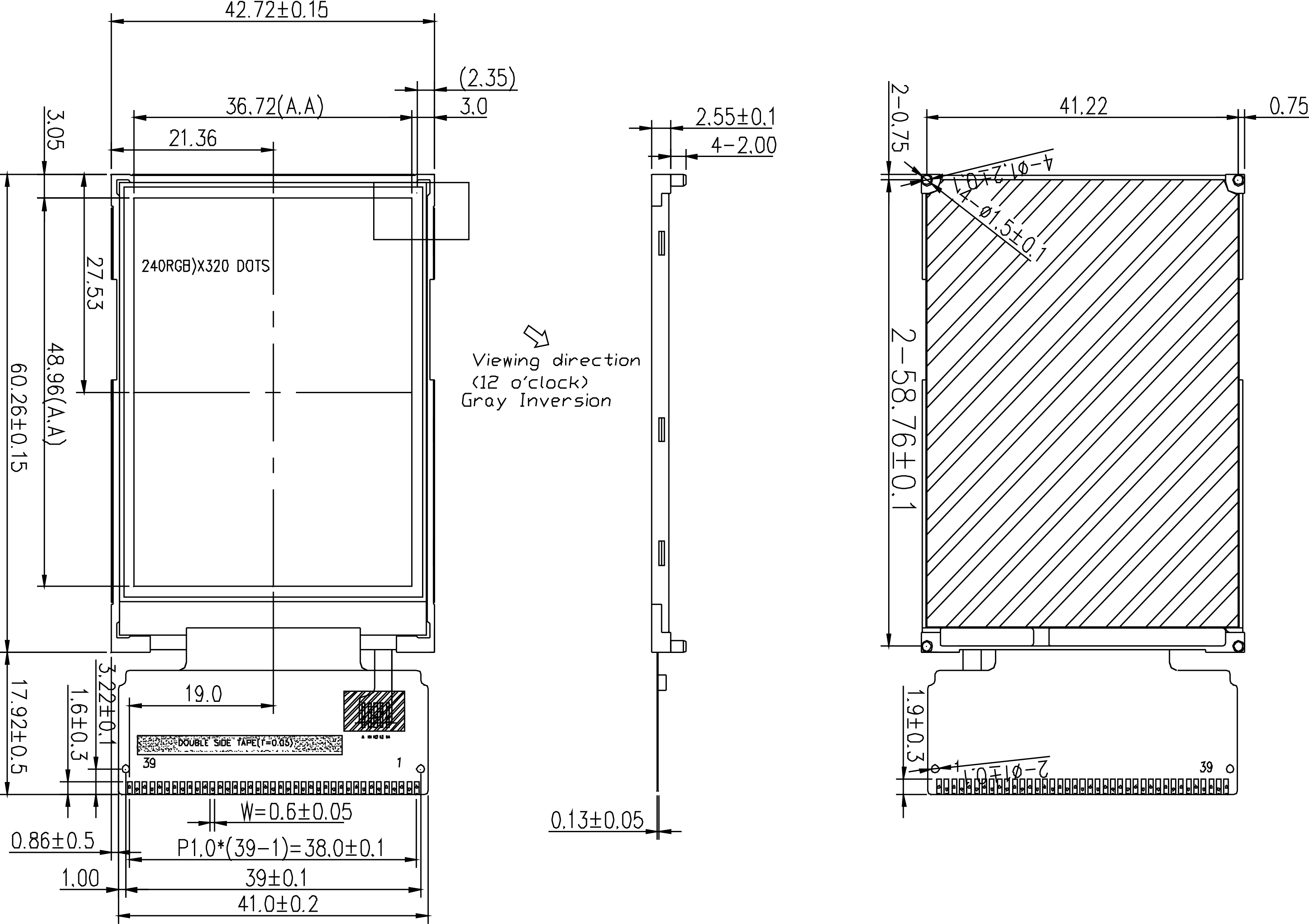

● Mechanical Data

1.    Module(WxHxT)(mm):42.72*60.26*2.55

2.    Active Area(mm):36.72*48.96

3.    LED Numbers:4 LEDs





● Interface Pin Function

No

Symbol

I/O

Description

1

GND

P

Power ground

2

LEDA

P

Power for LED backlight anode

3

LEDK4

P

Power for LED backlight cathode

4

LEDK3

P

Power for LED backlight cathode

5

LEDK2

P

Power for LED backlight cathode

6

LEDK1

P

Power for LED backlight cathode

7

GND

P

Power ground

8

NC

-

No connection

9

IM0

I

Select the MCU interface mode

10

RESET

I

Reset signal

11

D15

I/O

Data input

12

D14

I/O

Data input

13

D13

I/O

Data input

14

D12

I/O

Data input

15

D11

I/O

Data input

16

D10

I/O

Data input

17

D9

I/O

Data input

18

D8

I/O

Data input

19

D7

I/O

Data input

20

D6

I/O

Data input

21

D5

I/O

Data input

22

D4

I/O

Data input

23

D3

I/O

Data input

24

D2

I/O

Data input

25

D1

I/O

Data input

26

D0

I/O

Data input

27

RD

I

Read signal

28

WR

I

Write signal

29

RS

I

Command/data select

30

CS

I

Chip select

31

NC

-

No connection

32

VDDI

P

Low voltage power supply for interface logic circuits

33

VCI

P

High voltage power supply for analog circuit blocks

34

NC

-

No connection

35

NC

-

No connection

36

NC

-

No connection

37

NC

-

No connection

38

NC

-

No connection

39

GND

P

Power ground
