• 7.0 inch 800x480 TFT Display, BTC070BE-GBR$

7.0 inch 800x480 TFT Display

● 7.0" TFT LCD Module
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type: 4-Wire SPI
● Controller IC: RA8876
● Top:-20℃~60℃
● Support Resistive Touch Panel
Model : BTC070BE-GBR$



BTC070BE-GBR$


BTC070BE-GBR$ is a 7.0" TFT LCD with 800*RGB*480 resolution.

It is a trasmissive normally white TFT with 4-Wire SPI Interface.

Controller IC used in TFT is RA8876

BTC070BE-GBR$ Support Resistive Touch Panel


The RA8876 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8876 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8876 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

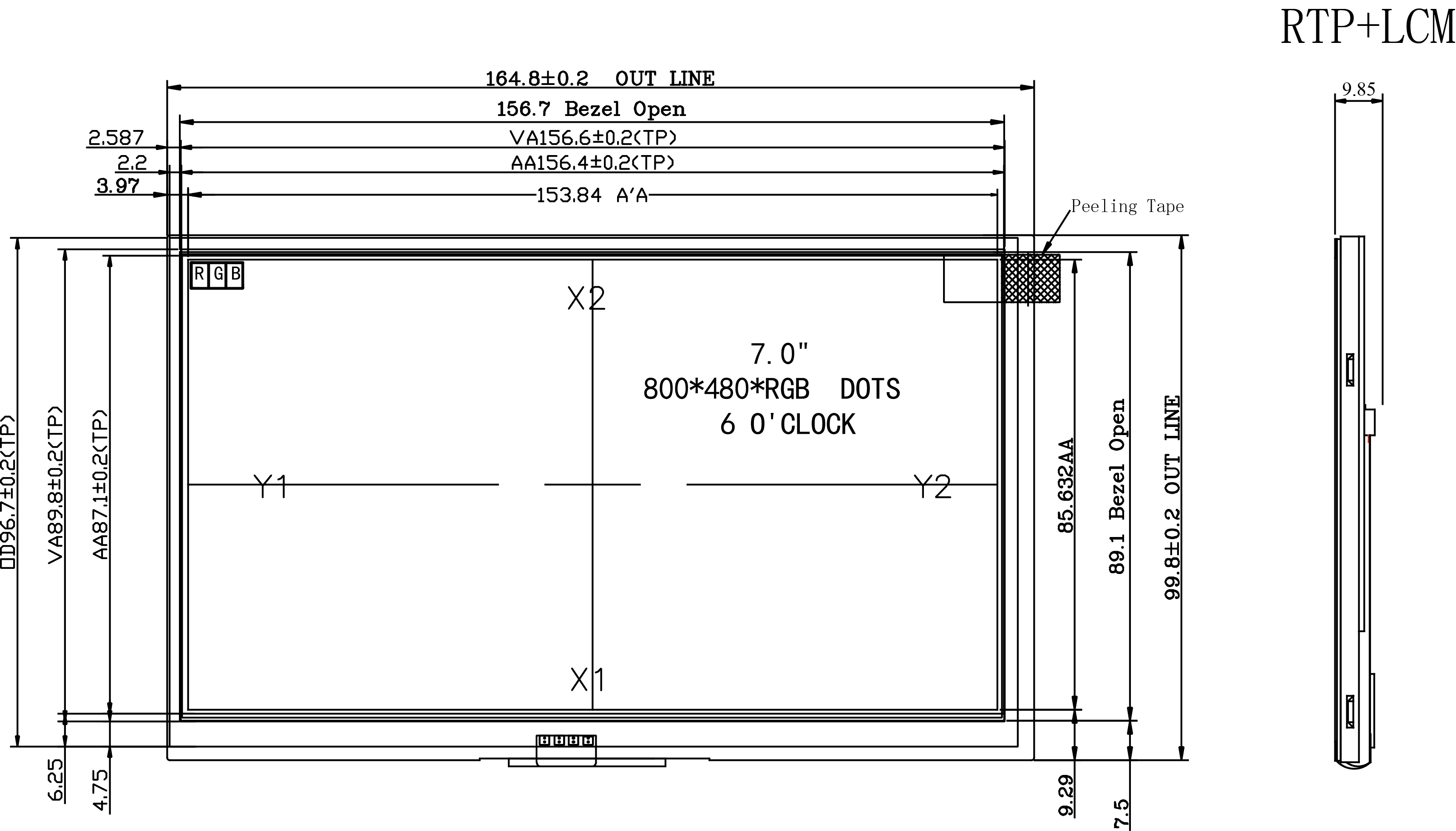

● Mechanical Data

1.    Module(WxHxT)(mm):164.8*99.8*9.85

2.    Active Area(mm): 153.84*85.632

3.    LED Numbers: 24 LEDs



● Interface Pin Function

Pin No.

Symbol

I/O
   Level

Description

1,2

VSS

-

Ground.

3,4

VDD

-

Power supply for Logic.(3.3V)

5

BL_EN

H/L

Backlight control pin. H:On \ L: Off.

6~9

VSS

-

Ground.

10

INT

-

Interrupt Signal Output.
The interrupt output for MCU to indicate the status of RA8876.

11

/RST

H/L

Reset signal.

12~15

VSS

-

Ground.

16

SCS

H/L

SPI Chip Select.

17

SDO

H/L

4-wire SPI Data Output.

18

SDI

H/L

4-wire SPI Data Input.

19

SCL

H/L

4-wire Serial clock.

20~27

VSS

-

Ground.

28

TP-CLK

H/L

External Clock Input for TP controller.

29

TP-CS

H/L

Chip Select Input for TP controller.

30

TP-INT

H/L

Interrupt output for TP controller.

31

TP-DI

H/L

Serial Data Input for TP controller.

32

TP-DO

H/L

Serial Data output for TP controller.

33,34

VLED+

-

Power supply for backlight driver.(3.0~5.0V)

35,36

VLED-

-

Power supply for backlight driver.(GND)
