• 4.30 inch 480x272 TFT Display, BTF043A-AWN$

4.30 inch 480x272 TFT Display

● 4.3" TFT LCD
● Resolution:480*272
● Display Type:TFT/Transmissive/Positive
● Interface Type:24-BIT RGB
● Drive IC:ILI6480BQ
● Surface Luminance:550cd/m²
● Top:-20℃~70℃
Model : BTF043A-AWN$



BTF043A-AWN$

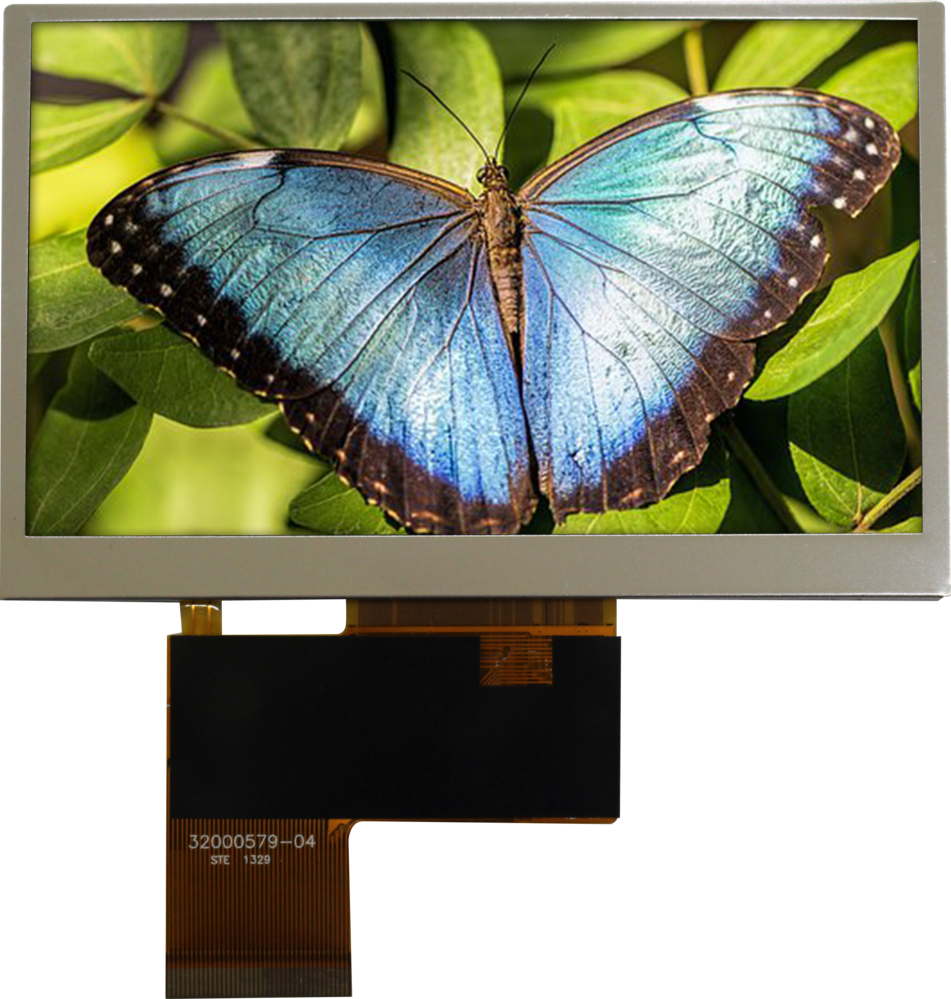

BTF043A-AWN$ is a 4.3" TFT LCD with 480*272 RGB resolution.

It is a trasmissive Positive type TFT with 24-BIT RGB Interface.

View angle for TFT is “6H” and brightness is 550 cd/m²

Drive IC used in TFT is ILI6480BQ.

Operating temperature range is from -20℃ ~ +70℃

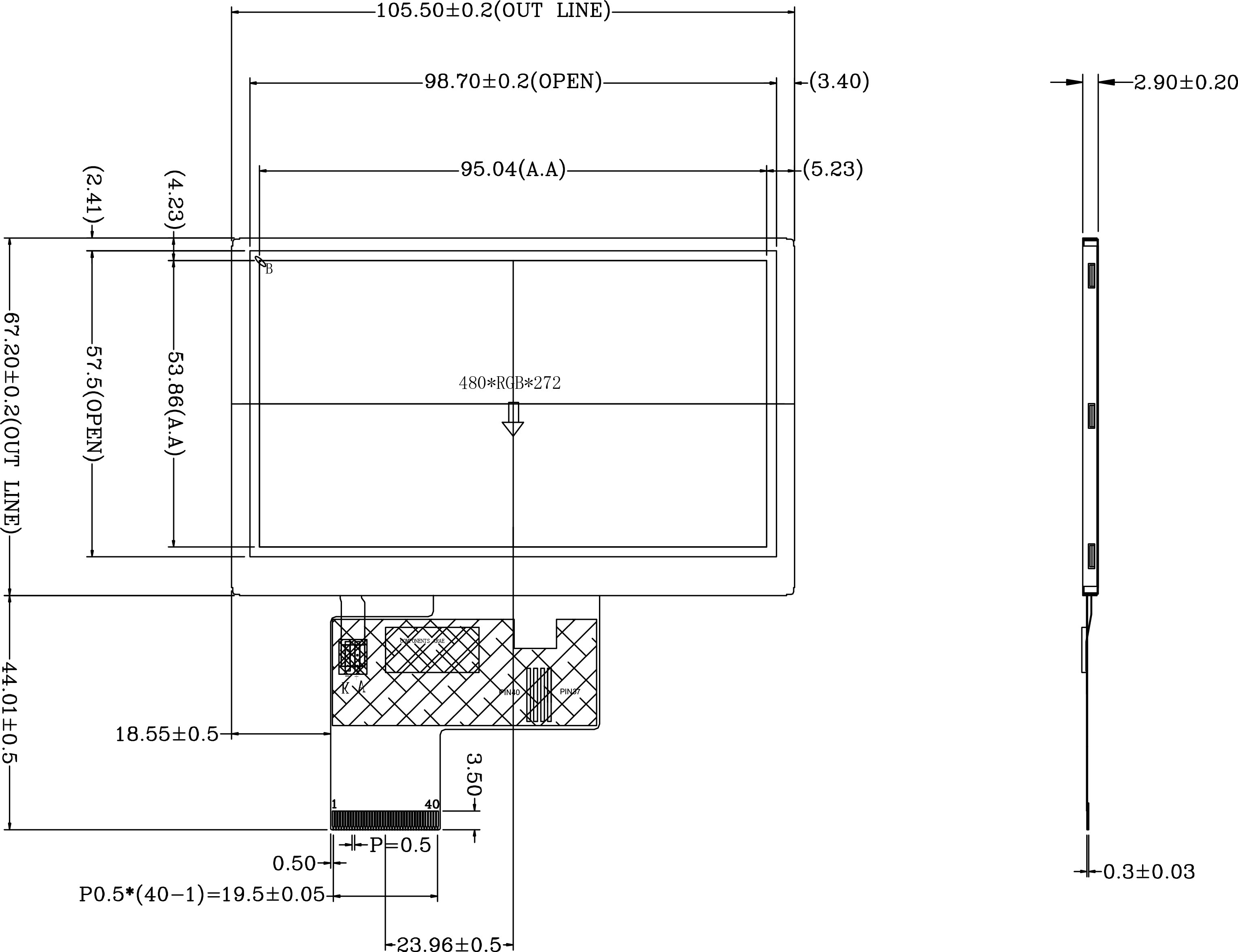

● Mechanical Data

1.    Module(WxHxT)(mm):105.5*67.2*2.9

2.    Active Area(mm):95.04*53.86

3.    LED Numbers:9 LEDs




● Interface Pin Function

No

Symbol

Description

1

LED-

Cathode of LED backlight

2

LED+

Anode of LED backlight

3

GND

Power ground

4

VDD

Power supply

5~12

R0~R7

 8-bit digital Red data input

13~20

G0~G7

 8-bit digital Green data input

21~28

B0~B7

 8-bit digital Blue data input

29

GND

Power ground

30

DCLK

Clock signal ; latching data at the falling edge

31

DISP

Display control / standby mode selection
    DISP = "Low" : standby
    DISP = "High" : Normal display(Default)

32

HSYNC

Horizontal sync signal ; negative polarity

33

VSYNC

Vertical sync signal ; negative polarity

34

DE

Data input enable. Active High to enable the data input

35

NC

No connection

36

GND

Power ground

37

NC

No connection

38

NC

No connection

39

NC

No connection

40

NC

No connection
