5.0 inch 800x480 TFT Display

● 5.0" TFT LCD Module
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type: 4-Wire SPI
● Controller IC: RA8873
● Top:-20℃~70℃
● Support Resistive Touch Panel
Model : BTC050AA-GWR$



BTC050AA-GWR$

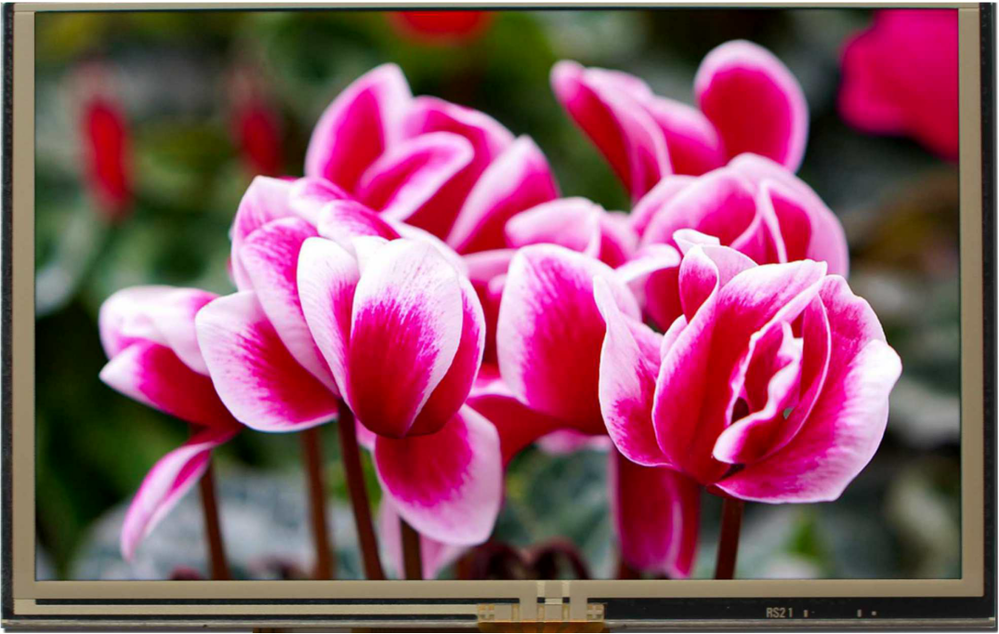

BTC050AA-GWR$ is a 5.0" TFT LCD with 800*RGB*480 resolution.

It is a trasmissive normally white TFT with 4-Wire SPI Interface.

Controller IC used in TFT is RA8873

It Support RTP (Resistive Touch Panel)


RA8873 is a low-cost color for small and medium size TFT LCD controller, and support 64M-bits external SDRAM memory. The RA8873 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8873 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror.

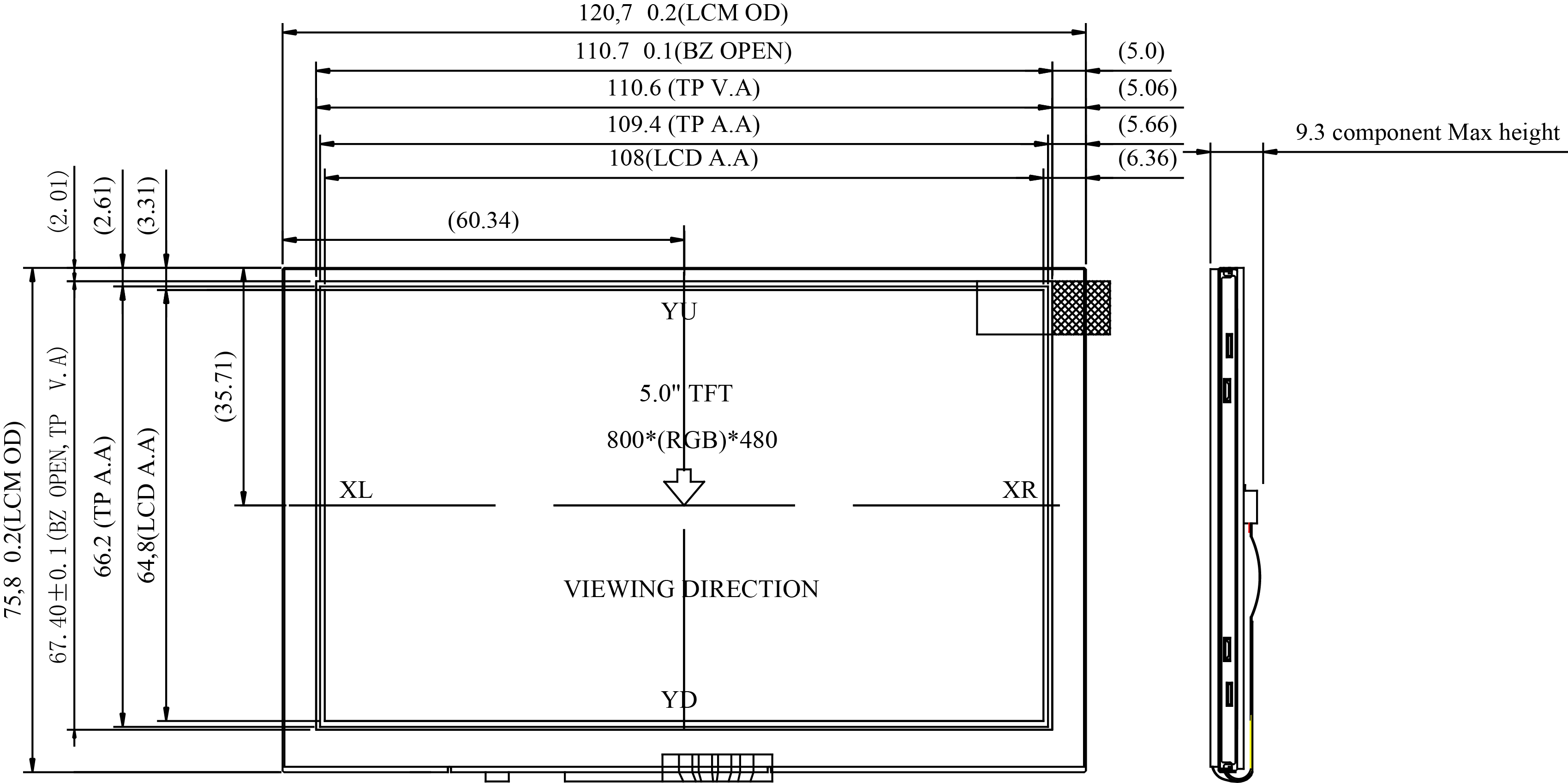

● Mechanical Data

1.    Module(WxHxT)(mm):120.7*75.8*9.5

2.    Active Area(mm):108.0*64.8

3.    LED Numbers: 12 LEDs



● Interface Pin Function

Pin No.

Symbol

I/O
   Level

Description

1,2

VSS

-

Ground.

3,4

VDD

-

Power supply for Logic.(3.3V)

5

BL_EN

H/L

Backlight control pin. H:On \ L: Off.

6~9

VSS

-

Ground.

10

INT

-

Interrupt Signal Output.
The interrupt output for MCU to indicate the status of RA8873.

11

/RST

H/L

Reset signal.

12~15

VSS

-

Ground.

16

SCS

H/L

SPI Chip Select.

17

SDO

H/L

4-wire SPI Data Output.

18

SDI

H/L

4-wire SPI Data Input.

19

SCL

H/L

4-wire Serial clock.

20~27

VSS

-

Ground.

28

TP-CLK

H/L

External Clock Input for TP controller.

29

TP-CS

H/L

Chip Select Input for TP controller.

30

TP-INT

H/L

Interrupt output for TP controller.

31

TP-DI

H/L

Serial Data Input for TP controller.

32

TP-DO

H/L

Serial Data output for TP controller.

33,34

VLED+

-

Power supply for backlight driver.(3.0~5.0V)

35,36

VLED-

-

Power supply for backlight driver.(GND)
