• 7.00 inch 1024x600 TFT Display, BTH070B-DWC$

7.00 inch 1024x600 TFT Display

● 7.0" TFTLCD Module
● Resolution:1024*3(RGB)*600
● DisplayType:TFT/Transmissive/Normally white
● Interface Type:HDMI
● Surface Luminance:300cd/m²
● Top:-20℃~70℃
● Support Capacitive Touch Panel
Model : BTH070B-DWC$



BTH070B-DWC$

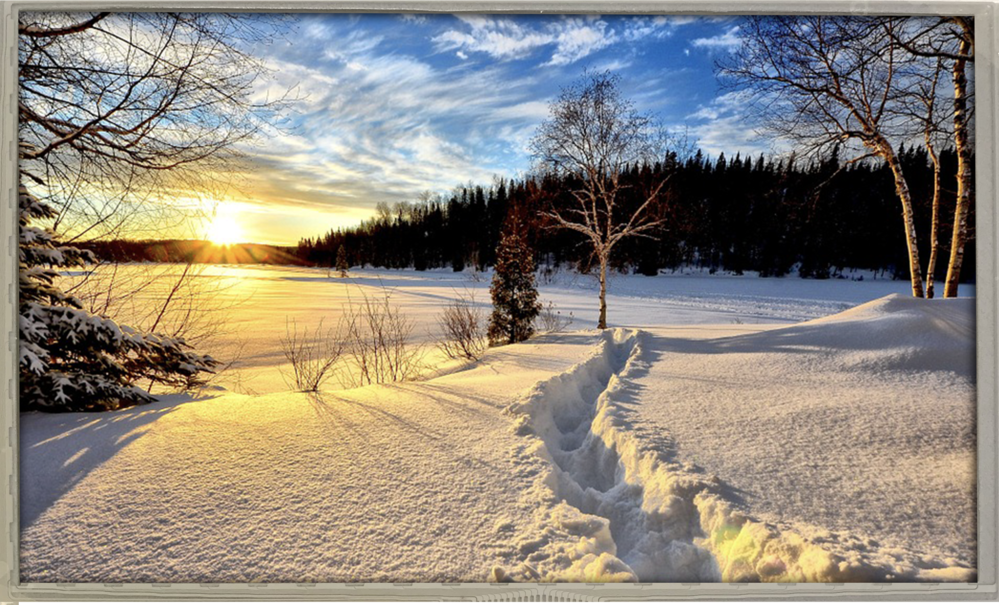

BTH070B-DWC$ is a 7.0" TFT LCD with 1024*3(RGB)*600 resolution.

It is a Normally White Trasmissive TFT with HDMI Interface.

Surface Luminance is 300 cd/m²

BTH070B-DWC$ comes with CTP (Capacitive Touch Panel)

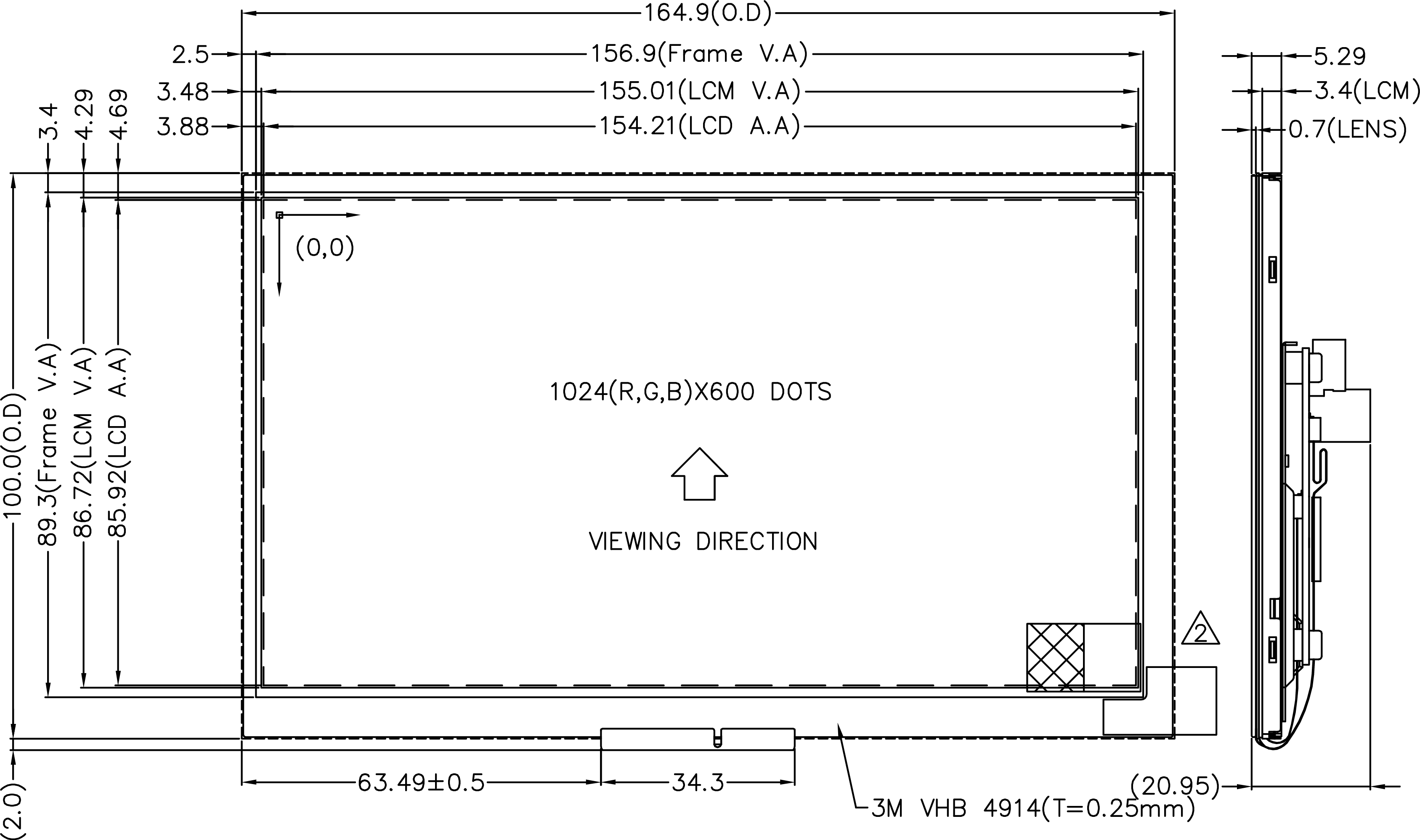

● Mechanical Data

1.    Module(WxHxT)(mm):164.9*100.0*21.2

2.    Active Area(mm):154.21*85.92

3.    LED Numbers: 30 LEDs




● HDMI Interface Pin Function

Pin#

Name

Description

1

TX2+

TMDS Data 2+

2

TX2 Shield

TMDS Data 2 Shield

3

TX2-

TMDS Data 2-

4

TX1+

TMDS Data 1+

5

TX1 Shield

TMDS Data 1 Shield

6

TX1-

TMDS Data 1-

7

TX0+

TMDS Data 0+

8

TX0 Shield

TMDS Data 0 Shield

9

TX0-

TMDS Data 0-

10

TXC+

TMDS Clock +

11

TXC Shield

TMDS Clock Shield

12

TXC-

TMDS Clock -

13

CEC

CEC

14

NC

No connection

15

SCL

Serial Clock for DDC

16

SDA

Serial Data for DDC

17

GND

Power ground

18

V5V

+5V Power

19

Hot Plug Detect

Hot Plug Detect



Capacitive Touch Panel Pin Function

Pin#

Name

Description

1

V5V

Vbus 4.4V-5.25V

2

D-

Data-

3

D+

Data+

4

ID

No connection

5

GND

Power ground.
