• 136x160 OLED Graphic Display, BL136160A

136x160 OLED Graphic Display

● OLED Display 136 x 160 dots
● Built-in controller SH1108
● 1.65V ~ 3.3 V power supply,
● OLED: Round OLED
● Color: White
Model : BL136160A


BL136160A

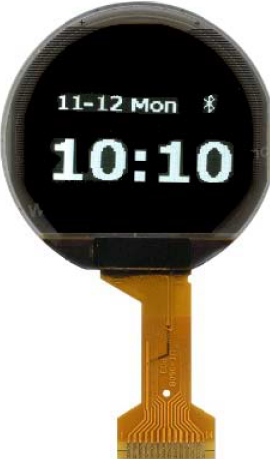

BL136160A is 1.40 inch 136x160dots Graphic OLED Display Modules.
The module dimension of BL136160A is 32.70 x 54.85 mm and Active Area is 27.18 x 23.10 mm.
It has built-in IC SH1108 and it supports SPI interface.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.

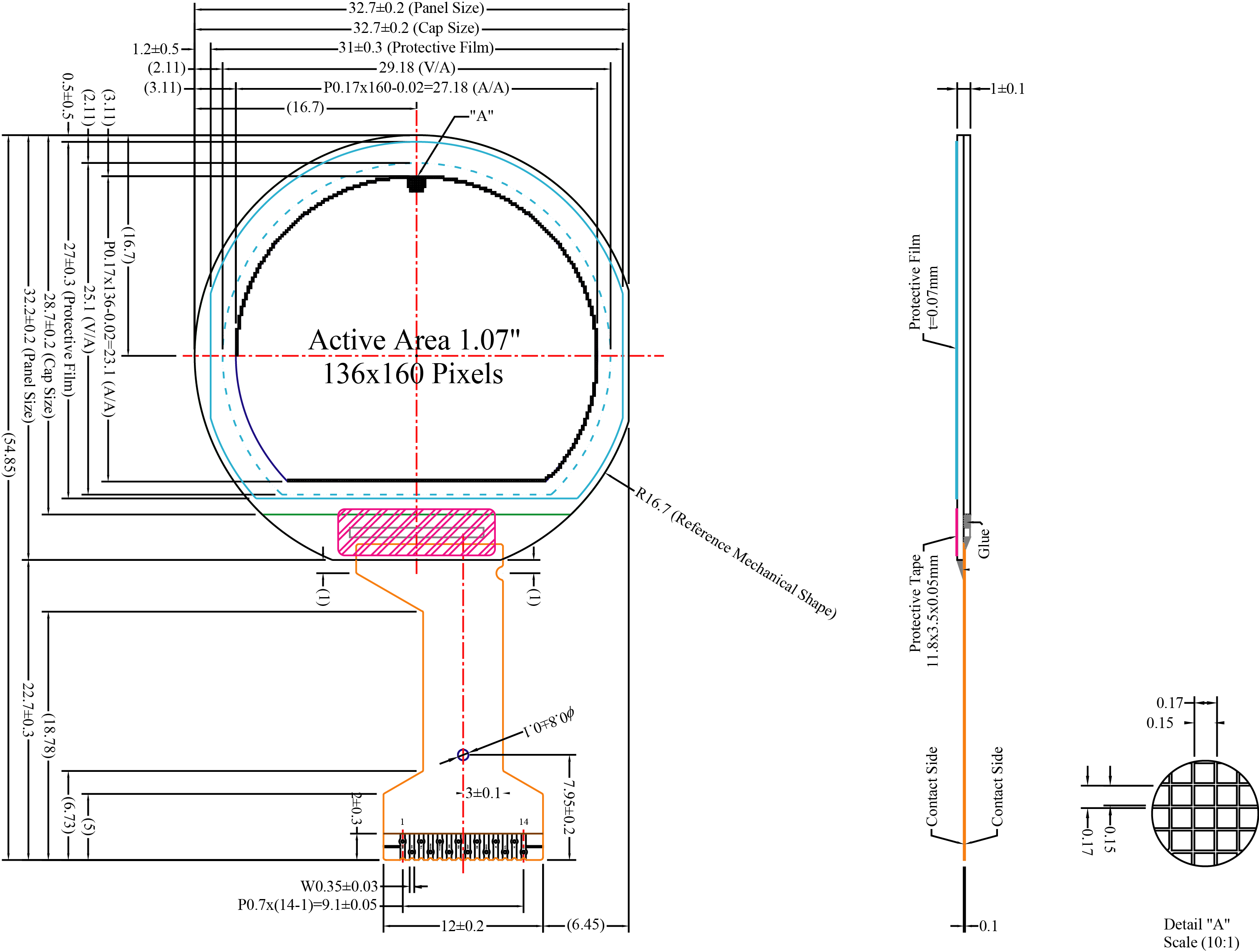

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

32.70 x 54.85

mm

Active Area

27.18 x 23.10

mm

Dot Size

 0.15 x 0.15

mm

Dot Pitch

0.17 x 0.17

mm




● Pin Assignment

Pin

Symbol

Function

1

GND

Ground

2

VPP

Power supply for panel voltage

3

VSL

Voltage Reference of Seg.

4

VSEGM

Voltage output High level for Seg.

5

VSEGH

Voltage output High level for Com.

6

GND

Ground

7

VDD

Power supply for logic.

8

IREF

Current reference for brightness.

9

CSB

Chip select pin.

10

RESB

Hardware reset pin.

11

A0

This is data/command control pin.

12

SCL

Serial Clock Input Signal

13

SI

Serial Data Input Signal

14

GND

Ground.(ESD ground)
