10.1 inch 1280x800 TFT Display

● 10.1" IPS TFT LCD Module
● Resolution: 1280*RGB*800
● Display Type:TFT/Transmissive/Normally/black
● Interface Type: Parallel
● Controller IC: RA8877
● Top: 0℃~50℃
● Support Capacitive Touch Panel
Model : BTC101AF-EAC$


BTC101AF-EAC$


BTC101AF-EAC$ is a 10.1" IPS TFT LCD with 1280*RGB*800 resolution.

It is a trasmissive normally Black TFT with parallel Interface.

Controller IC used in TFT is RA8877

BTC101AF-EAC$ supports Capacitive Touch Panel


The RA8877 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8877 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8877 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

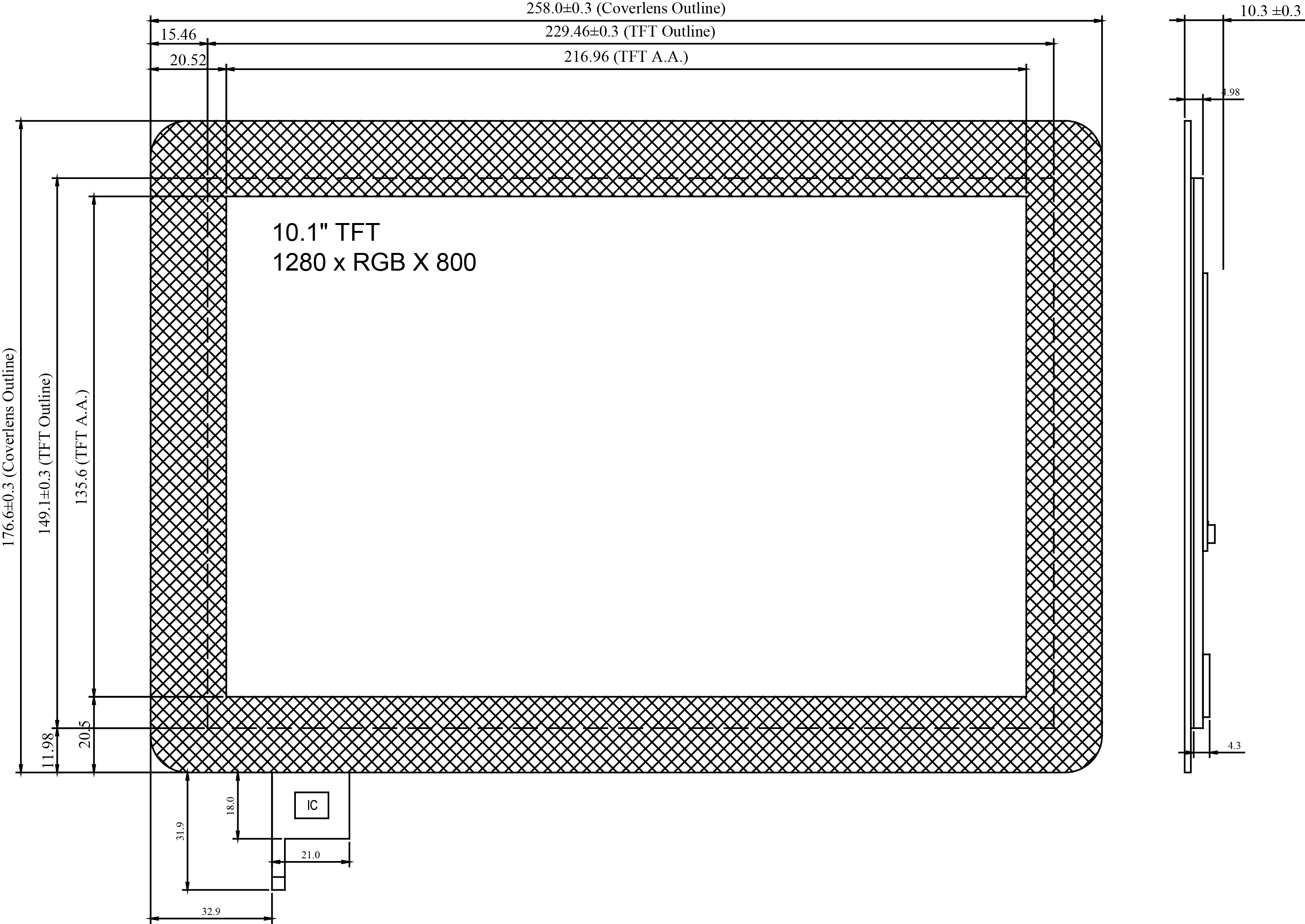

● Mechanical Data

1.    Module(WxHxT)(mm): 258*176.6*10.3

2.    Active Area(mm): 216.96*135.6

3.    LED Numbers: 30 LEDs



● Interface Pin Function

Pin No.

Symbol

I/O
Level

Description

1,2

VSS

-

Ground

3,4

VDD

-

Power supply for Logic,(3.3V)

5

BL_EN

H/L

Backlight control pin. H:On \ L: Off

6

RS

H/L

H: Data , L: Instruction

7

/WR

H/L

In 8080 series, this pin is used as /WR signal (data write) , active low.

8

/RD

H/L

In 8080 series, this pin is used as /RD signal (Data Read) , active low.

9

/CS

H/L

Chip Select input, Low active.

10

INT

-

Interrupt Signal Output.
The interrupt output for MCU to indicate the status of RA8877.

11

/RST

H/L

Reset signal

12~27

DB0~DB15

H/L

Data bus line

28

TP-CLK

-

NC.

29

TP-CS

-

NC.

30

TP-INT

-

NC.

31

TP-DI

-

NC.

32

TP-DO

-

NC.

33,34

VLED+

-

Power supply for backlight driver.(5.0V)

35,36

VLED-

-

Power supply for backlight driver.(GND)



● CTP Pin Function

Pin No.

Symbol

I/O
    Level

Description

1

VDD

-

Power supply pin.

2

/RST

I

Reset pin.

3

INT

O

Interrupt output.

4

SDA

I/O

I2C DATA signal input/output.

5

SCL

I

I2C CLOCK signal input.

6

GND

-

Ground
