• 160x128 OLED Graphic Display, BL160128A

160x128 OLED Graphic Display

● OLED Display 160 x 128 dots
● Built-in controller SSD1353
● + 3.3V single power supply,
with Built-in positive voltage
● 1/128 duty cycle
● Color: 262K color
● Option: external positive voltage for LCD
● Option: SPI interface
Model : BL160128A



BL160128A

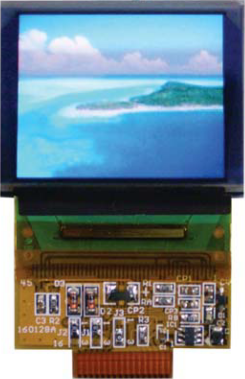

BL160128A is 1.77 inch 160 x 128 dots RGB Graphic OLED Display Modules.

The module dimension of BL160128A is 42.7 x 33.4 mm and Active Area is 35.015 x 28.012 mm.

It has built-in IC SSD1353 and it supports Parallel/ SPI interface.

BL160128A required + 3.3V single power supply, with Built-in positive voltage.

As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.

BL64128A is 1.77 inch 160 x 128 dots RGB Graphic OLED and offers 262K Color.

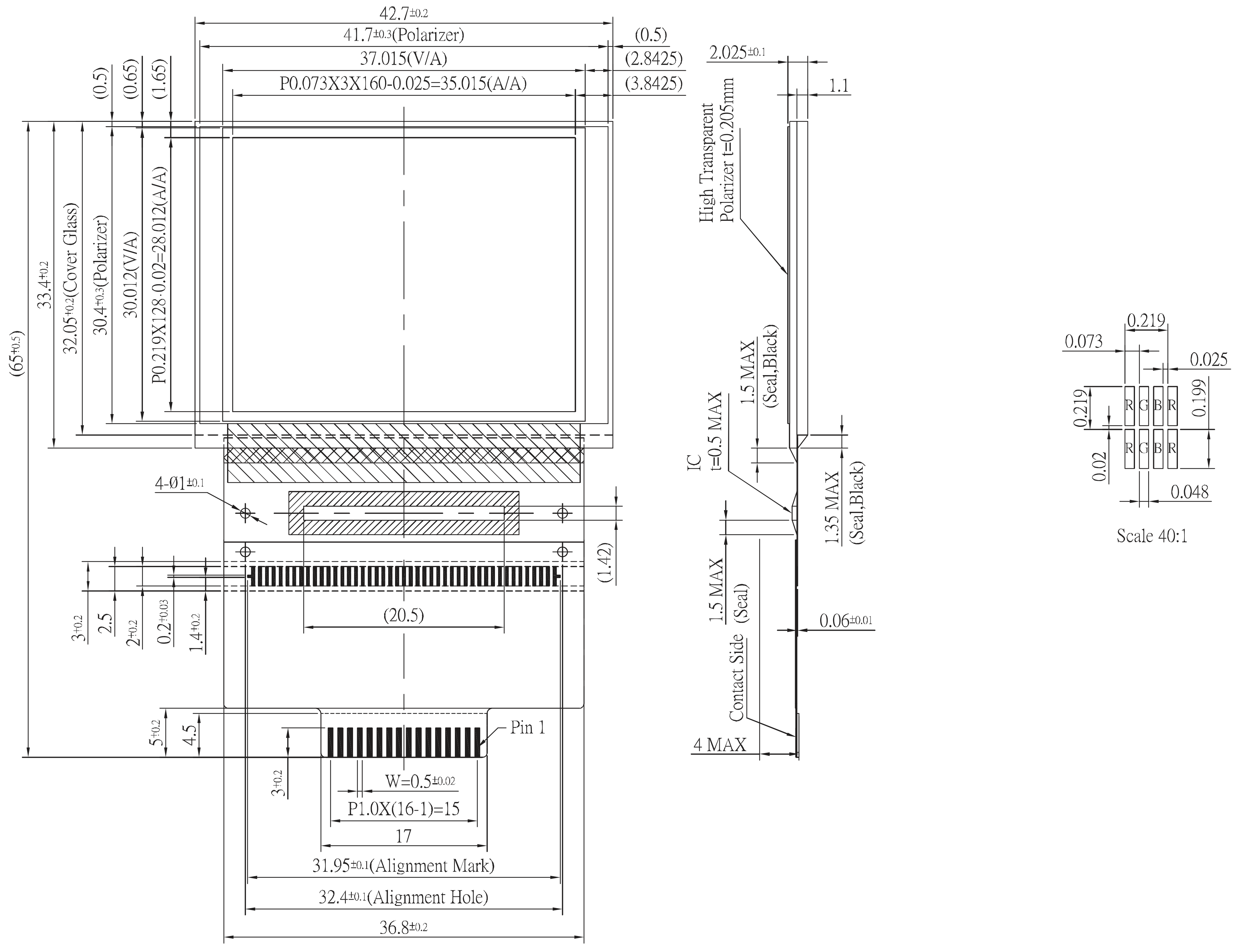

 Mechanical Data

Item

Standard Value

Unit

Module Dimension

42.7 x 33.4

mm

Viewing Area

37.015 x 30.012

mm

Dot Size

 0.048 x 0.199

mm

Dot Pitch

0.073 x 0.219

mm




● Pin Assignment

Pin

Symbol

Function

1

Vss

Ground

2

Vdd

Power supply for logic

3

CS

Chip select input

4

RES

Reset signal

5

D/C

Data/Command select

6

WR

Write signal

7

RD

Read signal

8~15

DB0~DB7

Data bus

16

DISPOFF/Vcc

Display OFF/power supply for LCD
