5.00 inch 800x480 TFT Display

● 5.0" TFTLCD
● Resolution:800*480
● DisplayType:TFT/Transmissive/Positive
● Interface Type:24-BIT RGB
● Drive IC:ILI5960+ILI6122
● Surface Luminance:450cd/m²
● Top:-20℃~70℃
Model : BTF050A-AWN$



BTF050A-AWN$


BTF050A-AWN$ is a 5.0" TFT LCD with 800*480 RGB resolution.

It is a trasmissive Positive TFT with 24-BIT RGB Interface.

View angle for TFT is “6H” and brightness is 450 cd/m²

Drive IC used in TFT is ILI5960+ILI6122

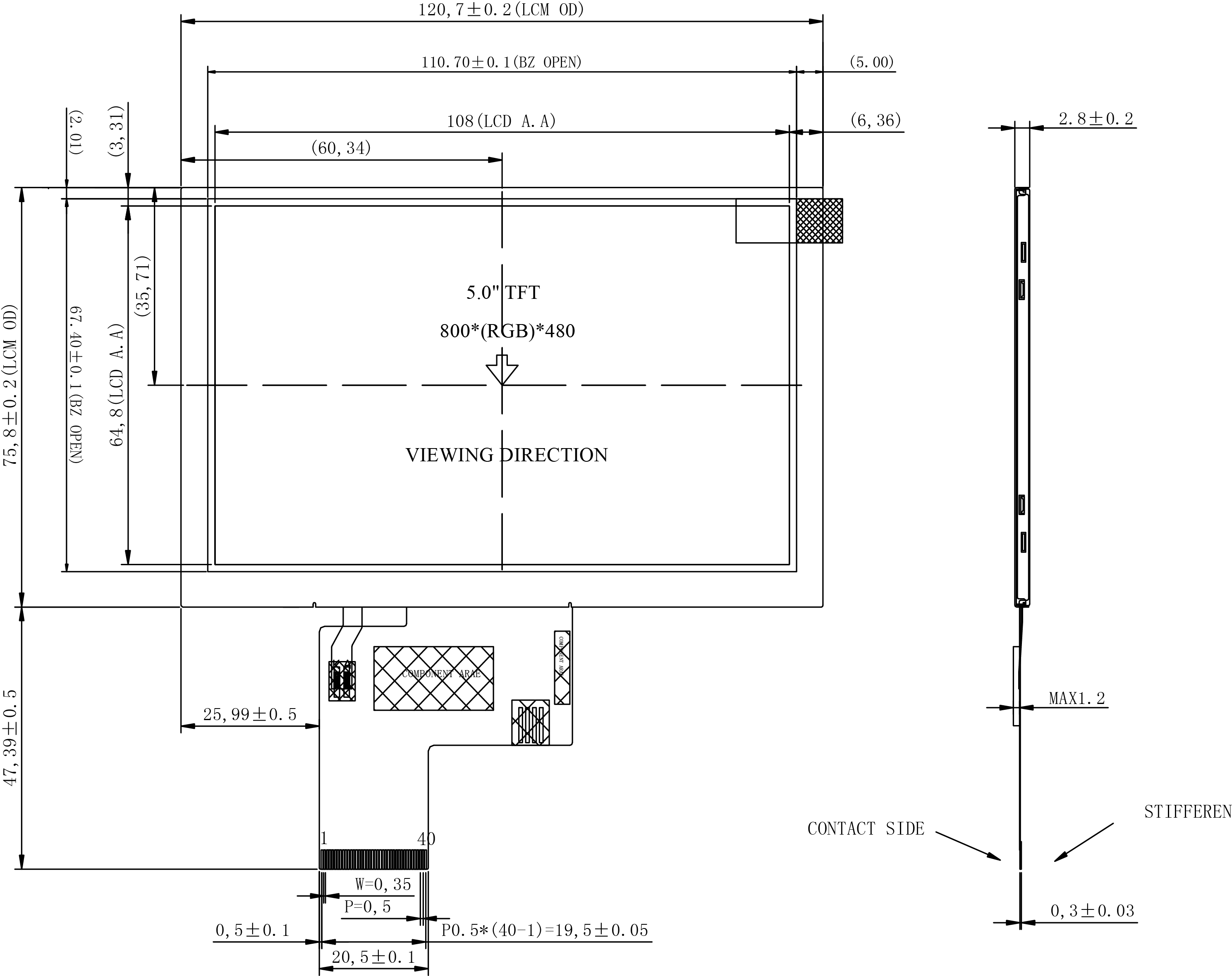

● Mechanical Data

1.    Module(WxHxT)(mm):120.7*75.8*2.8

2.    Active Area(mm):108*64.8

3.    LED Numbers:12LEDs




● Interface Pin Function

No

Symbol

Description

1

LED-

Cathode of LED backlight

2

LED+

Anode of LED backlight

3

GND

Power ground

4

VDD

Power voltage

5~12

R0~R7

Red data

13~20

G0~G7

Green data

21~28

B0~B7

Blue data

29

GND

Power ground

30

DCLK

Pixel clock

31

DISP

Display on/off

32

HSYNC

Horizontal sync signal

33

VSYNC

Vertical sync signal

34

DE

Data enable

35

NC

No connect

36

GND

Power ground

37

NC

No connect

38

NC

No connect

39

NC

No connect

40

NC

No connect
