7.00 inch 800x480 TFT Display

● 7.0" TFT LCD
● Resolution:800*480
● Display Type:TFT/Transmissive/Positive
● Interface Type: 24-BIT RGB
● Drive IC: EK9713+EK73002
● Surface Luminance:320cd/m²
● Top:-20℃~70℃
● Support Resistive Touch Panel
Model : BTF070A-AWR$


BTF070A-AWR$


BTF070A-AWR$ is a 7.0" TFT LCD with 800*480 RGB resolution.

It is a Positive Trasmissive TFT with 24-BIT RGB Interface.

View angle for TFT is “6H” and brightness is 320 cd/m²

Drive IC used in TFT is EK9713+EK73002

BTF070A-AWR$ comes with RTP (Resistive Touch Panel).

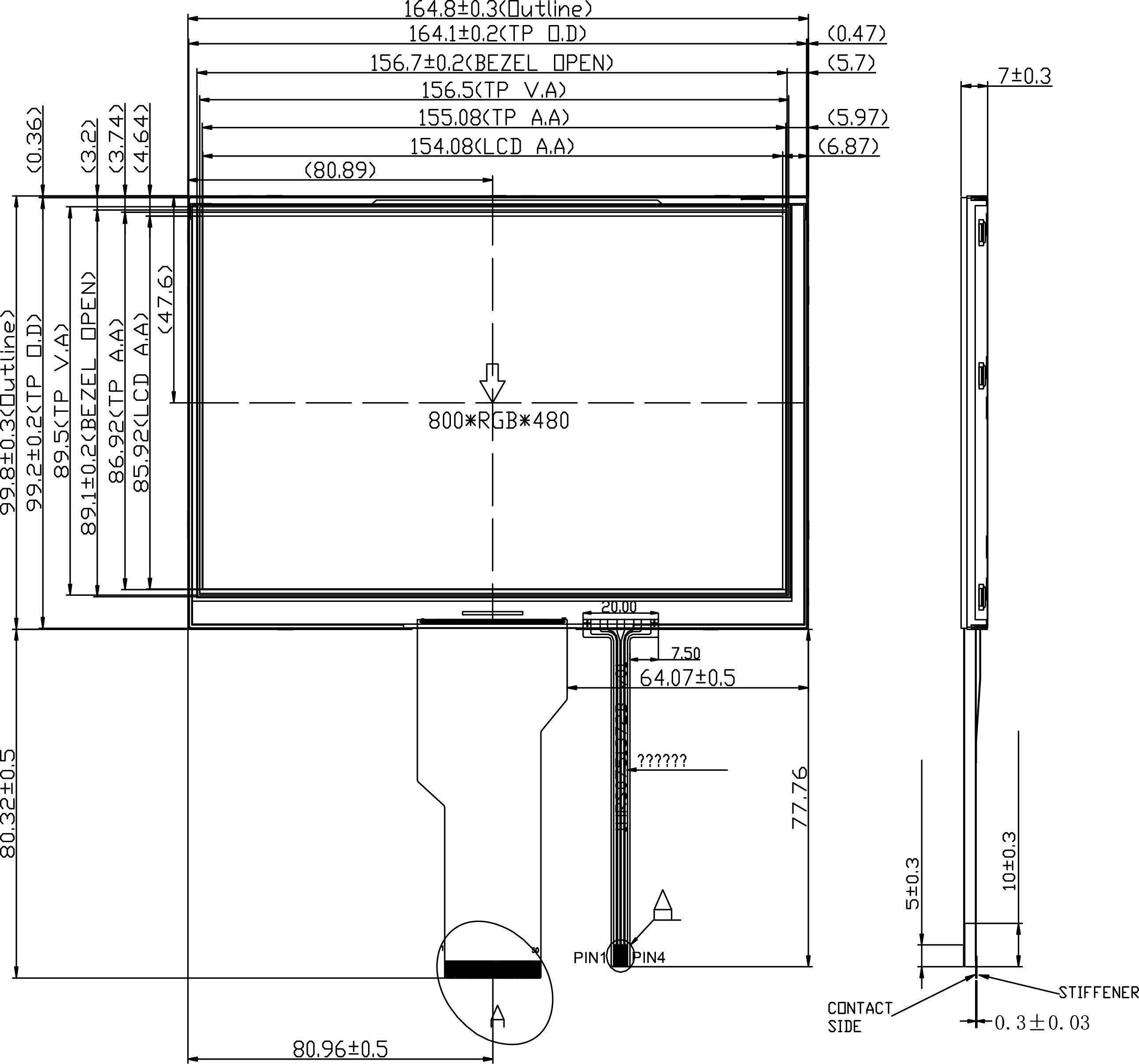

● Mechanical Data

1.    Module (WxHxT)(mm):164.8*99.8*7.0

2.    Active Area(mm):154.08*85.92

3.    LED Numbers:21LEDs




● Interface Pin Function

Pin No

Symbol

Description

1

LED+

Anode of LED backlight

2

LED+

Anode of LED backlight

3

LED-

Cathode of LED backlight

4

LED-

Cathode of LED backlight

5

GND

Power ground

6

VCOM

Common voltage

7

DVDD

Power for digital circuit

8

MODE

DE/SYNC mode select

9

DE

Data input enable

10

VS

Vertical sync input

11

HS

Horizontal sync input

12

B7

Blue data (MSB)

13~18

B6~B1

Blue data

19

B0

Blue data (LSB)

20

G7

Green data (MSB)

21~26

G6~G1

Green data

27

G0

Green data (LSB)

28

R7

Red data (MSB)

29~34

R6~R1

Red data

35

R0

Red data (LSB)

36

GND

Power Ground

37

DCLK

Sample clock

38

GND

Power Ground

39

L/R

Left / right selection

40

U/D

Up/down selection

41

VGH

Gate ON Voltage

42

VGL

Gate OFF Voltage

43

AVDD

Power for Analog Circuit

44

RESET

Global reset pin

45

NC

No connection

46

VCOM

Common Voltage

47

DITHB

Dithering function

48

GND

Power Ground

49

NC

No connection

50

NC

No connection
