• 320x132 OLED Graphic Display, BL320132A

320x132 OLED Graphic Display

● OLED Display 320 x 132 dots
● Built-in controller SSD1320Z *2
● +1.65~ +3.5V single power supply
● 1/132 duty cycle
● Color: white
● SPI Interface
Model : BL320132A


BL320132A


BL320132A is 3.83 inch 256X64 dots Graphic OLED Display Modules.

The module dimension of BL320132A is 145.52 X 41.672 mm and Active Area is 89.90 X 37.072 mm.

It has built-in IC SSD1320Z and it supports SPI interface.

BL320132A required +1.65~ +3.5V single power supply.

As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.

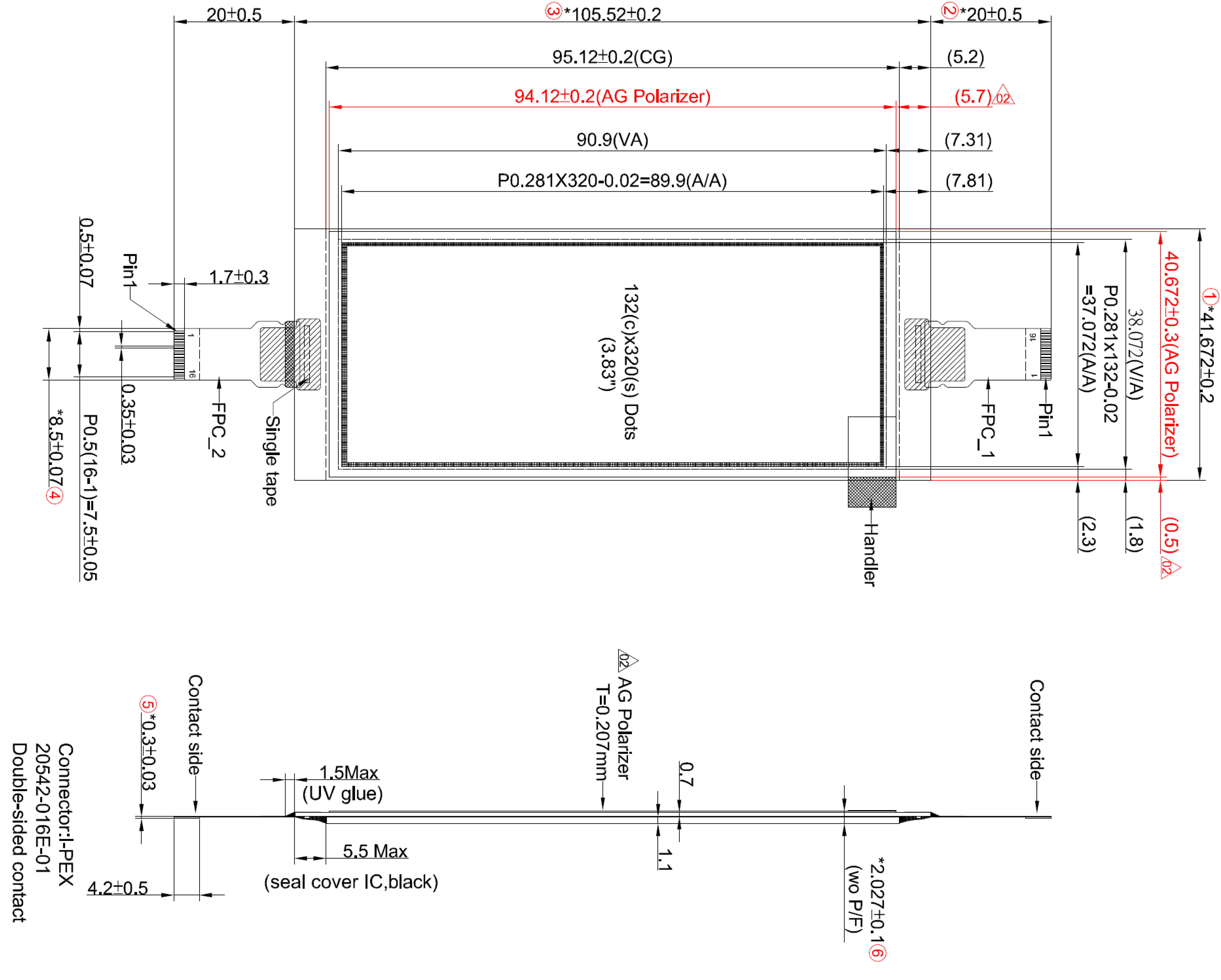

 Mechanical Data

Item

Standard Value

Unit

Module Dimension

145.52 x 41.672

mm

Active Area

89.90 x 37.072

mm

Dot Size

 0.261 x 0.261

mm

Dot Pitch

0.281 x 0.281

mm




● Pin Assignment

FPC_1

FPC_2

Pin

Symbol

Pin

Symbol

1

VCC

1

VCC

2

VCOMH_1

2

VCOMH_2

3

VSL_1

3

VSL_2

4

VLSS

4

VLSS

5

VP_1

5

VP_2

6

VDD

6

VDD

7

FR_1

7

FR_2

8

CS#_1

8

CS#_2

9

RES#

9

RES#

10

D/C#

10

D/C#

11

D0(SCLK)

11

D0(SCLK)

12

D1(SDIN)

12

D1(SDIN)

13

VSS

13

VSS

14

VLSS

14

VLSS

15

IREF_1

15

IREF_2

16

VCC

16

VCC
