7.0 inch 1024x600 TFT Display

● 7.0" IPS TFT LCD Module
● Resolution:1024*RGB*600
● Display Type:TFT/Transmissive/Normally/black
● Interface Type: Parallel
● Controller IC: RA8877
● Top:-20℃~70℃
● Support Capacitive Touch Panel
Model : BTC070CF-EFC$



BTC070CF-EFC$


BTC070CF-EFC$ is a 7.0" IPS TFT LCD with 1024*RGB*600 resolution.

It is a trasmissive normally Black TFT with parallel Interface.

Controller IC used in TFT is RA8877

BTC070CF-EFC$ supports Capacitive Touch Panel


The RA8877 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8877 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8877 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

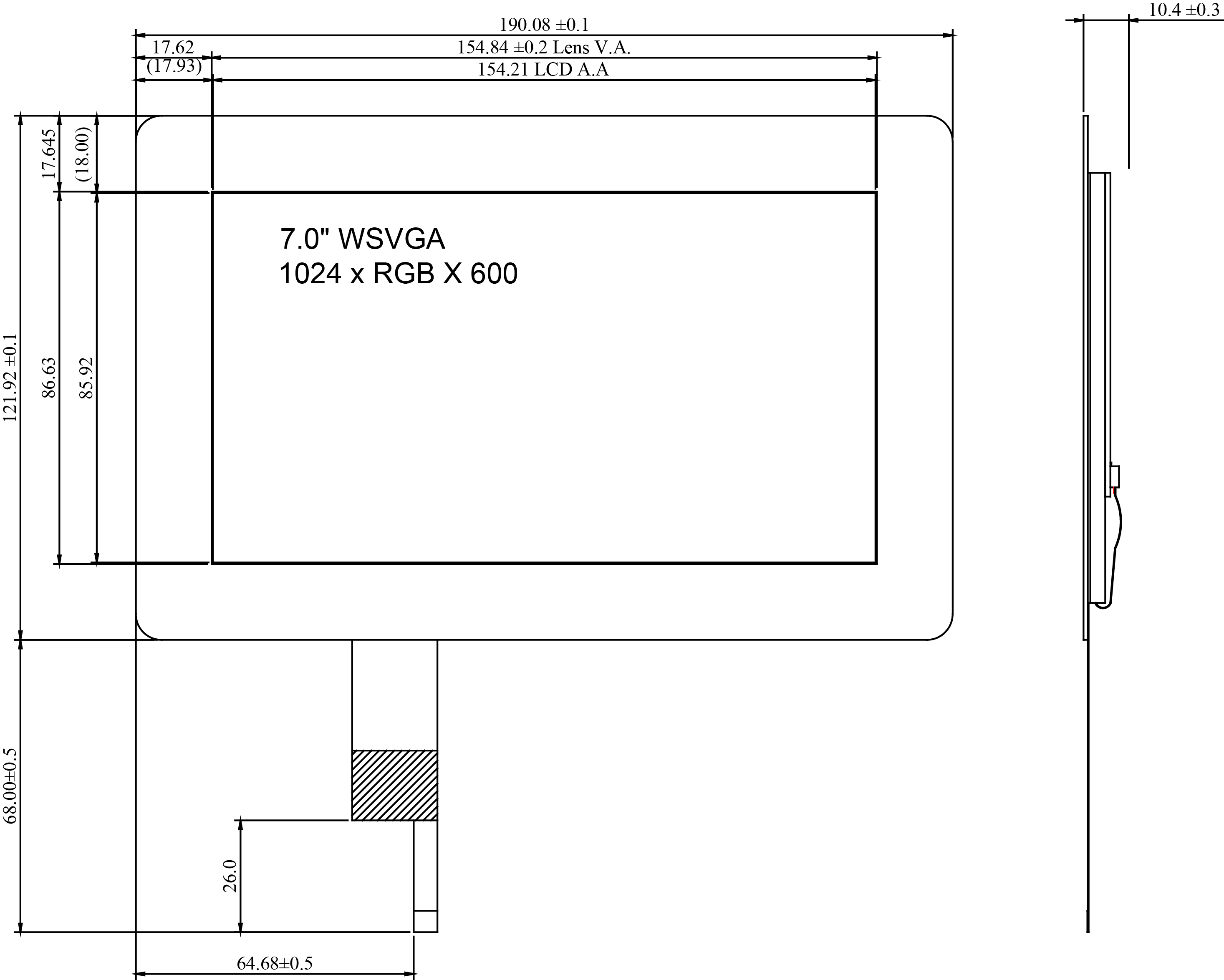

● Mechanical Data

1.    Module(WxHxT)(mm): 190.08*121.92*10.4

2.    Active Area(mm): 154.21*85.92

3.    LED Numbers: 30 LEDs



● Interface Pin Function

Pin No.

Symbol

I/O
     Level

Description

1,2

VSS

-

Ground

3,4

VDD

-

Power supply for Logic,(3.3V)

5

BL_EN

H/L

Backlight control pin. H:On L: Off

6

RS

H/L

H: Data , L: Instruction

7

/WR

H/L

In 8080 series, this pin is used as /WR signal (data write) , active low.

8

/RD

H/L

In 8080 series, this pin is used as /RD signal (Data Read) , active low.

9

/CS

H/L

Chip Select input, Low active.

10

INT

-

Interrupt Signal Output.
The interrupt output for MCU to indicate the status of RA8877.

11

/RST

H/L

Reset signal

12~27

DB0~DB15

H/L

Data bus line

28

TP-CLK

-

NC.

29

TP-CS

-

NC.

30

TP-INT

-

NC.

31

TP-DI

-

NC.

32

TP-DO

-

NC.

33,34

VLED+

-

Power supply for backlight driver.(5.0V)

35,36

VLED-

-

Power supply for backlight driver.(GND)



● CTP Pin Function

Pin No.

Symbol

I/O
Level

Description

1

NC

-

NC

2

NC

-

NC

3

/RST

I

Reset pin.

4

GND

-

Ground

5

INT

O

Interrupt output.

6

SDA

I/O

I2C DATA signal input/output.

7

SCL

I

I2C CLOCK signal input.

8

GND

-

Ground

9

GND

-

Ground

10

VDD

-

Power supply pin.
