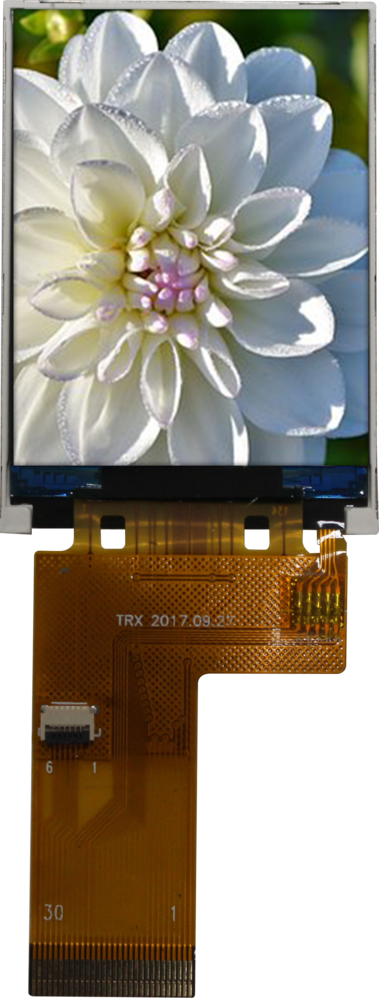

2.00 inch 240x320 TFT Display

● 2.0" TFT LCD
● Resolution:240*RGB*320
● Display Type:TFT/Transmissive
● Interface Type:MCU
● Drive IC:ST7789V
● Surface Luminance:250cd/m²
● Viewing Direction:ALL
● Top:-10℃~60℃

Model : BTF020A-JAN$

Q'ty :

Description
Specifications

BTF020A-JAN$

BTF020A-JAN$ is a 2.0” TFT LCD with 240*320 RGB resolution.

It is a trasmissive type TFT with 8 bits 80 parallel interface/SPI.

View angle for TFT is “All” and brightness is 250 cd/m²

Drive IC used in TFT is ST7789V.

Operating temperature range is from -10℃ ~ +60℃

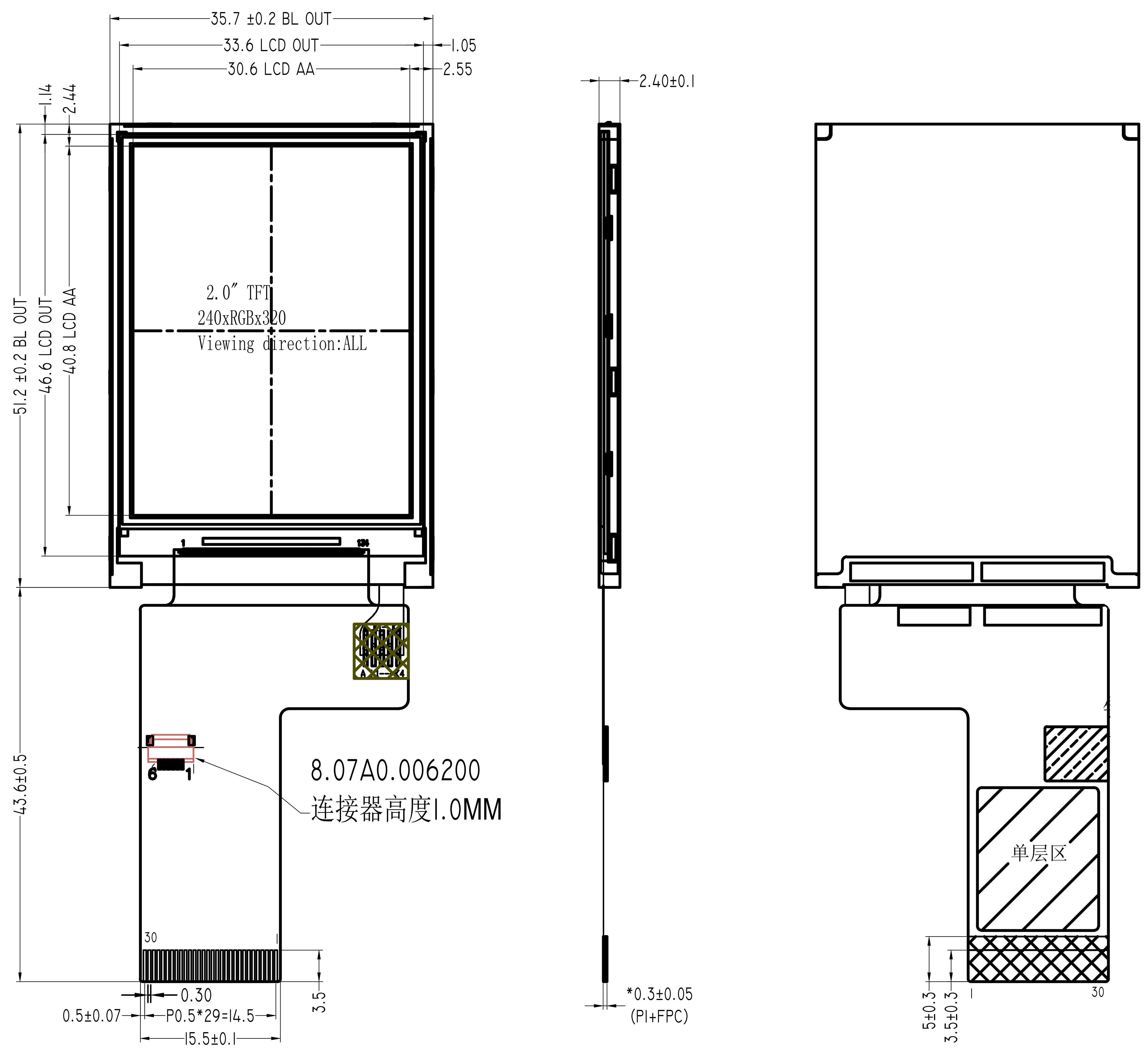

● Mechanical Data

1. Module(WxHxT)(mm):35.7*51.2*2.4

2. Active Area(mm):30.6*40.8

3. LED Numbers:3 LED

● Interface Pin Function

No	Symbol	I/O	Description
1	GND	P	Ground
2	VCC	P	Power Supply
3	IM2	I	Interface Select
4	IM1	I	Interface Select
5	RESET	I	Reset
6	CS	I	Chip Select
7	DC	I	Data/Command Select pin(SPI-SCL)
8	WR	I/O	Write Signal And Write Data(SPI-RS)
9	RD	I/O	Read Signal And Write Data
10	SDA	I/O	SPI Date
11	DB0	I	Data Bus Serial
12	DB1	I
13	DB2	I
14	DB3	I
15	DB4	I
16	DB5	I
17	DB6	I
18	DB7	I
19	SDO	O	-
20	LEDA	P	GND
21	LEDK	P	GND
22	LEDK	P	GND
23	LEDK	P	GND
24	LEDK	P	GND
25	GND	P	GND
26	NC	I	TP Control
27	NC	I
28	NC	I/O
29	NC	I
30	GND	P	GND
