10.1 inch 1280x800 TFT Display

● 10.1" IPS TFT LCD Module
● Resolution: 1280*RGB*800
● Display Type:TFT/Transmissive/Normally/black
● Interface Type: 4-Wire SPI
● Controller IC: RA8877
● Top: 0℃~50℃
● Support Capacitive Touch Panel
Model : BTC101AF-GAC$



BTC101AF-GAC$


BTC101AF-GAC$ is a 10.1" IPS TFT LCD with 1280*RGB*800 resolution.

It is a trasmissive normally Black TFT with 4-Wire SPI Interface.

Controller IC used in TFT is RA8877

BTC101AF-GAC$ supports Capacitive Touch Panel


The RA8877 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8877 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8877 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

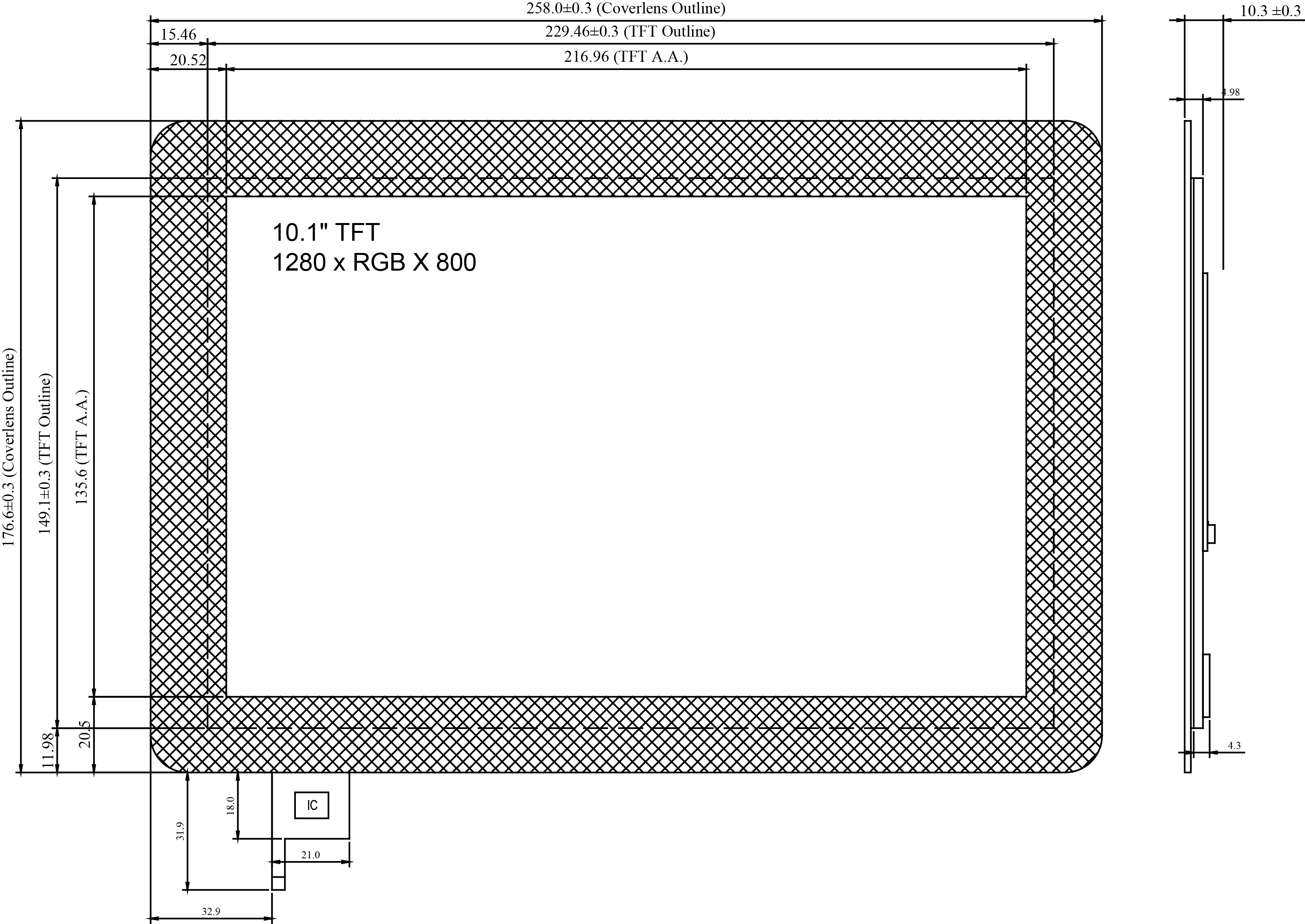

● Mechanical Data

1.    Module(WxHxT)(mm): 258*176.6*10.3

2.    Active Area(mm): 216.96*135.6

3.    LED Numbers: 30 LEDs



● Interface Pin Function

Pin No.

Symbol

I/O
    Level

Description

1

VSS

-

Ground

2

VDD

-

Power supply for Logic,(3.3V)

3

BL_EN

H/L

Backlight control pin. H:On \ L: Off

4~10

VSS

-

Ground

11

SCS

H/L

SPI Chip Select

12

SDO

H/L

4-wire SPI Data Output

13

SDI

H/L

4-wire SPI Data Input

14

SCL

H/L

4-wire Serial clock.

15

VSS

-

Ground

16

/RST

H/L

Reset signal

17

WAIT

-

Wait Signal Output. When high, it indicates that the                controller is ready to transfer data.

18

INT

-

Interrupt Signal Output.
The interrupt output for MCU to indicate the status of controller.

19

VLED+

-

Power supply for backlight driver.(5.0V)

20

VLED-

-

Power supply for backlight driver.(GND)



● CTP Pin Function

Pin No.

Symbol

I/O
    Level

Description

1

VDD

-

Power supply pin.

2

/RST

I

Reset pin.

3

INT

O

Interrupt output.

4

SDA

I/O

I2C DATA signal input/output.

5

SCL

I

I2C CLOCK signal input.

6

GND

-

Ground
