GRAPHIC

Graphic OLED is meant to display images, letters and numbers.

For example, a 128 x 64 OLED would contain 128 horizontal dots and 64 Vertical dots.

Bolymin is a leading manufacturer of Graphic OLED modules in Taiwan.

We offer many standard graphic OLED, including 64x128, 128x32, 128x56, 128x64, 128x96, 136x160,160x128, 256x64, 320x132 and also provide customized LCD.

Bolymin Graphic OLED is available in White and Yellow color options and offer Parallel or serial MPU interface (4 / 8-bit 6800 series parallel and I²C interface).

Inch	Display Format	Photo	Model No.	Module Size	Active Area	Dot Size (mm)	Interface	Compatible with Controller
0.96	64x128		BL64128A	14.86x28.4	10.924x21.74	0.037x0.15	Parallel / SPI	SSD1357
1.04	128x32		BL12832B	30.4x14.5	25.58x6.38	0.18x0.18	SPI	SSD1305
1.04	128x32		BL12832B1	30.4x14.5	25.58x6.38	0.18x0.18	SPI	SSD1305
1.04	128x32		BL12832B2	30.4x14.5	25.58x6.38	0.18x0.18	SPI	SSD1305
1.51	128x56		BL12856A	42.04x63.2	35.05x15.32	0.254x0.254	Parallel / SPI / I2C	SSD1309
2.42	128x64		BL12864G2	75.0x52.7	55.01x27.49	0.4x0.4	Parallel / SPI / I2C	SPD0301
1.54	128x64		BL12864S	44.0x38.0	35.052x17.516	0.254x0.254	SPI / I2C	SPD0301
1.32	128x96		BL12896A	33.0x26.8	26.86x20.14	0.19x0.19	Parallel / SPI	SSD1329
1.27	128x96		BL12896D	33.7x26.9	25.708x19.28	0.047x0.185	Parallel / SPI	SSD1351U3
1.40	136x160		BL136160A	32.70x54.85	27.18x23.10	0.15x0.15	SPI	SH1108
1.77	160x128		BL160128A	42.7x33.4	35.015x28.012	0.048x0.199	SPI	SSD1353
3.21	256x64		BL25664B	87.4x28.5	79.084x19.756	0.289x0.289	Parallel	SSD1322

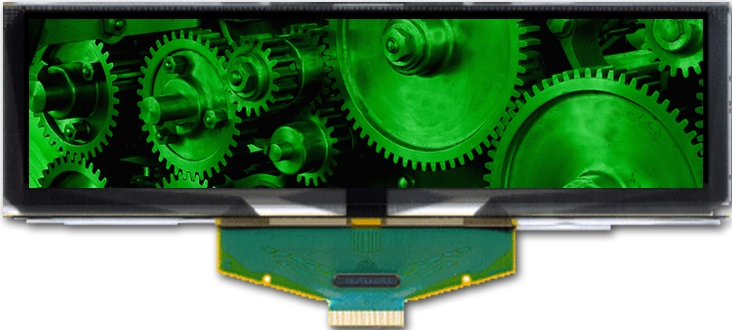

5.50	256x64		BL25664D	146.0x65.00	135.65x33.89	0.5x0.5	Parallel / SPI	SSD1322

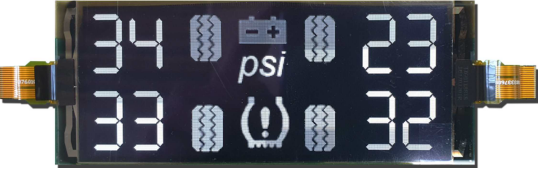

3.83	320x132		BL320132A	145.52x41.672	89.90x37.072	0.261x0.261	SPI	SSD1320Z

View：

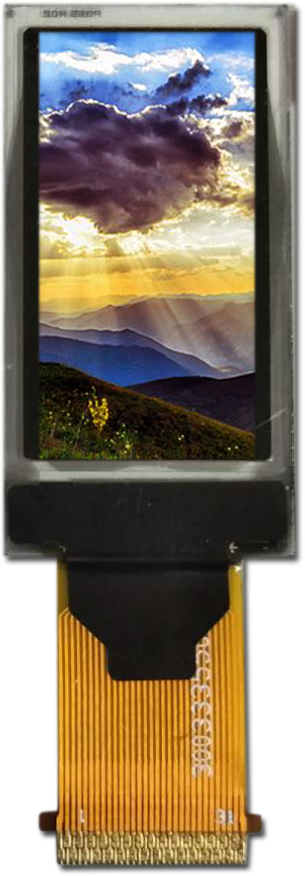

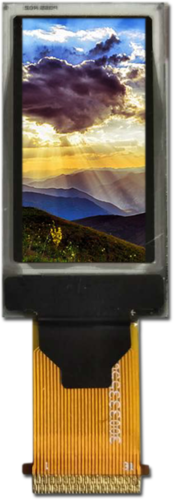

64x128 OLED Graphic Display

Model : BL64128A

● OLED Display 64 RGB x 128 dots
● Built-in controller SSD1357
● 1.65V ~ 3.5 V power supply,
● 1/128 duty cycle
● Color: 65K Color

128x32 OLED Graphic Display

Model : BL12832B

● OLED Display 128 x 32 dots
● Built-in controller SSD 1305
● +2.4 ~ +3.5 V single power supply
● 1/32 duty cycle
● Color: white
● SPI Interface

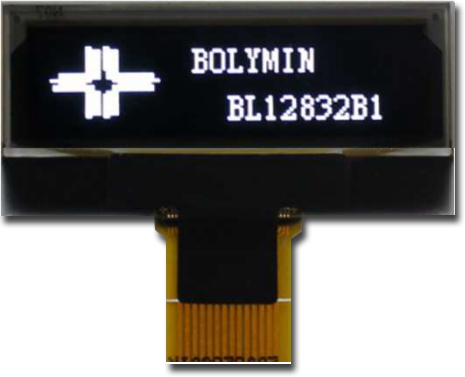

128x32 OLED Graphic Display

Model : BL12832B1

● OLED Display 128 x 32 dots
● Built-in controller SSD 1305
● +2.4 ~ +3.5 V single power supply
● 1/32 duty cycle
● Color: white
● SPI Interface

128x32 OLED Graphic Display

Model : BL12832B2

● OLED Display 128 x 32 dots
● Built-in controller SSD 1305
● +2.4 ~ +3.5 V single power supply
● 1/32 duty cycle
● Color: white
● SPI Interface

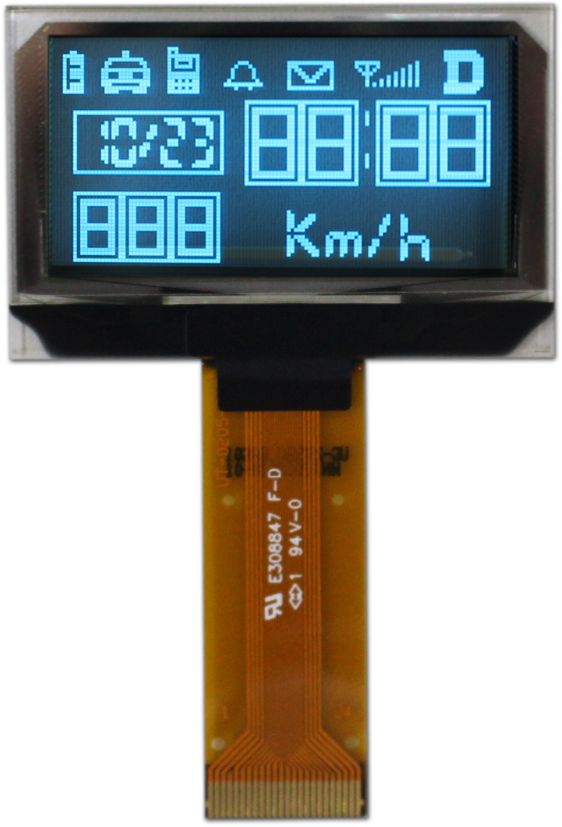

128x56 OLED Graphic Display

Model : BL12856A

● OLED Display 128 x 56 dots
● Built-in controller SSD1309
● 1.65V ~ 3.3 V power supply
● Transparent OLED
● Color: Light Blue

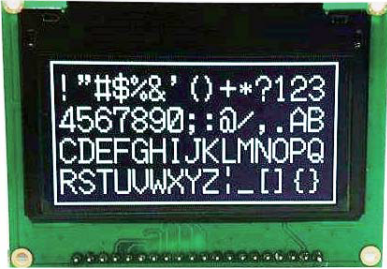

128x64 OLED Graphic Display

Model : BL12864G2

● OLED Display 128 x 64 dots
● Built-in controller SPD0301
● +3.3 V power supply
● 1/64 duty cycle
● Color: white or yellow
● Option: 6800, SPI, I2C interface

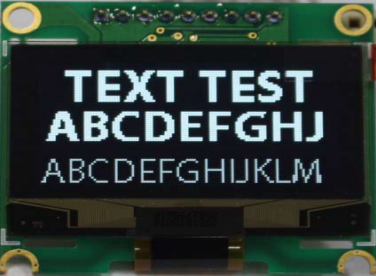

128x64 OLED Graphic Display

Model : BL12864S

● OLED Display 128 x 64 dots
● Built-in controller SPD0301
● +3.3 V power supply
● 1/64 duty cycle

● OLED Display 128 x 96 dots
● Built-in controller SSD1329
● +3.3 V power supply
With Built-in positive voltage
● 1/96 duty cycle
● Color: white or blue
● Option: external positive voltage for LCD
● Option:SPI interface
● 16 Gray Scale

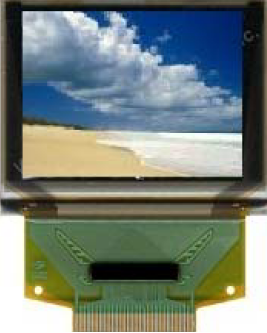

128x96 OLED Graphic Display

Model : BL12896D

● OLED Display 128 RGB x 96 dots
● Built-in controller SSD1351U3
● 2.4V ~ 3.5 V power supply
● 1/96 duty cycle
● Color: 262K Color

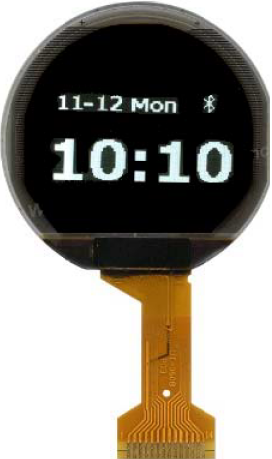

136x160 OLED Graphic Display

Model : BL136160A

● OLED Display 136 x 160 dots
● Built-in controller SH1108
● 1.65V ~ 3.3 V power supply,
● OLED: Round OLED
● Color: White

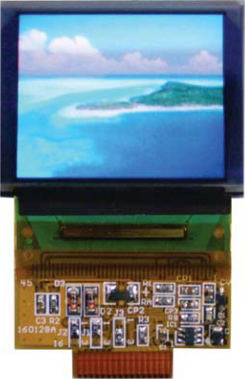

160x128 OLED Graphic Display

Model : BL160128A

● OLED Display 160 x 128 dots
● Built-in controller SSD1353
● + 3.3V single power supply,
with Built-in positive voltage
● 1/128 duty cycle
● Color: 262K color
● Option: external positive voltage for LCD
● Option: SPI interface

256x64 OLED Graphic Display

Model : BL25664B

● OLED Display 256 x 64 dots
● Built-in controller SSD1322
● + 3.3 V single power supply,
with Built-in positive voltage
● 1/64 duty cycle
● Serial or parallel interface
● Color: white
● Option: external positive voltage for LCD
● 16 Gray Scale
