Standard TFT LCD

A TFT LCD Module is a type of liquid-crystal display (LCD) using thin-film-transistor (TFT) technology to improve image qualities such as addressability and contrast.

Bolymin offers TFT from small (0.96” TFT LCD) to mid-size (10.1” TFT LCD) in its standard catalog.

Inch	Display Format	Photo	Model No.	Outline Dimension (mm)	Active Area (mm)	Typ.Brightness (module surface,cd/m2)	View Angle	Interface	IC Part No. or Compatible with Controller	remark
0.96	80x160		BTF0096A- GHN$	13.5x27.95x1.5	10.8x21.7	400	All	SPI	ST7735S
1.77	128x160		BTF0177A-EHN$	34.7x46.7x2.5	28.03x35.04	320	6H	Parallel	ST7735S
2.00	240x320		BTF020A-JBN$	35.7x51.2x2.4	30.6x40.8	250	ALL	Parallel / SPI	ST7789V
2.40	240x320		BTF024A-EHN$	42.72x60.26x2.55	36.72x48.96	350	6H	Parallel / SPI	ST7789V
2.83	240x320		BTF028B-EHN$	50x69.2x2.2	43.2x57.6	280	6H	Parallel	ST7789V

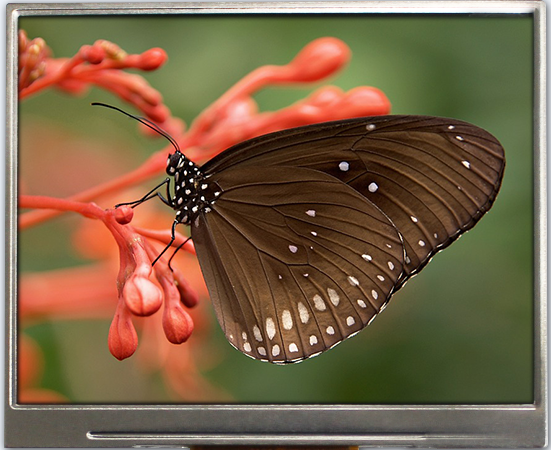

3.50	320x240		BTF035A-AWN$	76.9x63.9x3.2	70.08x52.56	320	12H	RGB+SPI	HX8238D
3.50	320x240		BTF035A-AWR$	76.9x63.9x4.35	70.08x52.56	250	12H	RGB+SPI	HX8238D	RTP
3.50	320x240		BTF035A-AWC$	76.9x63.9x5.1	70.08x52.56	250	12H	RGB+SPI	HX8238D	CTP
3.50	320x240		BTF035B-BWN$	76.9x63.9x3.2	70.08x52.56	450	6H	RGB+SPI	SSD2119
3.50	320x240		BTF035B-BWR	76.9x63.9x4.3	70.08x52.56	360	12H	RGB+SPI	SSD2119	RTP
4.30	480x272		BTF043A-AWN$	105.5x67.2x2.90	95.04x53.86	550	12H	RGB	ILI6480BQ

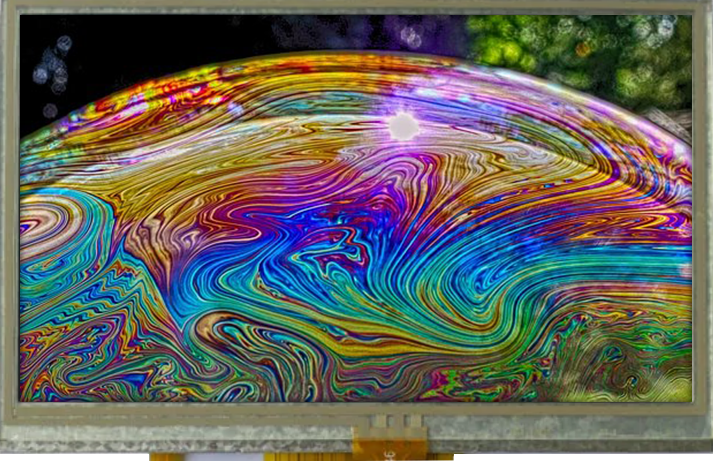

4.30	480x272		BTF043A-AWR$	105.5x67.2x4.1	95.04x53.86	450	12H	RGB	ILI6480BQ	RTP
4.30	480x272		BTF043B-AWN$	105.5x67.2x2.92	95.04x53.86	300	12H	RGB	ILI6480BQ
4.30	480x272		BTF043B-AWR$	105.5x67.2x4.1	95.04x53.86	250	12H	RGB	ILI6480BQ	RTP
4.30	480x272		BTF043C-AUN$	105.5x67.2x2.92	95.04x53.86	550	ALL	RGB	SC7283

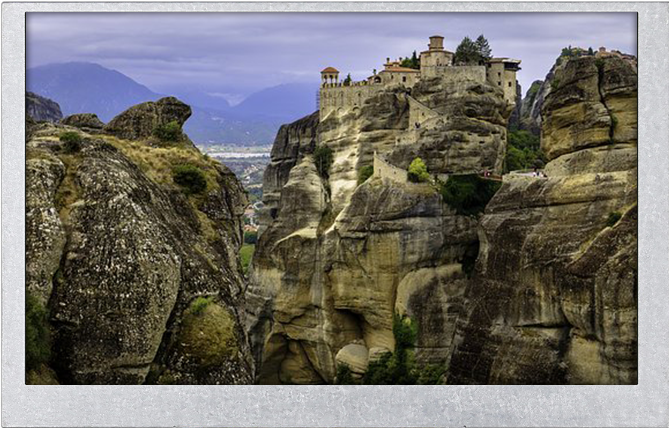

5.00	800x480		BTF050A-AWN$	120.7x75.8x2.8	108.0x64.8	450	12H	RGB	ILI5960+ILI6122
5.00	800x480		BTF050A-AWR$	120.7x75.8x4.0	108.0x64.8	360	12H	RGB	ILI5960+ILI6122	RTP
5.60	640x480		BTF056A-AHN$	126.5x100x5.7	112.896x84.672	350	6H	18bits RGB

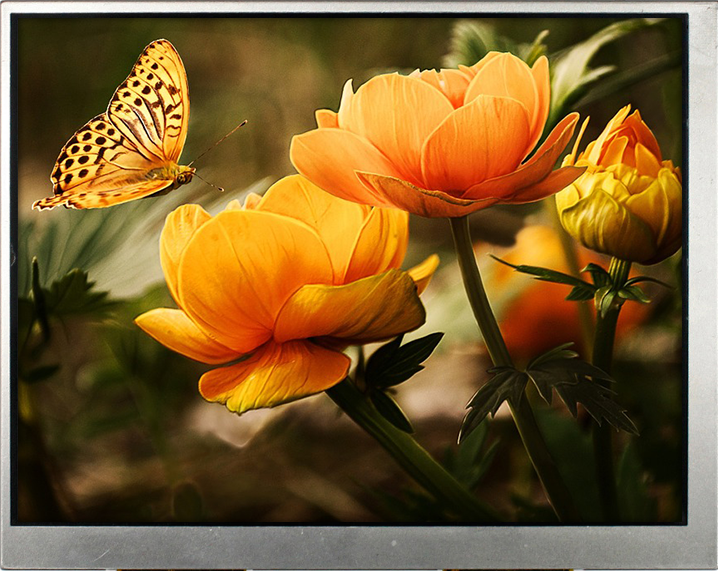

5.70	640x480		BTF057A-AHN$	127.0x98.43x5.8	115.2x86.4	700	6H	18bits RGB	HX8250A01+HX8678A

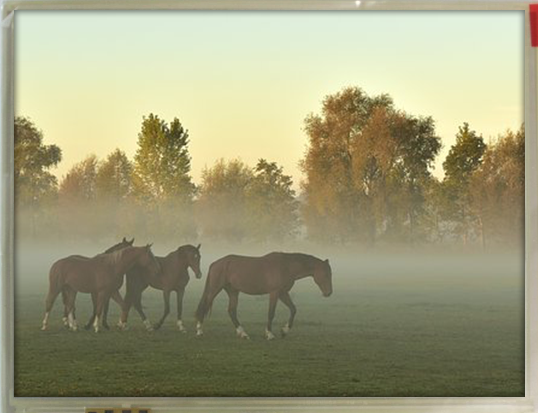

5.70	640x480		BTF057A-AHR$	127.0x98.43x9.2	115.2x86.4	560	6H	18bits RGB	HX8250A+HX8678B	RTP

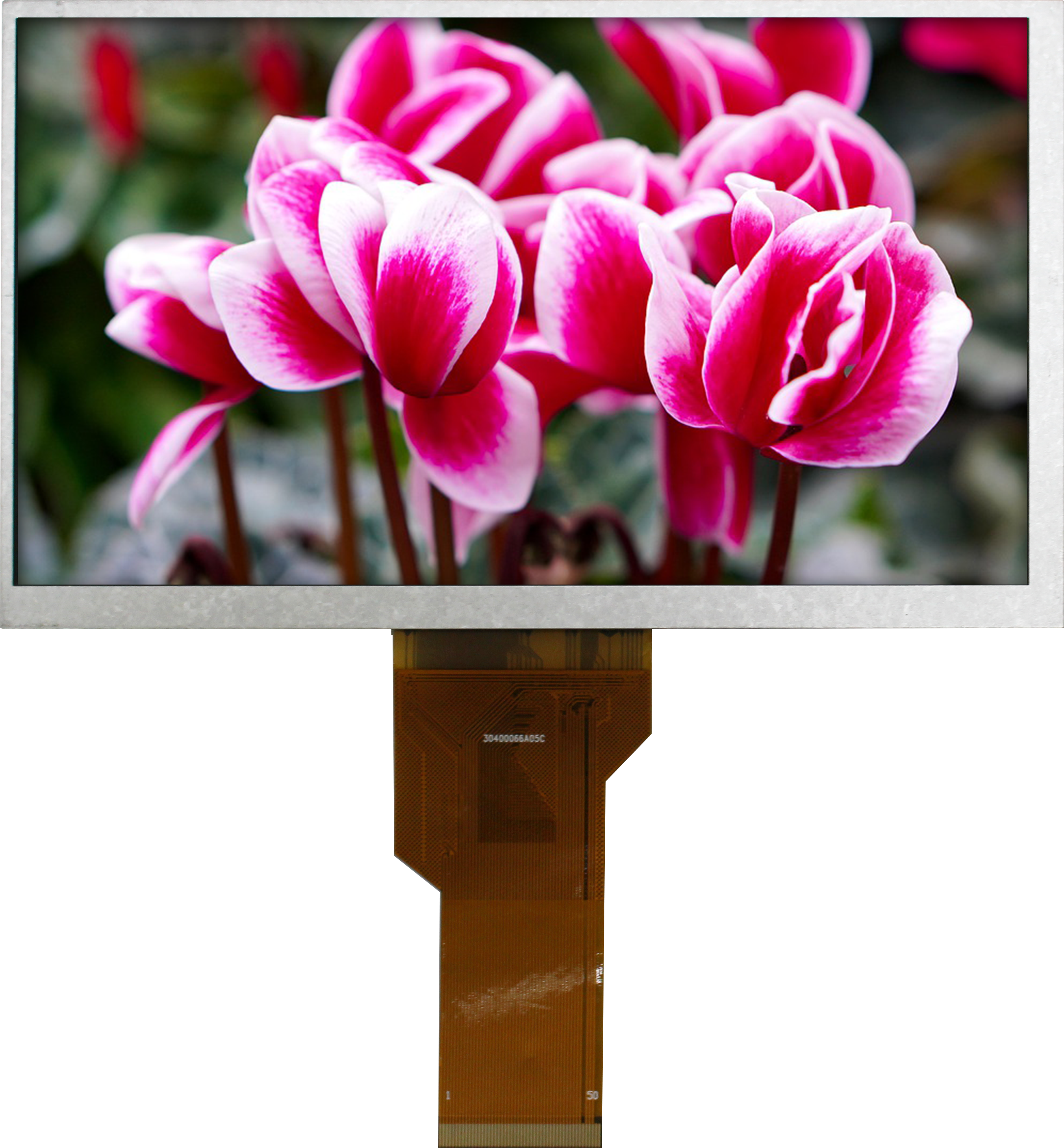

7.00	800x480		BTF070A-AWN$	164.8x99.8x5.5	154.08x85.92	420	12H	RGB	EK9713+EK73002
7.00	800x480		BTF070A-AWR$	164.8x99.8x7.0	154.08x85.92	350	12H	RGB	EK9713+EK73002	RTP

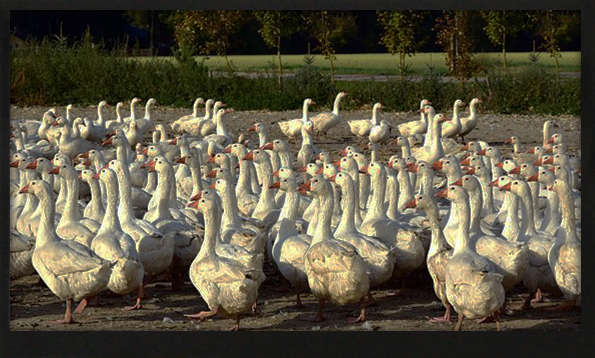

7.00	800x480		BTF070A-AWC$	164.8x99.8x7.5	154.08x85.92	350	12H	RGB	EK9713+EK73002

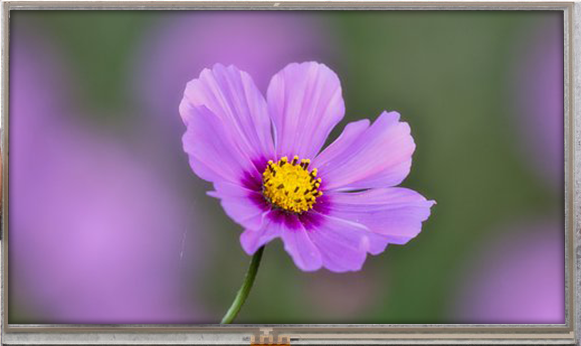

7.00	800x480		BTF070B-ABR$	164.8x99.8x4.55	153.84x85.92	350	12H	RGB		CTP
8.00	800x600		BTF080A-AWN$	183x141x6.2	162.0x121.5	500	12H	RGB	HX8264-D/HX8696-A

View：

0.96 inch 80x160 TFT Display

Model : BTF0096A-GHN$

● 0.96" TFT LCD
● Resolution:80(H)RGB*160(V)
● Display Type:TFT/Transmissive/Normal Black
● Interface Type:4 line SPI
● Drive IC:ST7735S
● Surface Luminance:400cd/m²
● Viewing Direction:ALL
● Top:-20℃~70℃

1.77 inch 128x160 TFT Display

Model : BTF0177A-EHN$

● 1.77" TFT LCD
● Resolution:128*RGB*160
● Display Type:TFT/Transmissive/Positive
● Colors:65K
● Interface Type:8-BIT MCU
● Drive IC:ST7735S
● Surface Luminance:320cd/m²
● Top:-20℃~70℃

2.00 inch 240x320 TFT Display

Model : BTF020A-JBN$

● 2.0" TFT LCD
● Resolution:240*RGB*320
● Display Type:TFT/Transmissive
● Interface Type:MCU
● Drive IC:ST7789V
● Surface Luminance:250cd/m²
● Viewing Direction:ALL
● Top:-10℃~60℃

2.40 inch 240x320 TFT Display

Model : BTF024A-EHN$

● 2.4" TFT LCD
● Resolution:240*RGB*320
● Display Type:TFT/Transmissive/Normally white
● Colors:262K
● Interface Type:MCU
● Drive IC:ST7789V
● Surface Luminance:350cd/m²
● Top:-20℃~70℃

2.83 inch 240x320 TFT Display

Model : BTF028B-EHN$

● 2.8" TFT LCD
● Resolution:240*RGB*320
● Display Type:TFT/Transmissive/Normally white
● Colors:262K
● Interface Type:MCU
● Drive IC:ST7789V
● Surface Luminance:280cd/m²
● Top:-20℃~70℃

3.50 inch 320x240 TFT Display

Model : BTF035A-AWN$

● 3.5" TFT LCD
● Resolution:320*240
● Display Type:TFT/Transmissive/Positive
● Interface Type:24BIT RGB+SPI
● Drive IC:HX8238D
● Surface Luminance:300cd/m²
● Top:-20℃~70℃

3.50 inch 320x240 TFT Display

Model : BTF035A-AWR$

● 3.5" TFT LCD
● Resolution:320*240
● Display Type:TFT/Transmissive/Positive
● Interface Type:24BIT RGB+SPI
● Drive IC:HX8238D
● Surface Luminance:240cd/m²
● Top:-20℃~70℃
● Support Resistive Touch Panel

3.50 inch 320x240 TFT Display

Model : BTF035A-AWC$

● 3.5" TFT LCD
● Resolution:320*240
● Display Type:TFT/Transmissive/Positive
● Interface Type:24BIT RGB+SPI
● LCM Drive IC:HX8238D
● CTP Drive IC:FT5446DQS
● Surface Luminance:250cd/m²
● Top:-20℃~70℃
● Support Capacitive Touch Panel

3.50 inch 320x240 TFT Display

Model : BTF035B-BWN$

● 3.5" TFTLCD
● Resolution:320*240
● Display Type:TFT/Transmissive/Positive
● Interface Type:18BIT RGB+SPI
● Drive IC:SSD2119
● Surface Luminance:550cd/m²
● Top:-20℃~70℃

3.50 inch 320x240 TFT Display

Model : BTF035B-BWR$

● 3.5" TFT LCD
● Resolution:320*240
● Display Type:TFT/Transmissive/Positive
● Interface Type:18BIT RGB+SPI
● Drive IC:SSD2119
● Surface Luminance:500cd/m²
● Top:-20℃~70℃
● Support Resistive Touch Panel

4.30 inch 480x272 TFT Display

Model : BTF043A-AWN$

● 4.3" TFT LCD
● Resolution:480*272
● Display Type:TFT/Transmissive/Positive
● Interface Type:24-BIT RGB
● Drive IC:ILI6480BQ
● Surface Luminance:550cd/m²
● Top:-20℃~70℃

4.30 inch 480x272 TFT Display

Model : BTF043A-AWR$

● 4.3" TFT LCD
● Resolution:480*272
● Display Type:TFT/Transmissive/Positive
● Interface Type:24-BIT RGB
● Drive IC:ILI6480BQ
● Surface Luminance:440cd/m²
● Top:-20℃~70℃
● Support Resistive Touch Panel
