• 0.96 inch 80x160 TFT Display, BTF0096A-GHN

0.96 inch 80x160 TFT Display

● 0.96" TFT LCD
● Resolution:80(H)RGB*160(V)
● Display Type:TFT/Transmissive/Normal Black
● Interface Type:4 line SPI
● Drive IC:ST7735S
● Surface Luminance:400cd/m²
● Viewing Direction:ALL
● Top:-20℃~70℃
Model : BTF0096A-GHN$


BTF0096A-GHN$


BTF0096A-GHN$ is a 0.96” TFT LCD with 80(H)RGB*160 resolution.

It is a Normal Black Trasmissive TFT with 4-Line SPI Interface.

View angle for TFT is “ALL” and brightness is 400 cd/m²

Drive IC used in TFT is ST7735S

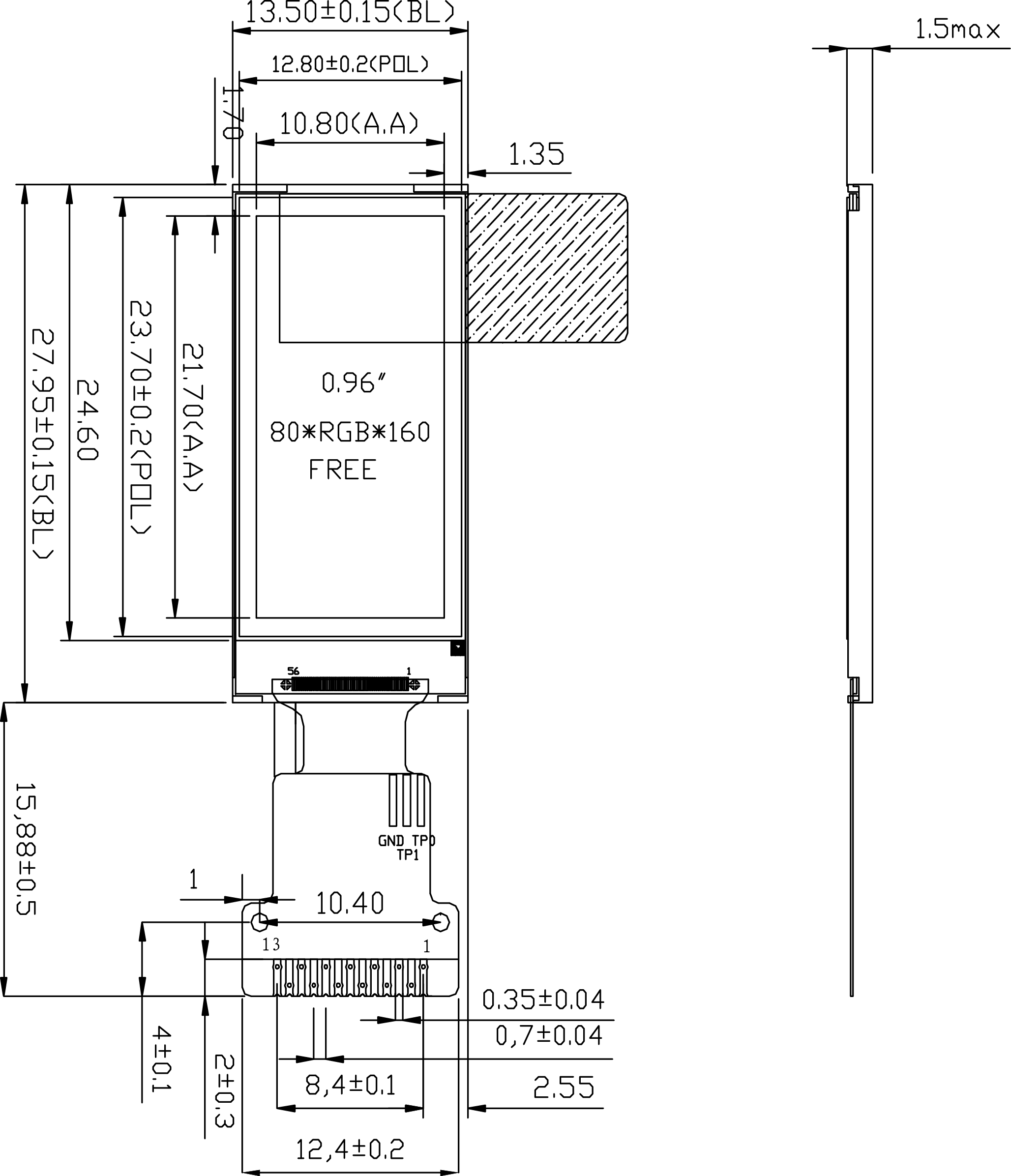

● Mechanical Data

1.    Module(WxHxT)(mm):13.5*27.95*1.5

2.    Active Area(mm):10.8*21.7

3.    LED Numbers:1 LED

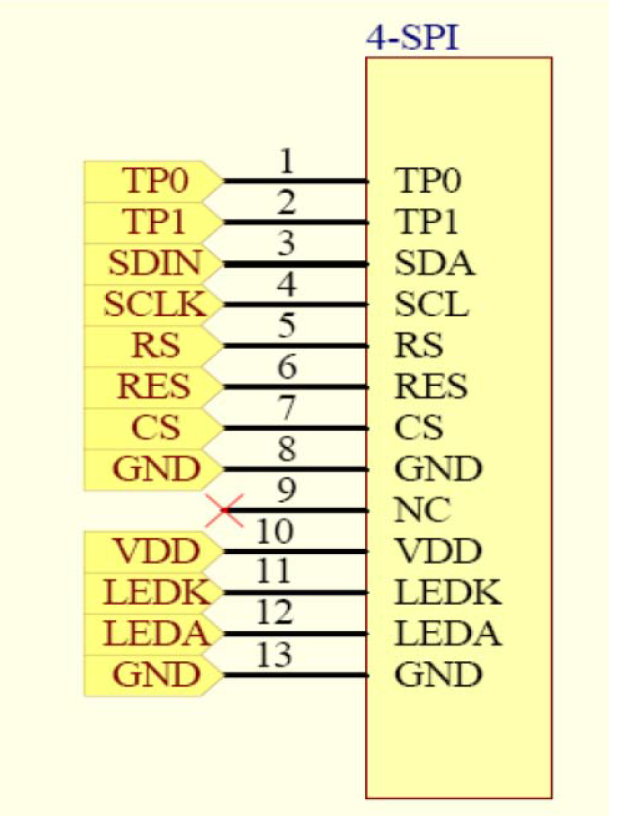

● Interface Pin Function

No

Symbol

Description

1

TP0

Touch Pin, If not used, please open this pin.

2

TP1

Touch Pin, If not used, please open this pin.

3

SDA

SPI interface input/outpur pin.

4

SCL

This pin is used to be serial interface clock.

5

RS

Display data/command selection pin in 4-line serial interface.

6

RESET

This signal will reset the device,Signal is active low.

7

CS

Chip selection pin,Low enable,High disable.

8

GND

Power Ground.

9

NC

No Connect.

10

VDD

Power Supply for Analog

11

LEDK

LED Canthode

12

LEDA

LED Anode

13

GND

Power Ground.
