• 7.0 inch 1024x600 TFT Display, BTC070CF-GFC$

7.0 inch 1024x600 TFT Display

● 7.0" IPS TFT LCD Module
● Resolution: 1024*RGB*600
● Display Type:TFT/Transmissive/Normally/black
● Interface Type: 4-Wire SPI
● Controller IC: RA8877
● Top:-20℃~70℃
● Support Capacitive Touch Panel
Model : BTC070CF-GFC$



BTC070CF-GFC$


BTC070CF-GFC$ is a 7.0" IPS TFT LCD with 1024*RGB*600 resolution.

It is a trasmissive normally Black TFT with 4-Wire SPI Interface.

Controller IC used in TFT is RA8877

BTC070CF-GFC$ supports Capacitive Touch Panel


The RA8877 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8877 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8877 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

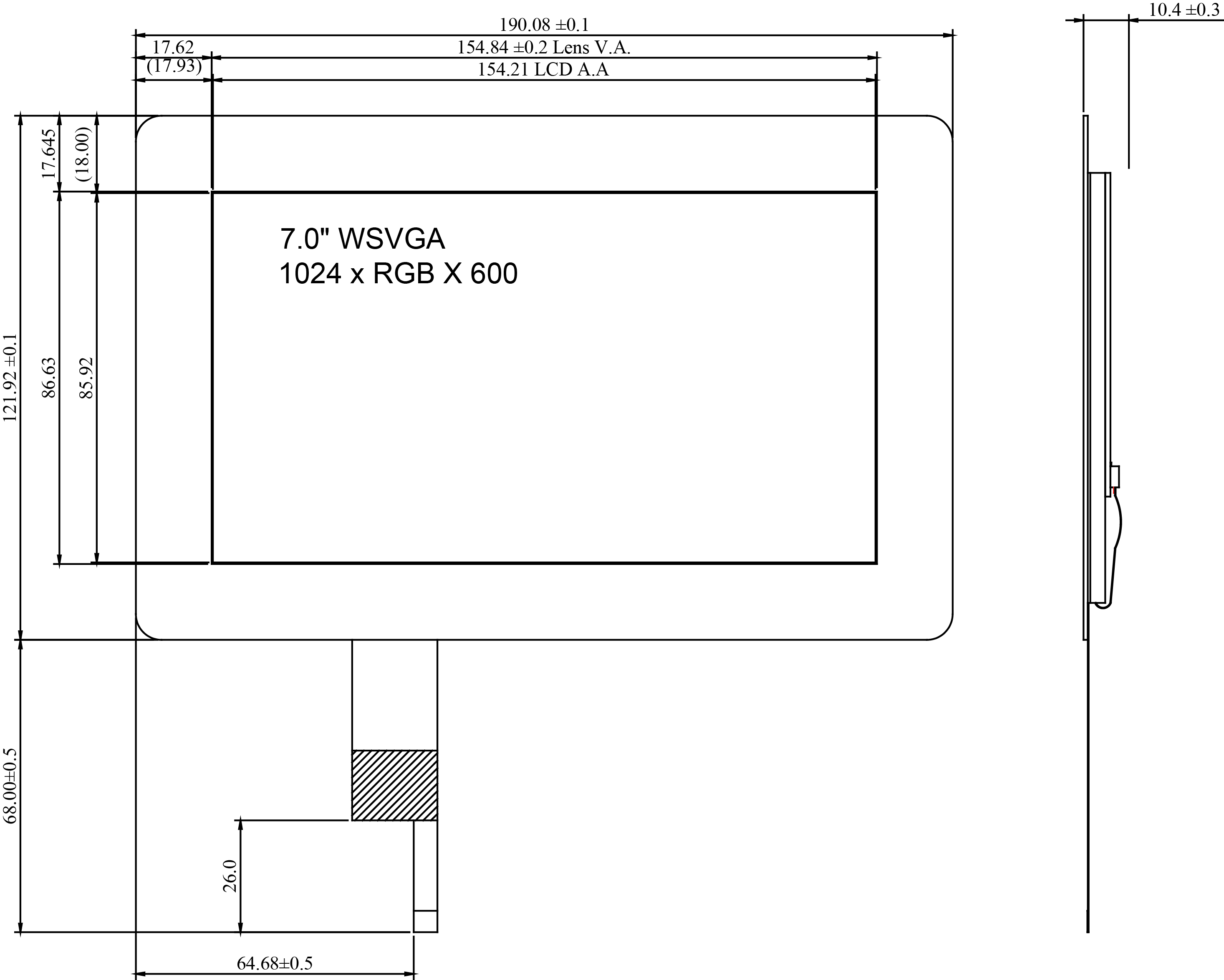

● Mechanical Data

1.    Module(WxHxT)(mm): 190.08*121.92*10.4

2.    Active Area(mm): 154.21*85.92

3.    LED Numbers: 30 LEDs



● Interface Pin Function

Pin No.

Symbol

I/O
    Level

Description

1

VSS

-

Ground

2

VDD

-

Power supply for Logic,(3.3V)

3

BL_EN

H/L

Backlight control pin. H:On \ L: Off

4~10

VSS

-

Ground

11

SCS

H/L

SPI Chip Select

12

SDO

H/L

4-wire SPI Data Output

13

SDI

H/L

4-wire SPI Data Input

14

SCL

H/L

4-wire Serial clock.

15

VSS

-

Ground

16

/RST

H/L

Reset signal

17

WAIT

-

Wait Signal Output. When high, it indicates that the            controller is ready to transfer data.

18

INT

-

Interrupt Signal Output.
The interrupt output for MCU to indicate the status of controller.

19

VLED+

-

Power supply for backlight driver.(5.0V)

20

VLED-

-

Power supply for backlight driver.(GND)



● CTP Pin Function

Pin No.

Symbol

I/O
Level

Description

1

NC

-

NC

2

NC

-

NC

3

/RST

I

Reset pin.

4

GND

-

Ground

5

INT

O

Interrupt output.

6

SDA

I/O

I2C DATA signal input/output.

7

SCL

I

I2C CLOCK signal input.

8

GND

-

Ground

9

GND

-

Ground

10

VDD

-

Power supply pin.
