• 5.00 inch 800x480 TFT Display, BTF050A-AWR$

5.00 inch 800x480 TFT Display

● 5.0" TFTLCD
● Resolution:800*480
● Display Type:TFT/Transmissive/Positive
● Interface Type:24-BIT RGB
● Drive IC:ILI5960+ILI6122
● Surface Luminance:360cd/m²
● Top:-20℃~70℃
● Support Resistive Touch Panel
Model : BTF050A-AWR$




BTF050A-AWR$


BTF050A-AWR$ is a 5.0" TFT LCD with 800*480 RGB resolution.

It is a trasmissive Positive TFT with 24-BIT RGB Interface.

View angle for TFT is “6H” and brightness is 360 cd/m²

Drive IC used in TFT is ILI5960+ILI6122

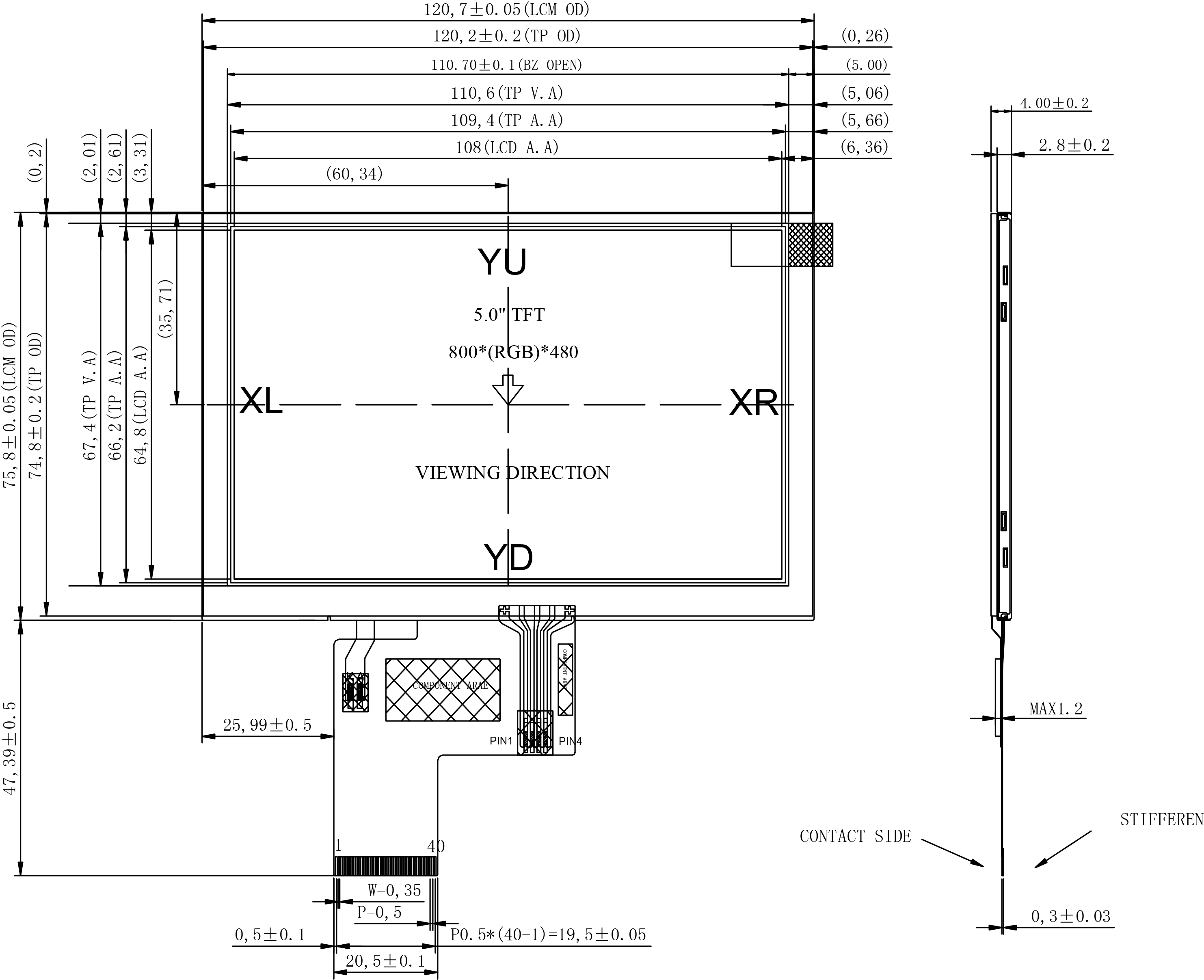

● Mechanical Data

1.    Module(WxHxT)(mm):120.7*75.8*4.0

2.    Active Area(mm):108*64.8

3.    LED Numbers:12 LEDs




● Interface Pin Function

No

Symbol

Description

1

LED-

Cathode of LED backlight

2

LED+

Anode of LED backlight

3

GND

Power ground

4

VDD

Power voltage

5~12

R0~R7

Red data

13~20

G0~G7

Green data

21~28

B0~B7

Blue data

29

GND

Power ground

30

DCLK

Pixel clock

31

DISP

Display on/off

32

HSYNC

Horizontal sync signal

33

VSYNC

Vertical sync signal

34

DE

Data enable

35

NC

No connect

36

GND

Power ground

37

XR

Right electrode - differential analog

38

YD

Bottom electrode - differential analog

39

XL

Left electrode - differential analog

40

YU

Top electrode - differential analog
