• 128x96 OLED Graphic Display, BL12896D

128x96 OLED Graphic Display

● OLED Display 128 RGB x 96 dots
● Built-in controller SSD1351U3
● 2.4V ~ 3.5 V power supply
● 1/96 duty cycle
● Color: 262K Color
Model : BL12896D


BL12896D


BL128696D is 1.27 inch 128x96 dots Graphic OLED Display Modules.
The module dimension of BL128696D is 33.7 x 26.9 mm and Active Area is 25.708 x 19.28 mm.
It has built-in IC SSD1351U3 and it supports Parallel/ SPI interface.
BL128696D required 2.4V ~ 3.5 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.

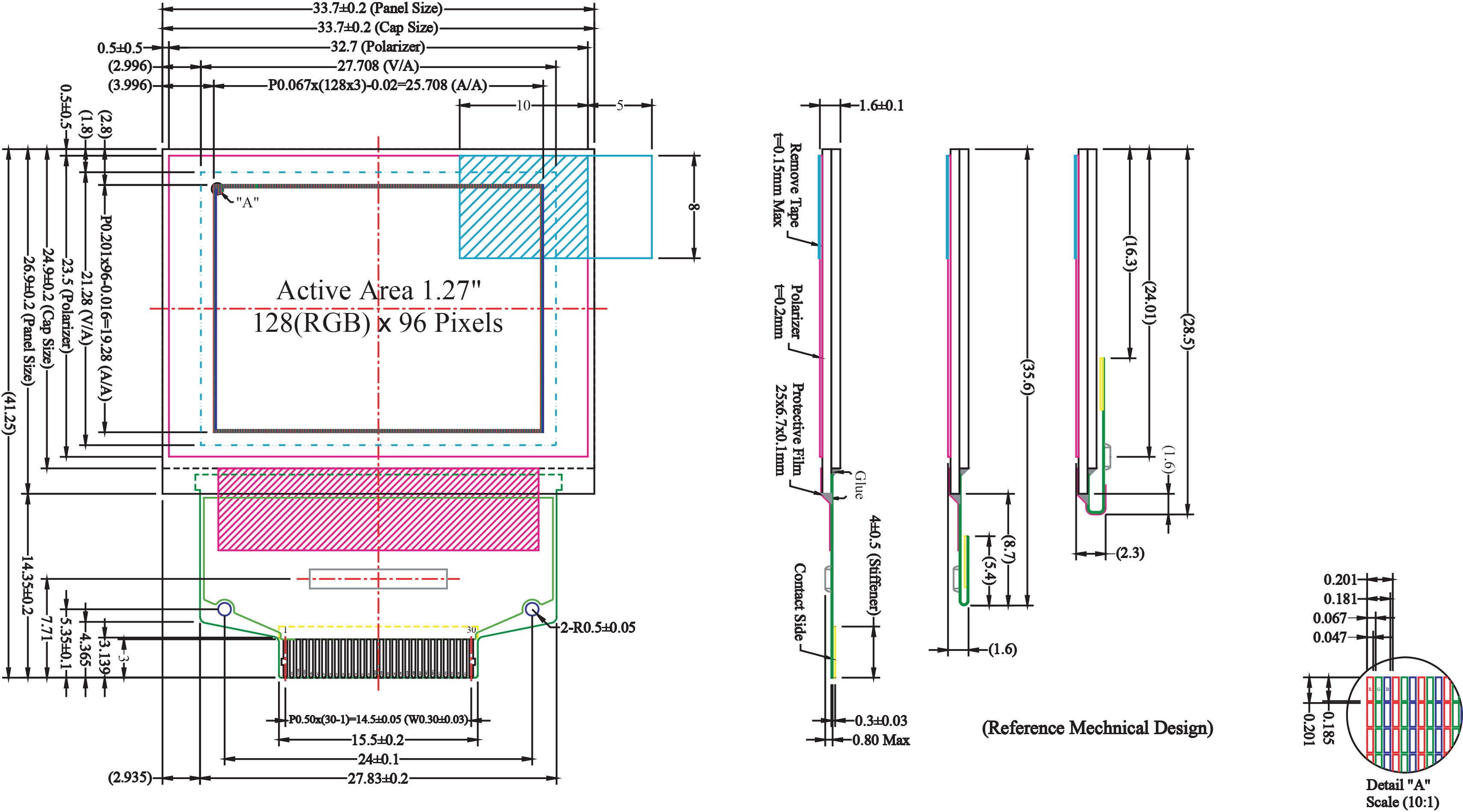

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

33.7 x 26.9

mm

Active Area

25.708 x 19.28

mm

Dot Size

 0.047 x 0.185

mm

Dot Pitch

0.067 x 0.201

mm




● Pin Assignment

Pin

Symbol

Function

1,30

NC

No connection.(ESD)

2

VCC

Power supply for panel voltage.

3

VCOMH

Com voltage Output.

4

VDDIO

Power supply for logic.

5

VSL

Seg Voltage Output.

6,25,29

NC

No connection.

7

D7~D0

Data bus.

8

E/RD#

Data read.

9

R/W#

Data write.

10

BS0

Interface select pin.

11

BS1

Interface select pin.

12

CS#

Chip select pin.

13~20

D/C#

This is data/command control pin.

21

RES#

Hardware reset pin.

22

IREF

The current reference input pin

23

GPIO1

General purpose input/output.

24

GPIO0

General purpose input/output.

26

VDD

Power supply for logic.

27

VCI

Power supply for operation.

28

VSS

Ground.
