UART TFT LCD


UART TFT  LCD Interface


UART stands for Universal Asynchronous Receiver/Transmitter; it is a block of circuitry responsible for implementing serial communication. UART TFT LCD is a smart and easy-to-use TFT LCD, which can quickly create the required images and actions. Bolymin provides editor software and widgets, which can be pre-edited on the PC and downloaded to the UART TFT  LCD for use. What You See Is What You Get.It allows users to control high performance TFT displays from low-end systems.    Video


inch

Display Format


Model No.

Outline Dimension (mm)

Active Area (mm)

Typ.Brightness (cd/m2)

View Angle

Interface

IC Part No.

TOUCH PANEL

Audio/ Video

2.8

320x240


BTU028-3224TL100

96.6 x 55.94

57.6 x 43.2

200

6H

UART/RS232

ARM M4

RTP

WAV

3.2

320x240


BTU032-3224TL100

96.6 x 55.94

64.8 x 48.6

290

6H

UART/RS232

ARM M4

RTP

WAV

4.3

480x272


BTU043-4827IL000

120 x 74

95.04 x 53.86

340

ALL

UART/RS232

ARM 9

RTP/CTP

WAV/MP3/MP4

5

800x480


BTU050-8048IL000

136.9 x 84

108 x 64.8

550

ALL

UART/RS232

ARM 9

RTP/CTP

WAV/MP3/MP4

7

800x480


BTU070-8048TL000

181 x 108

154.08 x 85.92

700

12H

UART/RS232

ARM 9

RTP/CTP

WAV/MP3/MP4

10.1

1024x600

-

BTU101-1060TL000

235 x 143

222.72 x 125.28

360

6H

UART/RS232

ARM 9

RTP/CTP

WAV/MP3/MP4

View:

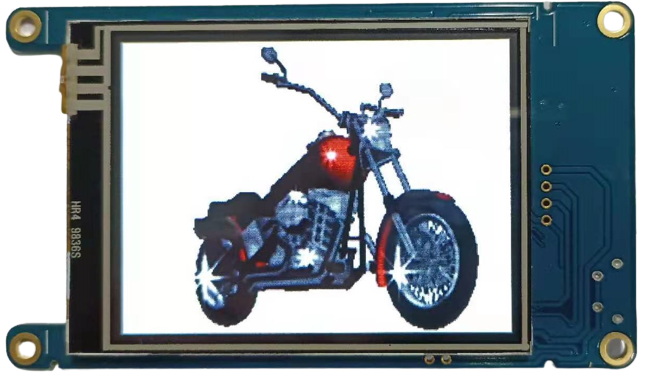

2.8 inch 240x320 UART TFT LCD

● 2.8" TFT LCD Module.
● Resolution:240*RGB*320/320*RGB*240
● Display Type:TFT/Transmissive/Normally white
● Interface Type:UART TX RX
● Controller IC: ARM M4
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 200 cd/m²(Type)
● 90 or 180 degree rotation

3.2 inch 240x320 UART TFT LCD

● 3.2" TFT LCD Module.
● Resolution:240*RGB*320/320*RGB*240
● Display Type:TFT/Transmissive/Normally white
● Interface Type:UART TX RX
● Controller IC: ARM M4
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 290 cd/m²(Type)
● 90 or 180 degree rotation

4.3 inch 480x272 UART TFT LCD

● 4.3" TFT LCD Module.
● Resolution:480*RGB*272
● Display Type:TFT/Transmissive/Normally Black/IPS
● Interface Type:UART TX RX
● Controller IC: ARM 9
● Top:-20℃~70℃
● Support Resistive Touch Panel/Capacitive Touch Panel
● Surface Luminance 340 cd/m²(Type)

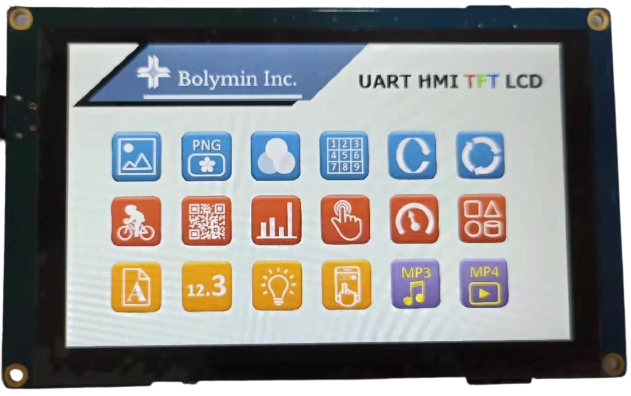

5.0 inch 800x480 UART TFT LCD

● 5.0" TFT LCD Module.
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally Black/IPS
● Interface Type:UART TX RX
● Controller IC: ARM 9
● Top:-20℃~70℃
● Support Resistive Touch Panel/Capacitive Touch Panel
● Surface Luminance: 550 cd/m²(Type)

7.0 inch 800x480 UART TFT LCD

● 7.0" TFT LCD Module.
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally White
● Interface Type:UART TX RX
● Controller IC: ARM 9
● Top:-20℃~70℃
● Support Resistive Touch Panel/Capacitive Touch Panel
● Surface Luminance: 700 cd/m²(Type)
