TFT LCD/UART TFT LCD

2.8 inch 240x320 UART TFT LCD

● 2.8" TFT LCD Module.
● Resolution:240*RGB*320/320*RGB*240
● Display Type:TFT/Transmissive/Normally white
● Interface Type:UART TX RX
● Controller IC: ARM M4
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 200 cd/m²(Type)
● 90 or 180 degree rotation

Model : BTU028-3224TL100

Q'ty :

Description
Specifications

2.8" UART TFT LCD ,UART TFT LCD is a smart and easy-to-use TFT LCD, which can quickly create the required images and actions. Bolymin provides editor software and widgets, which can be pre-edited on the PC and downloaded to the UART TFT LCD for use. What You See Is What You Get.

● Mechanical Data

1. Module(WxHxT)(mm): 96.6*55.94*11.81

2. Active Area(mm): 57.6*43.2

3. Resolution: 240x320 /320x240

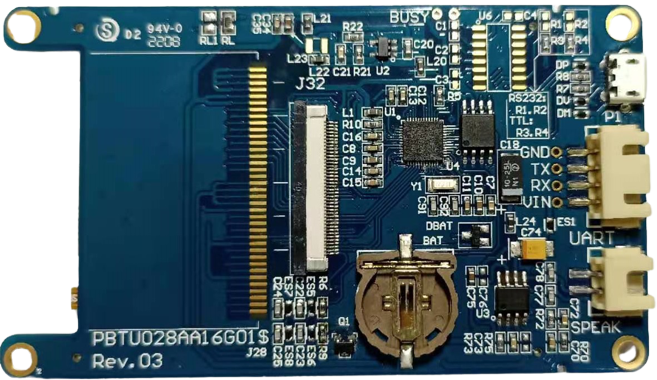

● Pin Assignment


Pin No.	Symbol	Type	Function
1	VBUS	P	Power supply voltage
2	D-	I/O	USB Data -
3	D+	I/O	USB Data +
4	GND	P	Ground.
5	GND	P	Ground.

UART

Pin No.	Symbol	Type	Function
1	VBUS	P	Power supply voltage,5V
2	RX	I	UART Receive pin
3	TX	O	UART Transmit pin.
4	GND	P	Ground

SPEAK

Pin No.	Symbol	Type	Function
1	SPK+	P	AUDIO
2	SPK-	P	AUDIO

2.8 inch 240x320 UART TFT LCD
