Embedded LCD


Embedded LCD consists of the LCD display and embedded system, which is microprocessor-based computer hardware with built-in software to perform specific functions.

Bolymin have in-house embedded system design team and have many standard part numbers in its catalog. We are also capable to design and manufacture embedded systems as per customer‘s specs.

It controls many devices in common use nowadays for industrial applications. POS system, HMIs, medical devices, security control, entertainment system, digital signage, industrial automation and automotive control electronics.





Embedded System industrial products


 Model

 Dimension

 Display

 Memory

 Power

 IO Port

 Remark

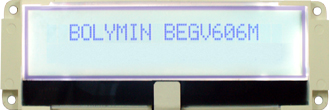

BEGV606M

116x37x15mm

20x2 Character LCD

64KB ISP Flash memory / 8KB SRAM

DC 4.5V~5.5V

1xRS485/422/232,1xRS232

BEGV627M

93x70x15mm

128x64 Graphic LCD

64KB ISP Flash memory / 8KB SRAM

DC 4.5V~5.5V

1xRS485/422/232,1xRS232

4 wired resistive touch panel interface

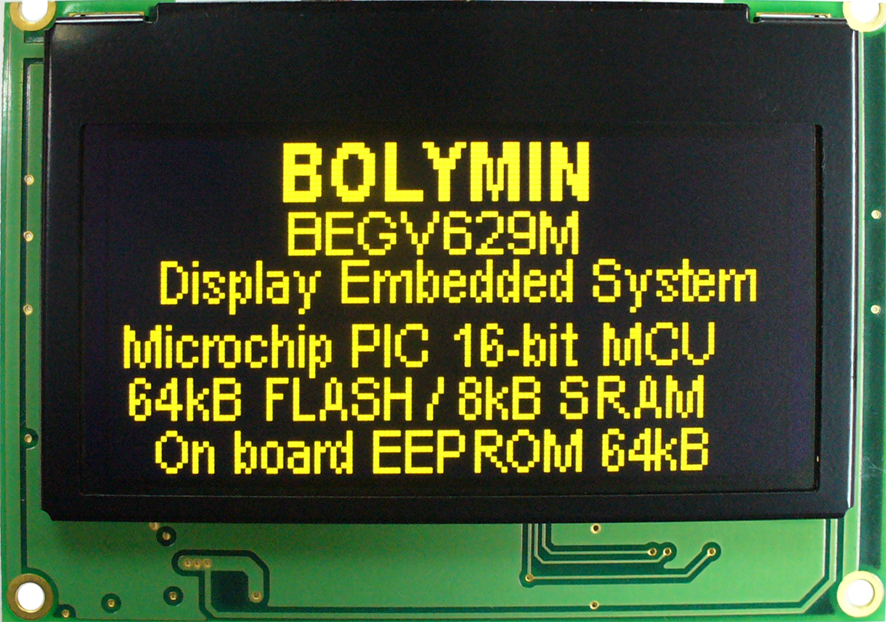

BEGV629M

75x52.7x12.3

128x64 Graphic LCD

64KB ISP Flash memory / 8KB SRAM

DC 4.5V~5.5V

1xRS485/422/232,1xRS232

OLED driver and utility are supported

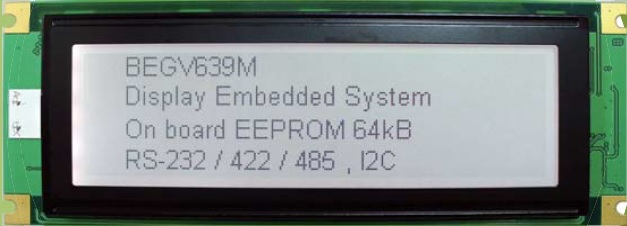

BEGV639M

180x65x19mm

240x64 Graphic LCD

64KB ISP Flash memory / 8KB SRAM

DC 4.5V~5.5V

1xRS485/422/232,1xRS232

4 wired resistive touch panel interface

BEGV641A

148x74.6x20mm

240x128 Graphic LCD

64KB/28KB ISP Flash memory ,4KB/8KB SRAM

DC 4.5V~5.5V

1xRS485/422/232,1xRS232

4 wired resistive touch panel interface


BEGV643A

160x109x16.5mm

320x240 Graphic LCD

64KB/28KB ISP Flash memory ,4KB/8KB SRAM

DC 4.5V~5.5V

1xRS485/422/232,1xRS232

4 wired resistive touch panel interface

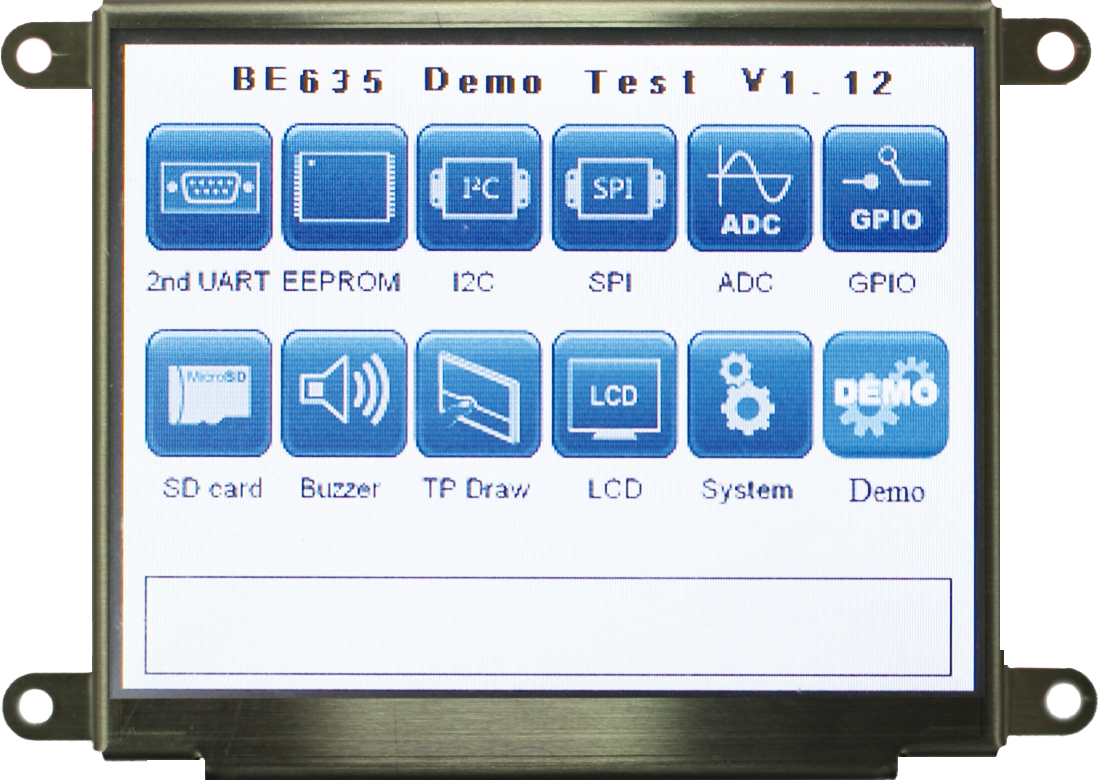

BE635

93x67x15mm

3.5" TFT-LCD with 320X240(QVGA) resolution

512KB ISP flash memory, 64KB SRAM

DC 5V

1 x RS232/422/485/USB

Support micro SD
4 wired resistive touch panel interface

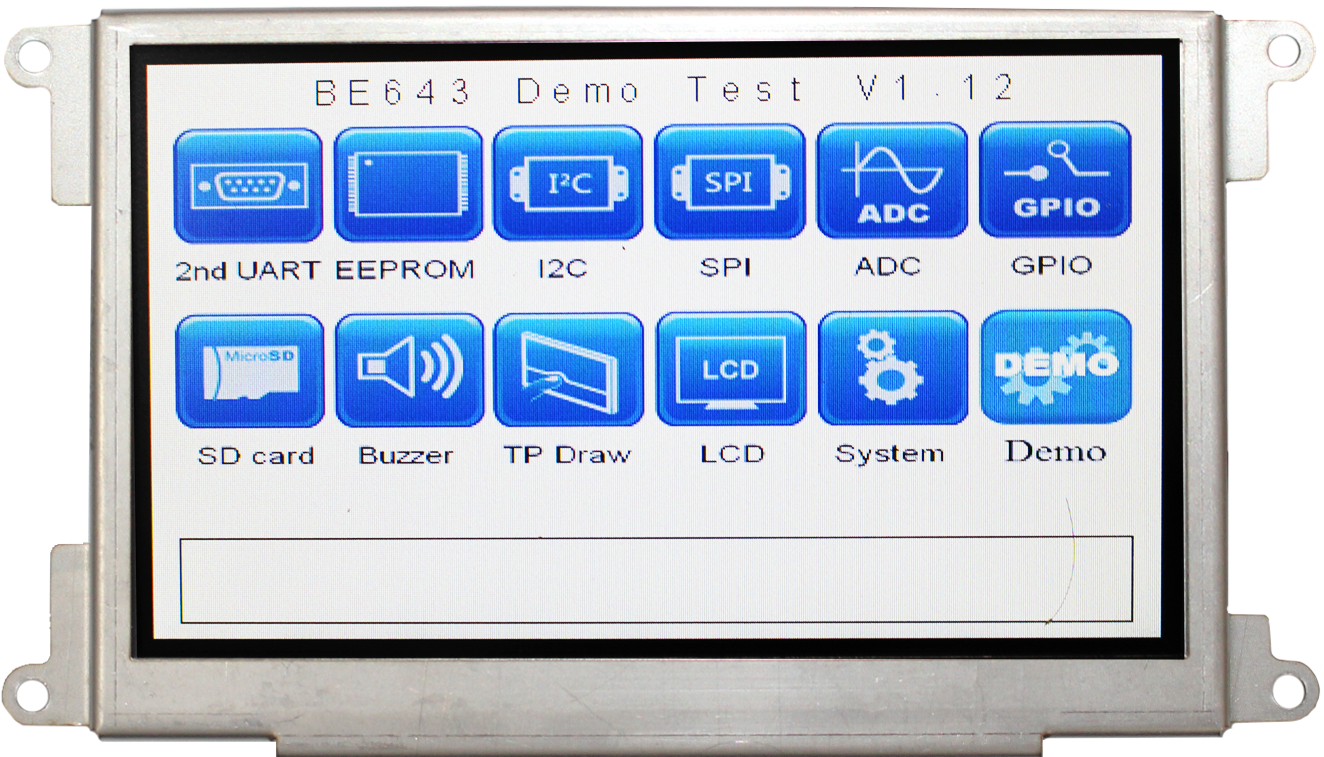

BE643

125.8x71.5x14.25mm

4.3" TFT-LCD with 480x272 (WQVGA) resolution

512KB ISP flash memory, 64KB SRAM

DC 5V

1 x RS232/422/485/USB

Support micro SD
4 wired resistive touch panel interface

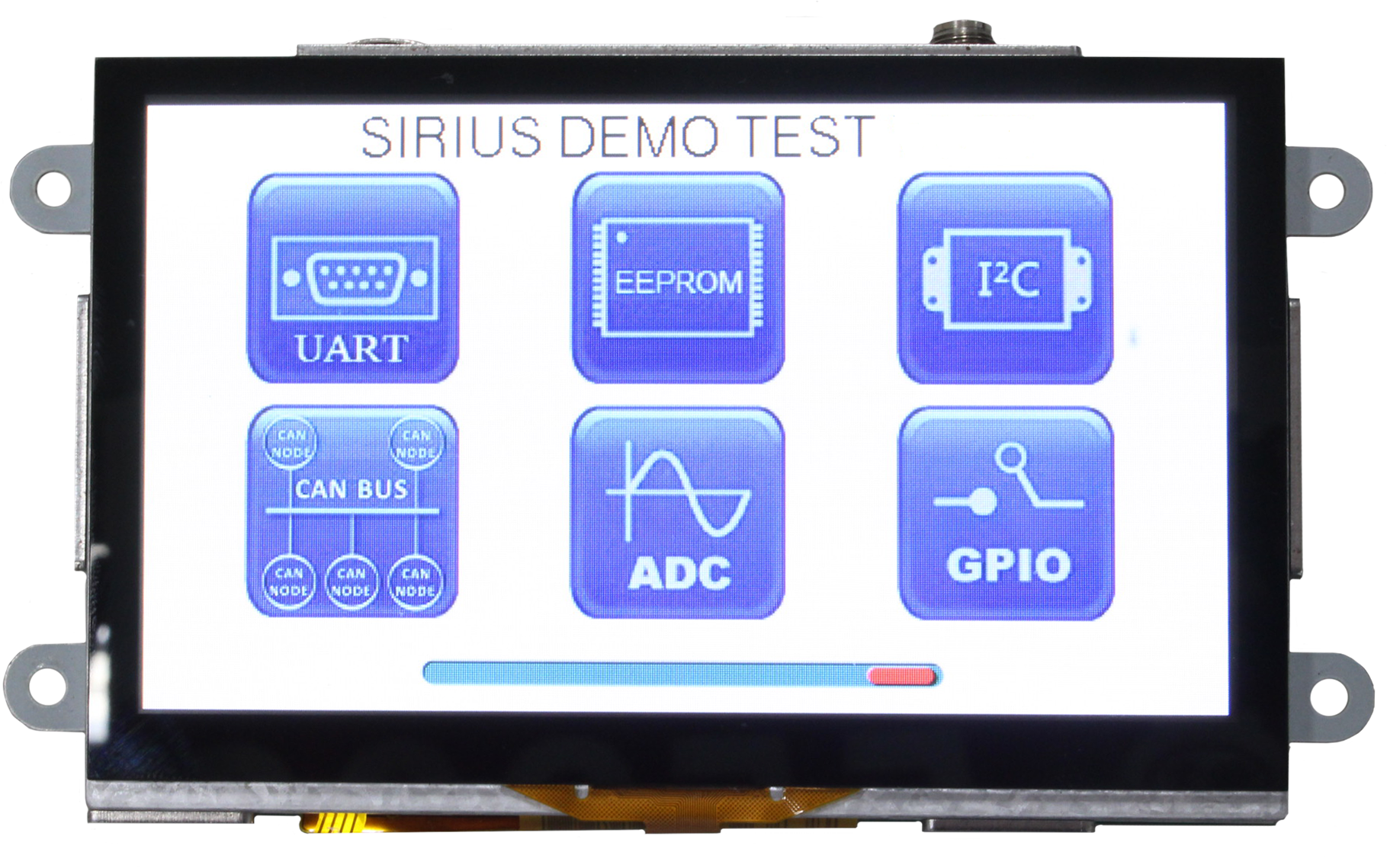

BE643WF

121.5x69.4x16mm

4.3" TFT-LCD with 480x272 (WQVGA) resolution

512KB ISP flash memory, 64KB SRAM

DC 5V

1 x RS232/422/485/USB

Support micro SD
CAN BUS
capactive touch panel

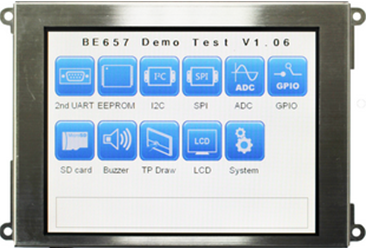

BE657

164x106x29mm

5.7" TFT-LCD with 640x480 resolution (320X240 optional)

512KB ISP flash memory, 64KB SRAM

DC 5V~24V

1 x RS232/422/485/USB

Support micro SD
4 wired resistive touch panel interface

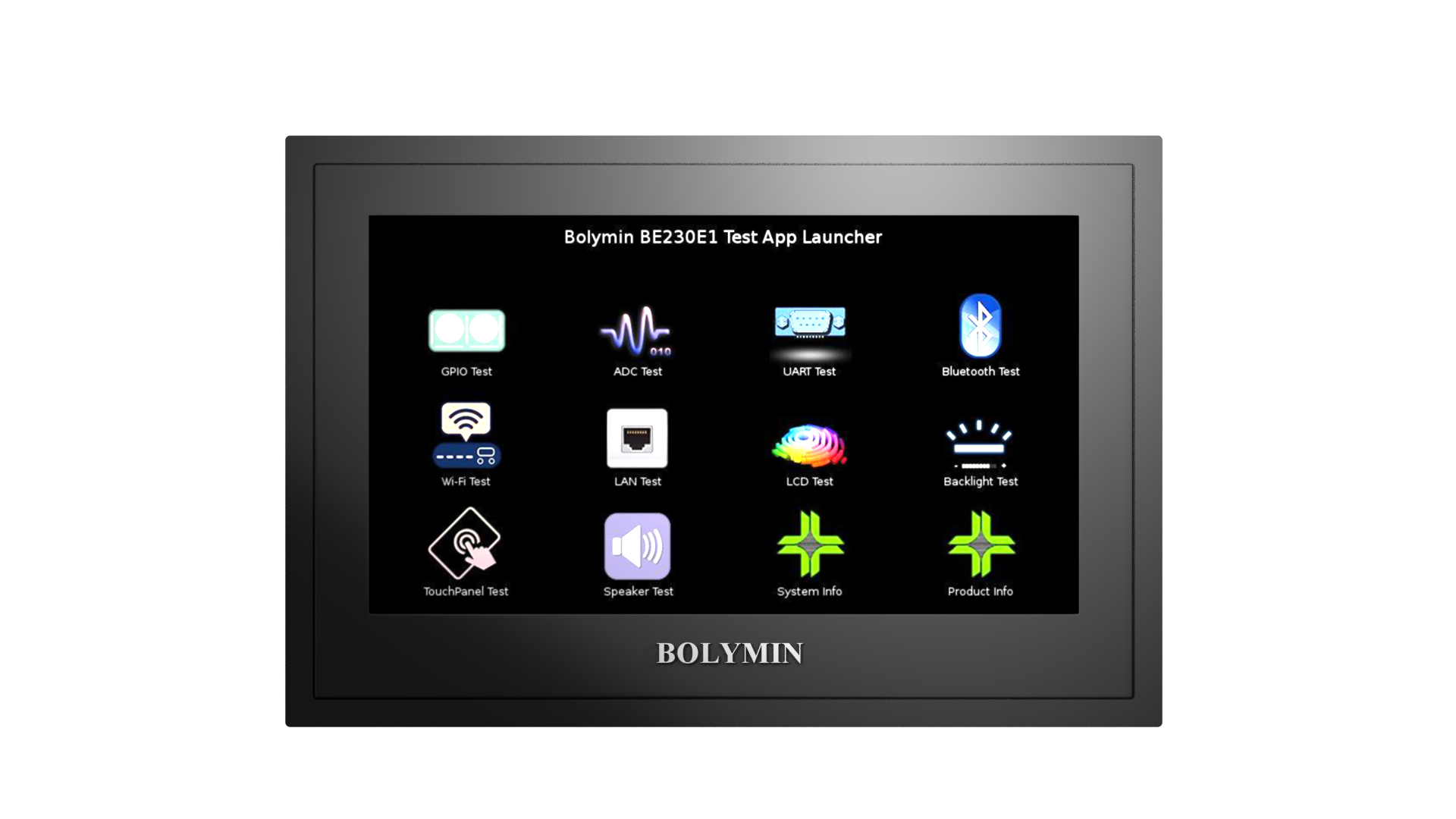

BE230E1

191x129x44.7mm

7 TFT LCD with 800 x 480 WVGA

DDR3L 512MB

DC 9V~36V

1 x RS485/422, 1 x RS232
1 x USB 2.0 Host,1 x USB 2.0 OTG, 4 x ADC

Support 2.4G Wi-Fi 802.11b/g/n
Support Bluetooth
Support SD/SDHC card
Support ADC
