GRAPHIC LCD


Graphic LCD is meant to display images, letters and numbers.

For example, a 128 x 64 LCD would contain 128 horizontal dots and 64 Vertical dots. Each of these dots can be turned ON and OFF independently and are referred as pixel.

Bolymin is a leading manufacturer of Graphic LCD modules (liquid crystal display) in Taiwan.

We offer many standard graphic LCD, including 122x32, 128x64, 128x128, 144x32, 160x128, 160x160, 160x32, 160x80, 192x64, 192x128, 240x64, 320x240 and also provide customized LCD.

Bolymin have various color LCD display with different LED backlights. Yellow-Green LCD module, White LCD Module, Red LCD Module etc. please refer to our LCD shade card for more details.

We cater to customers across the globe and offer graphic LCD for various applications; white goods LCD, POS system LCD, industrial LCD, automotive LCD, medical LCD, defense LCD and many more.

Different application require different LCD view angles and Bolymin offers viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. To read more about viewing angles, please click here



Display Format


Model No.

Outline Dimension (mm)

View Area (mm)

Dot Size (mm)

Interface

IC Part No. or Compatible with Controller

122x32

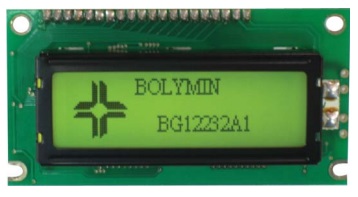

BG12232A1

84X44

60X18

0.40X0.45

Parallel

SBN1661G-M18

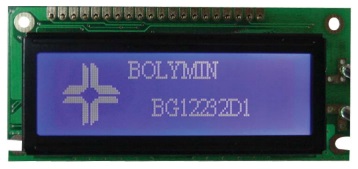

122x32

BG12232D1

80X36

60X18

0.40X0.45

Parallel

SBN1661G-M18

122x32
BG12232E1 68x26.8 61x19 0.42x0.47 Parallel SBN1661G-M18

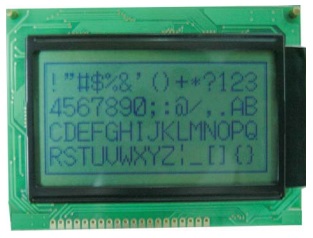

128x64

BG12864A

93X70

72X40

0.48X0.48

Parallel

NT7107/NT7108

128x64

BG12864B

93X70

72X40

0.48X0.48

Parallel / SPI

ST7920

128x64

BG12864C

80X70

72X40

0.48X0.48

Parallel

NT7107/NT7108

128x64

BG12864C1

78X70

62X44

0.40X0.56

Parallel

NT7107/NT7108

128x64

BG12864D

78X70

62X44

0.40X0.56

Parallel

UCi6963c

128x64

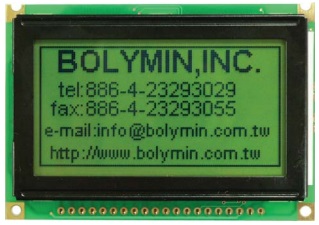

BG12864E

75X52.7

60X32.6

0.39x0.39

Parallel

NT7107/NT7108

128x64

BG12864F

87X70

72X40

0.48X0.48

Parallel

UCi6963c

128x64

BG12864H

54X50

43.5X29

0.28X0.35

Parallel

NT7107/NT7108

128x64

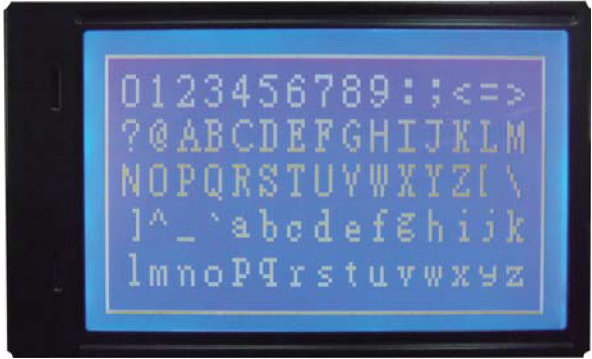

BG12864J 75x45.8 61x38 0.42x0.50 Parallel SBN0064G/6400G
144x32
BG14432A 84x44 66x16 0.37x0.37 Parallel ST7920

160x32

BG16032A

116X37

85X18.6

0.45x0.45

Parallel / SPI

ST7920

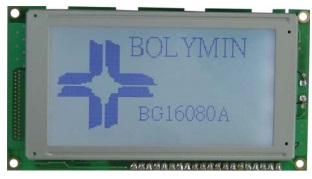

160x80

BG16080A

100X54

72.3X37.8

0.39X0.39

Parallel

SAP1024B

160x128

BG160128B

129X102

101X82

0.54X0.54

Parallel

UCi6963c

192x64

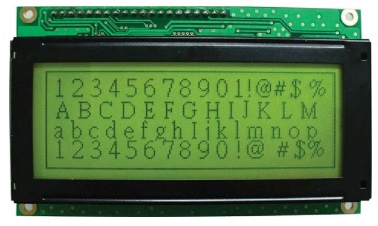

BG19264A

100X60

84X31

0.36X0.36

Parallel

NT7107/NT7108

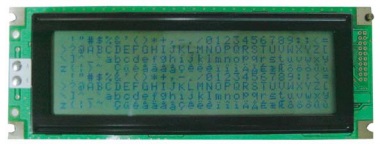

240x64

BG24064A

180X65

133x39

0.49X0.49

Parallel

UCi6963c

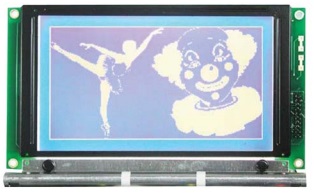

240x128

BG240128A

170X103.5

132X76

0.47X0.47

Parallel

UCi6963c

240x128

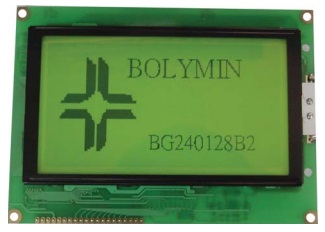

BG240128B2

144X104

114X64

0.43X0.43

Parallel

UCi6963c

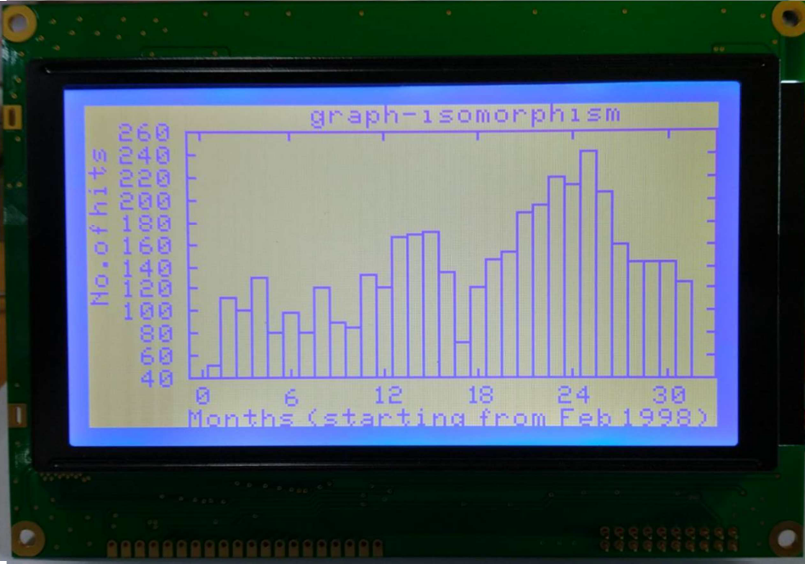

240x128

BG240128BA

144X104

114X64

0.42X0.42

Parallel

UCi6963c

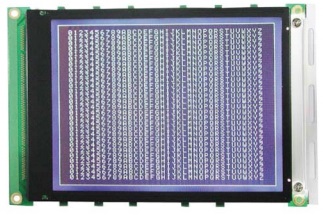

320x240

BG320240A

166.8X109

122X92

0.34X0.34

Parallel

None

320x240

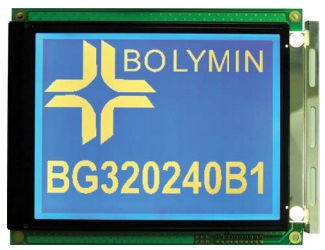

BG320240B1

139.98x120.24

120.14x92.14

0.34X0.34

Parallel

RA8835

 320x240

BG320240F

166.8x109

122x92

0.34X0.34

Parallel

RA8835

320x240

BG320240G

160x109

122x92

0.34X0.34

Parallel

RA8806










View:

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller SBN0064G/6400G
● +5V single power supply,with built-in negative voltage
● 1/64 duty cycle
● LED edge B/L
● LED B/L pins: 23/24 or 1/2
● Option:Temperature compensation circuit
● Option:External negative voltage
● DIP module

122x32 Graphic LCD Display Module

● COB with metal frame
● Built-in controller SBN1661G-M18 or equivalent
● +5V single power supply
● 1/32 duty cycle
● Option:array LED B/L
● DIP module

144x32 Graphic LCD Display Module

● COB with metal frame
● Built-in controller ST7920
(128x64 dots matrix mode or 16x16 dots Big5/GB
Chinese mode, or 8x16 dots ASCII mode)
● +5V single power supply
● 1/32 duty cycle
● Option: +3.3V single power supply
● Option: LED edge B/L

122x32 Graphic LCD Display Module

● COB with metal frame
● Built-in internal clock
● Built-in controller SBN1661G-M18 or equivalent
● 1/32duty cycle
● +5V single power supply
● LED B/L pins:19/20, or A/K or 1/2
● Option: LED, EL B/L
● Option: +3V single power supply

122x32 Graphic LCD Display Module

● COB with metal frame
● Built-in oscillation
● Built-in controller SBN1661G-M18 or equivalent
● 1/32duty cycle
● +5V single power supply
● Option: +3V single power supply
● Option: LED, EL B/L
● Option: Negative voltage

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: Temperature compensation circuit
● LED B/L pins:19/20,or A/K or 1/2
● Option: LED array / edge B/L,EL B/L
● Option: +3V single power supply
● Option: External negative voltage

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller ST7920
(128x64 dots matrix mode or 16x16 dots Big5/GB
Chinese mode, or 8x16 dots ASCII mode)
● +5V single power supply
● 1/32 duty cycle
● Option: +3V single power supply
● Option: LED array / edge B/L,EL B/L

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: LED, EL B/L
● Option: External negative voltage

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: LED array B/L,EL B/L
● Option: External negative voltage

128x64 Graphic LCD Display Module

● SMT with metal frame
● Built-in controller UCi6963c or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option:Temperature compensation
● Option: LED array/edge B/L,EL B/L
● Option: External negative voltage

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● LED B/L pins:19/20,or A/K or 1/2
● Option: LED edge B/L,EL B/L
● Option: +3V single power supply
● Option: External negative voltage

128x64 Graphic LCD Display Module

● SMT with metal frame
● Built-in controller UCi6963c or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: LED array /edge B/L,EL B/L
● Option: External negative voltage
