• 240x64 Graphic LCD Display Module

240x64 Graphic LCD Display Module

● SMT PCB with metal frame
● Built in controller UCi6963c or equivalent
● +5V power supply
● 1/64 duty
● LED B/L pins: A / K
● Option: Temperature compensation
● Option: LED, EL B/L
● Option: External negative voltage(built-in, extemal)
Model : BG24064A


BG24064A


BG24064A is a monochrome 240x64 graphic LCD display module made SMT PCB with metal frame.

It has a built-in controller UCi6963c or equivalent.

Module dimension of BG24064A is (180x65) mm and viewing area is (133x39) mm.

It supports 5V power supply with option of external negative voltage.

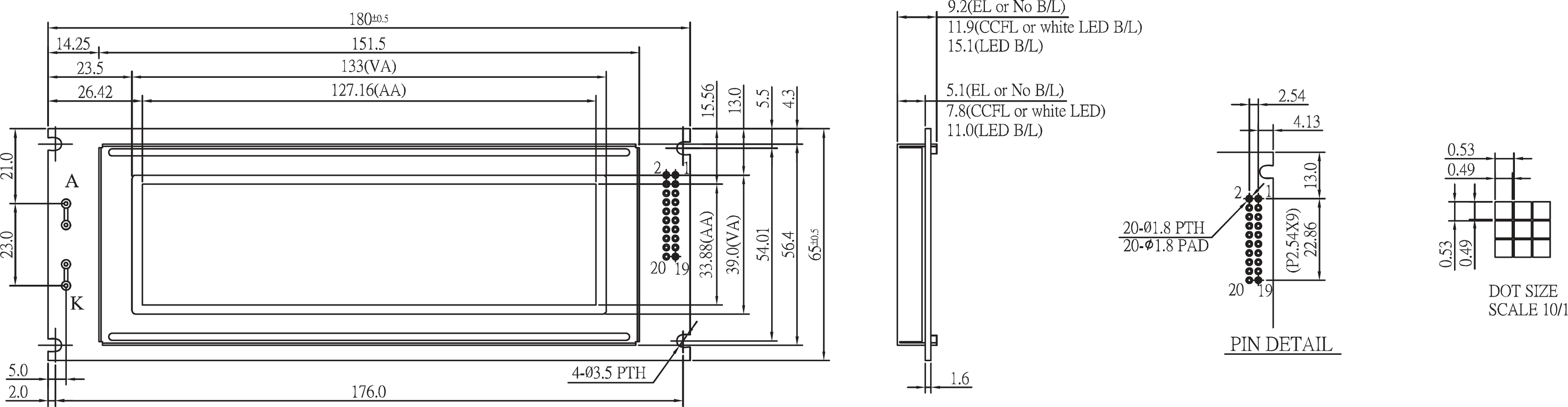

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

180.0 x 65.0

mm

Viewing Area

133.0 x 39.0

mm

Dot Size

 0.49 x 0.49

mm

Dot Pitch

0.53 x 0.53

mm




 ● Pin Assignment

Pin

Symbol

Function

1

FG

Frame ground

2

Vss

Power supply (GND)

3

Vdd

Power supply (+5V)

4

Vo

Contrast Adjustment

5

/WR

Data write

6

/RD

Data read

7

/CE

Chip enable

8

C/D

Command/data

9

Vee

Negative Voltage output (-13.6V)

10

/RST

Reset signal

11~18

DB0~7

Data bus line

19

FS

Font select (H:6x8 L:8x8)

20

NC

No connection
