• 160x80 Graphic LCD Display, BG16080A

160x80 Graphic LCD Display Module

● SMT PCB with metal frame, silver frame
● Built-in controller SAP1024B or equivalent
● +5V single power supply, with built-in negative voltage
● 1/80 duty cycle
● Option: LED, EL B/L
● Option: Built-in negative voltage
Model : BG16080A


BG16080A


BG16080A is a monochrome 160x80 graphic LCD display module made SMT PCB with metal frame, silver frame.

It has a built-in controller SAP1024B or equivalent.

Module dimension of BG16080A is (100x54) mm and viewing area is (72.3x37.8) mm.

It supports 5V power supply with built-in negative voltage.

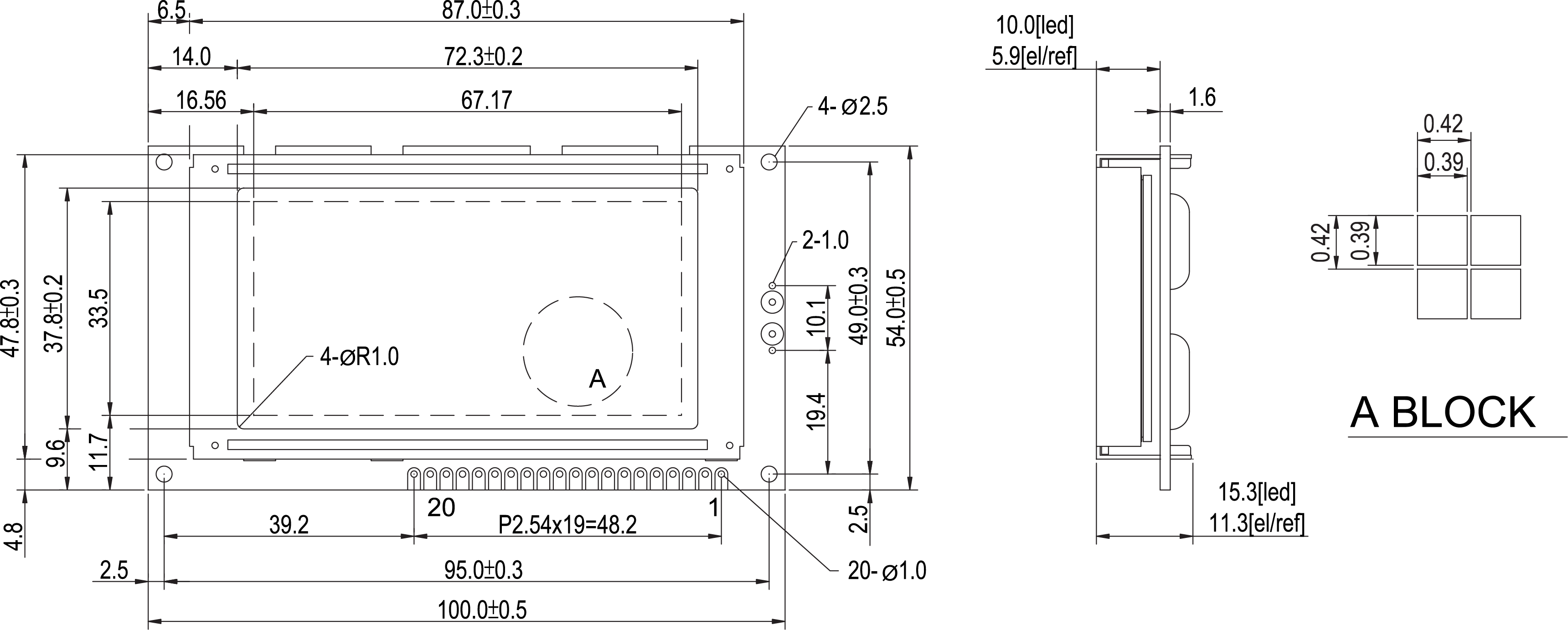

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

100.0 x 54.0

mm

Viewing Area

72.3 x 37.8

mm

Dot Size

 0.39 x 0.39

mm

Dot Pitch

0.42 x 0.42

mm




 ● Pin Assignment

Pin

Symbol

Function

1

Vee

Negative voltage output (-11V)

2

Vss

Power supply (GND)

3

Vdd

Power supply (+5V)

4

Vo

Contrast adjustment

5

/WR

L : data write

6

/RD

L : data read

7

/CE

Chip enable

8

C/D

Command/data   read/write

9

/RES

Reset signal

10~17

DB0~7

Data bus line

18

FS

Font selection (H:6x8, L:8x8)

19

A

Power supply for B/L (+)

20

K

Power supply for B/L (GND)
