• 160x32 Graphic LCD Display, BG16032A

160x32 Graphic LCD Display Module

● COB with metal frame
● Built-in controller ST7920
● +5V single power supply
● 1/32 duty cycle
● Option: +3V single power supply
● Option: LED, EL B/L Display mode
Dot matrix (160x32 dots), Chinese Big5
or GB (16x16 dots) , ASCII(8x16 dots)
Model : BG16032A


BG16032A


BG16032A is a monochrome 160x32 graphic LCD display module made using Chip on Board (COB) method and comes with metal frame.

It has a built-in controller ST7920 that support (160x32 dots matrix mode, Chinese Big 5 or GB (16x16) dots, ASCII (8x16) dots.

Module dimension of BG16032A is (116x37) mm and viewing area is (85x18.6) mm.

It supports 5V power supply and provides option of 3V power supply as well.

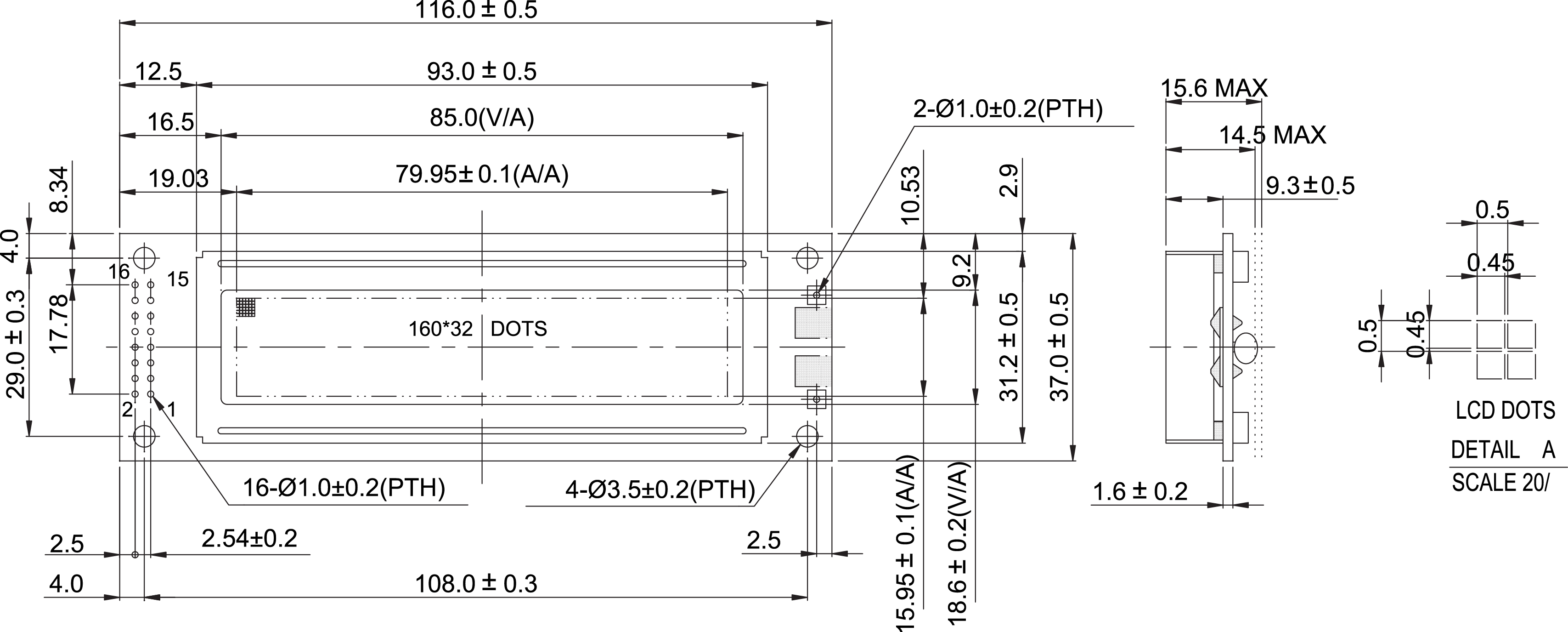

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

116.0 x 37.0

mm

Viewing Area

85.0 x 18.6

mm

Dot Size

 0.45 x 0.45

mm

Dot Pitch

0.50 x 0.50

mm




 ● Pin Assignment

Pin

Symbol

Function

1

Vss

GND

2

Vdd

+5V (+3V option)

3

Vo

Contrast adjustment

4

RS

H/L register select signal

5

R/W

read/write signal

6

E

H>L enable signal

7~14

DB0~7

H/L bus line

15

A/Vee

Power supply for B/L (+)/ Negative voltage output

16

K

Power supply for B/L (GND)
