• 128x64 Graphic LCD Display, BG12864H

128x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: EL backlight & EL inverter
● Option: +3V single power supply
● Option: external negative voltage
● No LED Backlight Option
Model : BG12864H


BG12864H


BG12864H is a monochrome 128x64 graphic LCD display module made using Chip on Board (COB) method and comes with metal frame.

It has a built-in controller NT7107/NT7108 or equivalent.

Module dimension of BG12864H is (54x50) mm and viewing area is (43.5x29.0) mm.

It supports 5V power supply and provides option of 3V power supply as well.

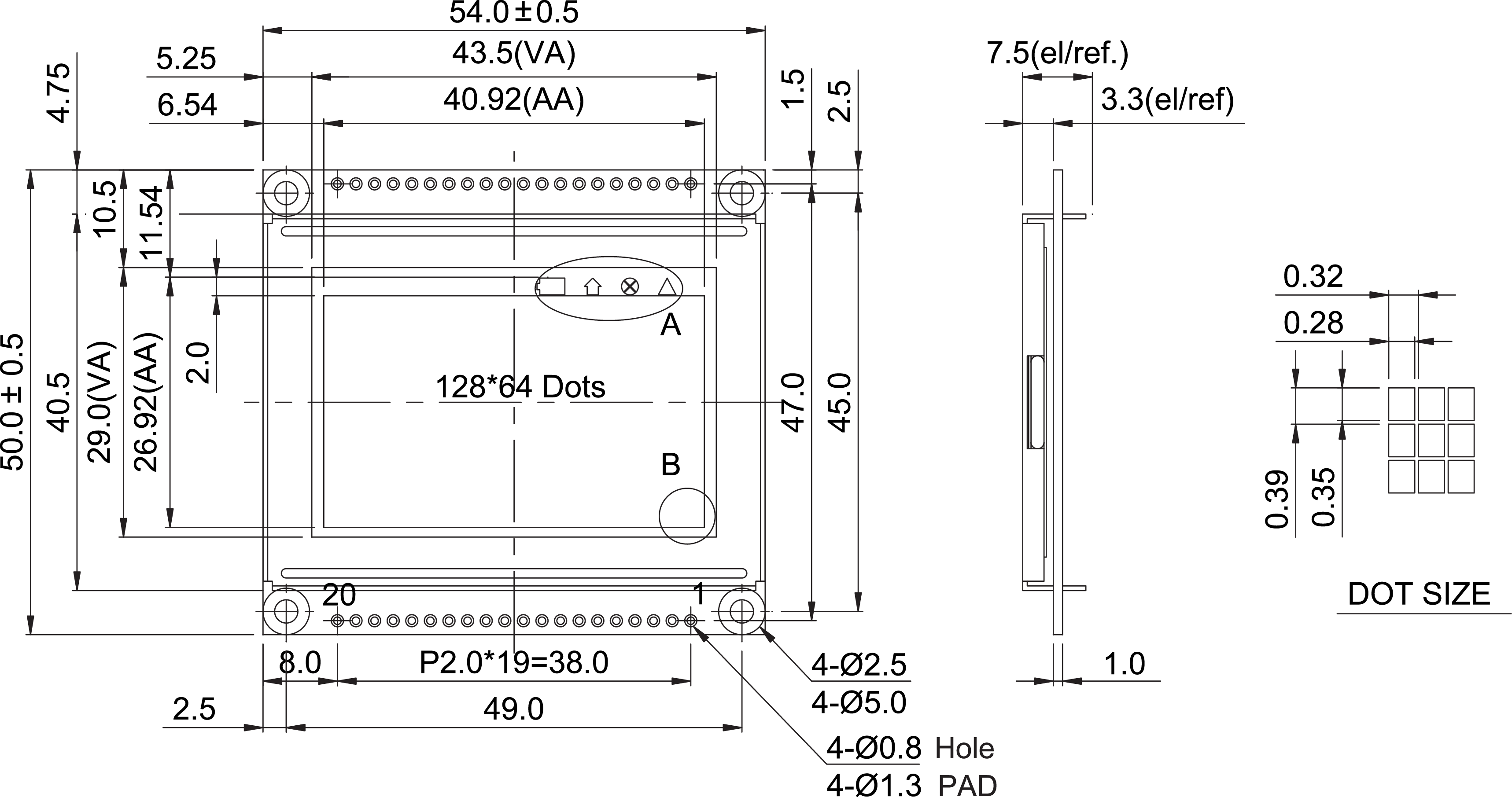

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

54.0 x 50.0

mm

Viewing Area

43.5 x 29.0

mm

Dot Size

 0.28 x 0.35

mm

Dot Pitch

0.32 x 0.39

mm




 ● Pin Assignment

Pin

Symbol

Function

1

Vss

Power supply GND

2

Vdd

+5V (+3V option)

3

Vo

Contrast adjustment

4

D/I

Data/instruction

5

R/W

Data read/write

6

E

Enable signal

7~14

DB0~7

Data bus line

15

CS1

Chip enable (segment 1-64)

16

CS2

Chip enable (segment 65-128)

17

/RST

Reset signal

18

Vee

Negative voltage output -10V

19

BL+

EL backlight power on/off

20

NC

No connection
