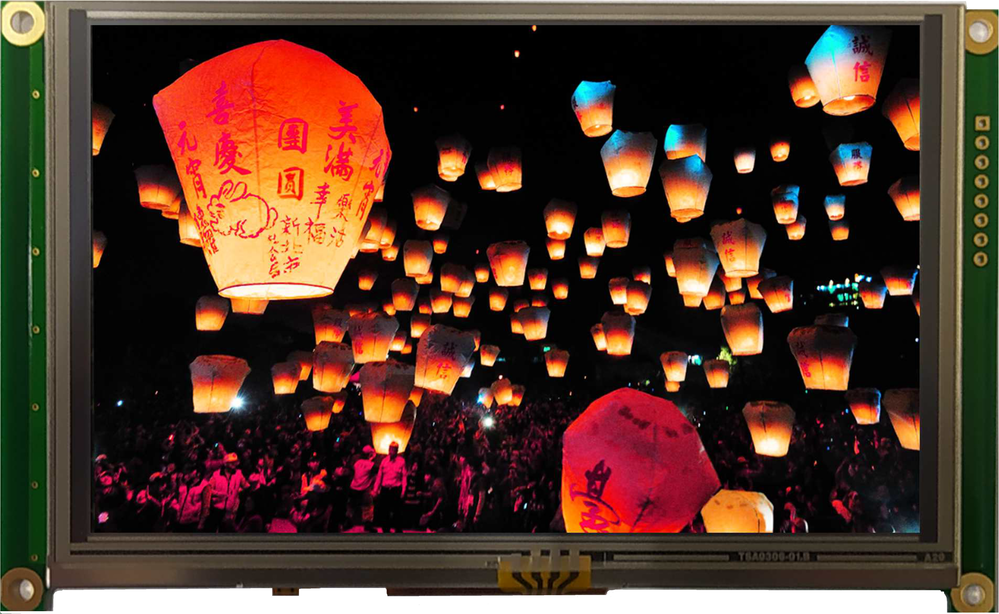

5.0 inch 800x480 mTFT Display
● Resolution:800*RGB*480
● Display Type:TFT/Transmissive/Normally/white
● Interface Type:SPI
● Controller IC FT810
● Top:-20℃~70℃
● Support Resistive Touch Panel
● Surface Luminance 280 cd/m²(Type)
● Mechanical Data

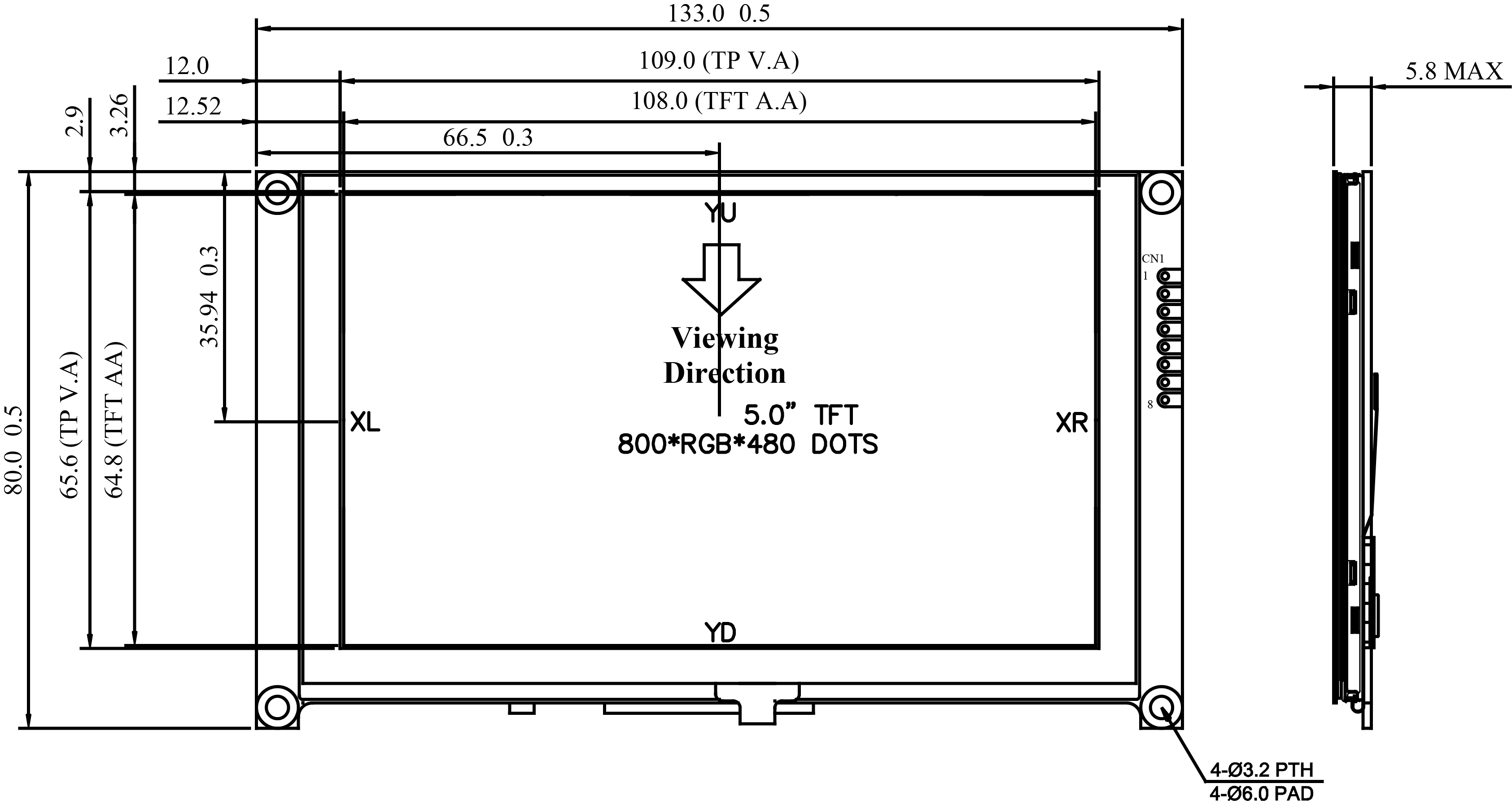

1. Module(WxHxT)(mm):133.0*80.0*5.8
2. Active Area(mm):108.0*64.8
3. LED Numbers: 12 LEDs
● Pin Assignment
Pin No.
Symbol
I/O Voltage
Function
1
VDD
-
Power supply voltage for logic.
2
VSS
-
Ground.
3
SCL
3.3V
SPI clock input.
4
MISO
3.3V
SPI MISO output.
5
MOSI
3.3V
SPI MOSI input.
6
/CS
3.3V
Chip select signal. Active low.
7
/PD
3.3V
Chip power down mode
8
/INT
3.3V
Interrupt to host,active low.
control input,active low.
