• 128x64 Graphic LCD Display, BG12864F

128x64 Graphic LCD Display Module

● SMT with metal frame
● Built-in controller UCi6963c or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: LED array /edge B/L,EL B/L
● Option: External negative voltage
Model : BG12864F


BG12864F


BG12864F is a monochrome 128x64 graphic LCD display module made using SMT with metal frame.

It has a built-in controller UCi6963c or equivalent. BG12864F also provides the option for temperature compensation circuit.

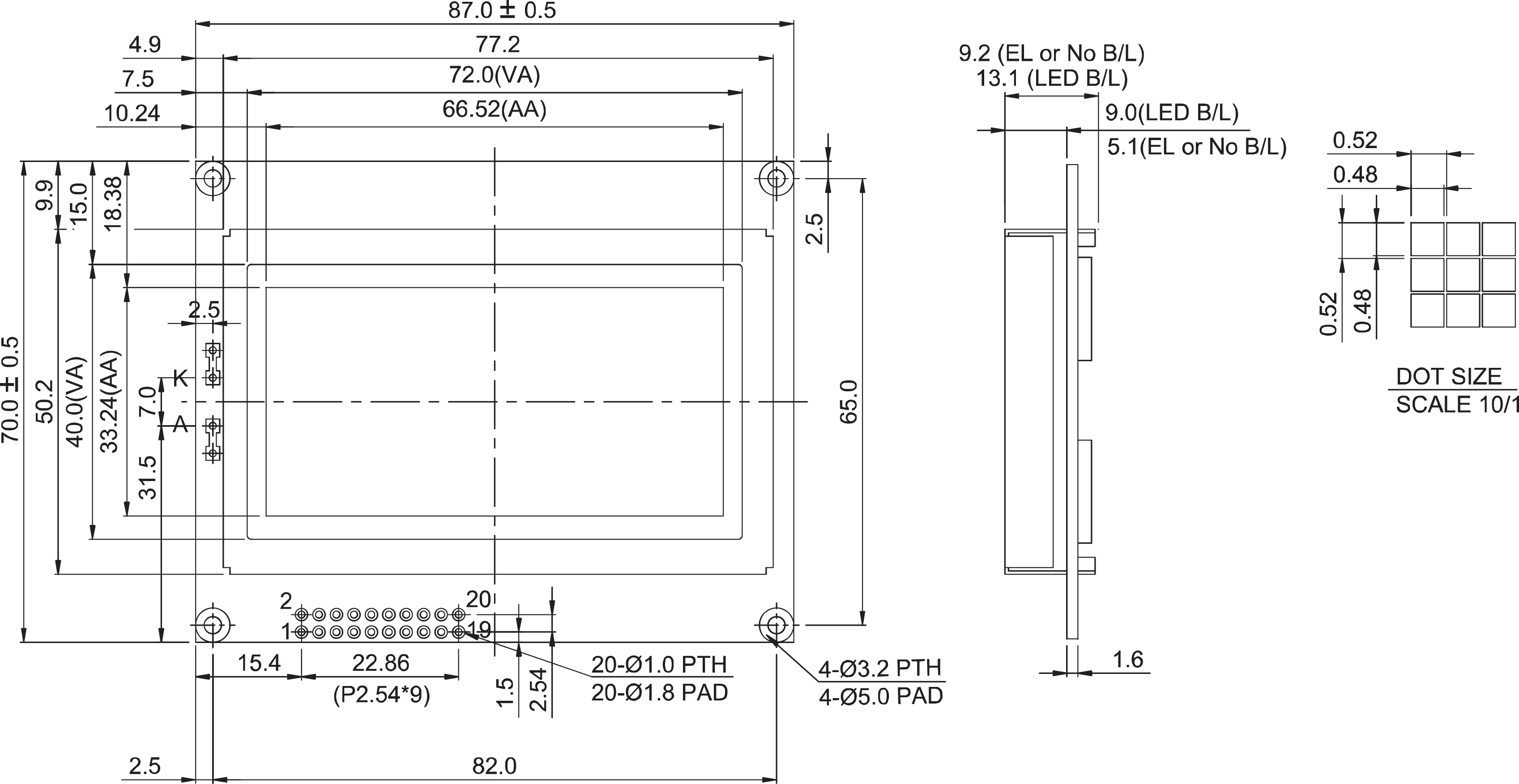

Module dimension of BG12864F is (87x70) mm and viewing area is (72x40) mm.

It supports 5V power supply and provides option of 3V power supply as well.








● Mechanical Data

Item

Standard Value

Unit

Module Dimension

87.0 x 70.0

mm

Viewing Area

72.0 x 40.0

mm

Dot Size

 0.48 x 0.48

mm

Dot Pitch

0.52 x 0.52

mm




 ● Pin Assignment

Pin

Symbol

Function

1

Vss

GND

2

Vdd

Power supply (+5V)

3

Vo

Contrast adjustment

4

C/D

Command/data

5

/RD

Data read

6

/WR

Data write

7~14

DB0~7

Data bus line

15

/CE

Chip enable

16

/RST

Reset signal

17

Vee

Negative voltage output -5V

18

MD2

Column No. selection
(H: 32 column, L : 40 columns )

19

FS

Font selection (H:6x8, L:8x8)

20

HLT

H: normal L: stop clock oscillation
