• 160x128 Graphic LCD Display, BG160128B

160x128 Graphic LCD Display Module

● SMT PCB with metal frame
● Built-in controller UCi6963c or equivalent
● +5V single power supply
● 1/128 duty cycle
● Option: CCFL backlight,LED white backlight
● Option: negative voltage
Model : BG160128B


BG160128B


BG160128B is a monochrome 160x128 graphic LCD display module made using SMT PCB with metal frame.

It has a built-in controller UCi6963c or equivalent.

Module dimension of BG160128B is (129x102) mm and viewing area is (101x82) mm.

It supports 5V power supply with option of negative voltage.

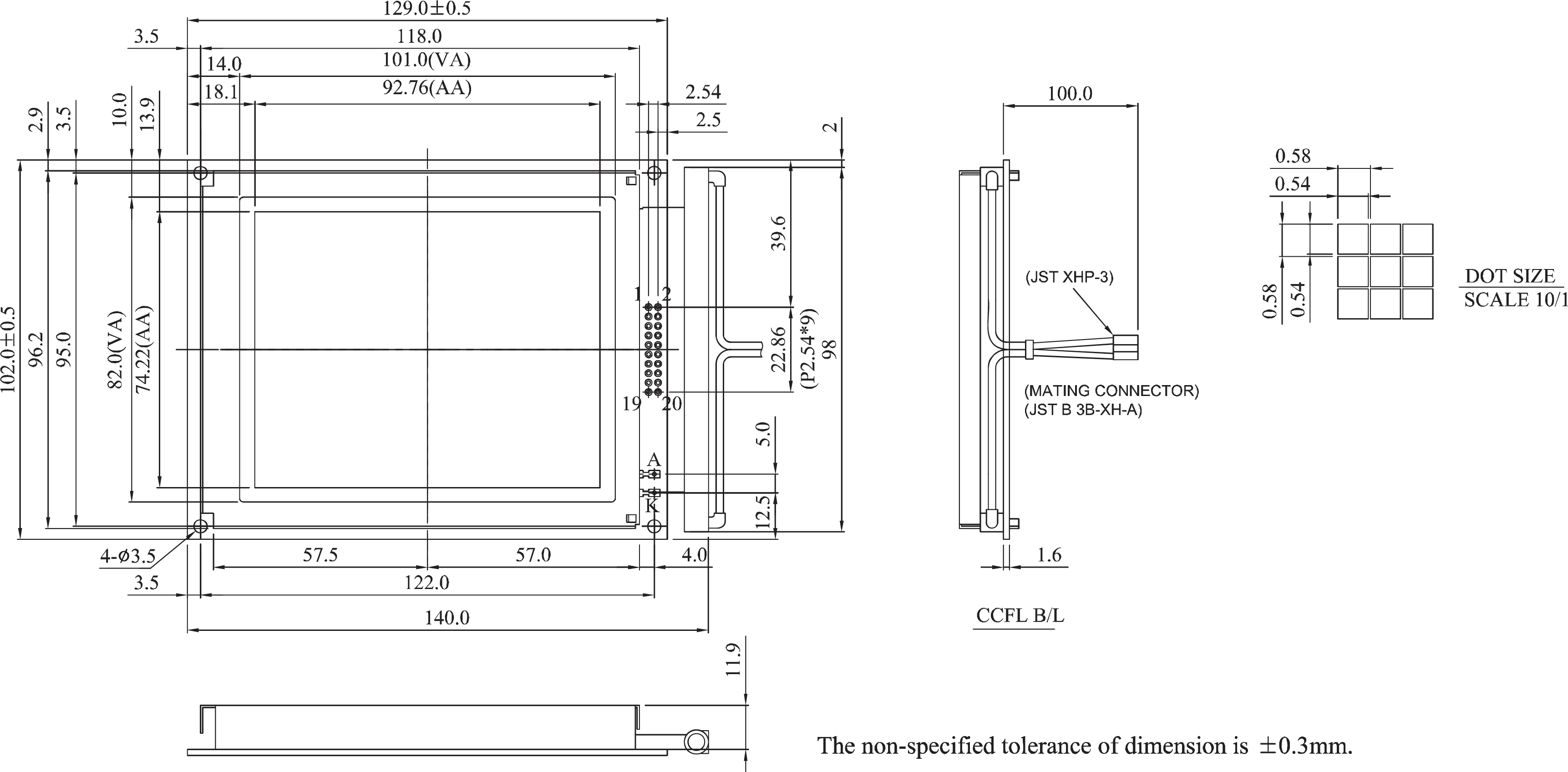

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

129.0 x 102.0

mm

Viewing Area

101.0 x 82.0

mm

Dot Size

 0.54 x 0.54

mm

Dot Pitch

0.58 x 0.58

mm




 ● Pin Assignment

Pin

Symbol

Function

1

FGND

Frame ground

2

Vss

Logic power supply (GND)

3

Vdd

Logic power supply (+5V)

4

Vadj

Contrast Adjustment

5

Vee

Negative Voltage output (-16V)

6

/WR

Data write

7

/RD

Data read

8

/CE

Chip enable

9

C/D

Command/Data read/write

10

/HALT

Clock halt signal

11

/RST

Reset LCD module signal

12~19

DB0~7

Data bus line

20

NC

No connection
