• 240x128 Graphic LCD Display, BG240128B2

240x128 Graphic LCD Display Module

● SMT PCB with metal frame
● Built-in controller UCi6963c or equivalent
● 1/128 duty cycle
● +5V single power supply
● Option: negative voltage
● Option: temperature compensation
● Option: LED array/edge B/L,EL B/L, CCFL

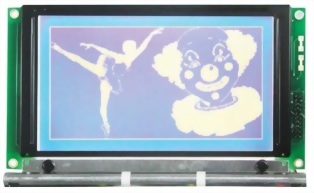

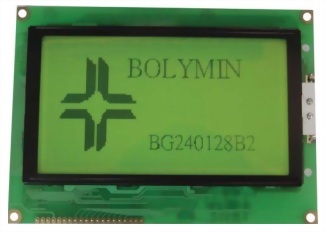

Model : BG240128B2


BG240128B2


BG240128B2 is a monochrome 240x128 graphic LCD display module made using SMT PCB with metal frame.

It has a built-in controller UCi6963c or equivalent.

Module dimension of BG240128B2 is (144X104) mm and viewing area is (114X64) mm.

It supports 5V power supply with option of negative voltage.








● Mechanical Data

Item

Standard Value

Unit

Module Dimension

144.0 x 104.0

mm

Viewing Area

114.0 x 64.0

mm

Dot Size

 0.43 x 0.43

mm

Dot Pitch

0.45 x 0.45

mm




 ● Pin Assignment

Pin

Symbol

Function

1

Vss

Power supply (GND)

2

Vdd

Power supply (+5V)

3

Vo

Contrast adjustment

4

C/D

Command/data

5

/RD

Data read

6

/WR

Data write

7~14

DB0~7

Data bus line

15

/CE

Chip enable

16

RST

Reset

17

Vee

Negative voltage output (-17.6V)

18

MD2

Column No. select
(H:32 columns, L:40 columns)

19

FS

Font selection (H:6x8, L:8x8)

20

NC/RV

No connection / Reverse
