• 240x128 Graphic LCD Display, BG240128A

240x128 Graphic LCD Display Module

● SMT PCB with metal frame
● Built-in controller UCi6963c or equivalent
● 1/128 duty cycle
● Option: negative voltage
● Option: LED Green, white B/L,EL B/L,CCFL
Model : BG240128A


BG240128A

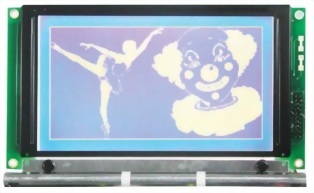

BG240128A is a monochrome 240x128 graphic LCD display module made using SMT PCB with metal frame.

It has a built-in controller UCi6963c or equivalent.

Module dimension of BG240128A is (170x103.5) mm and viewing area is (132x76) mm.

It supports 5V power supply with option of negative voltage.

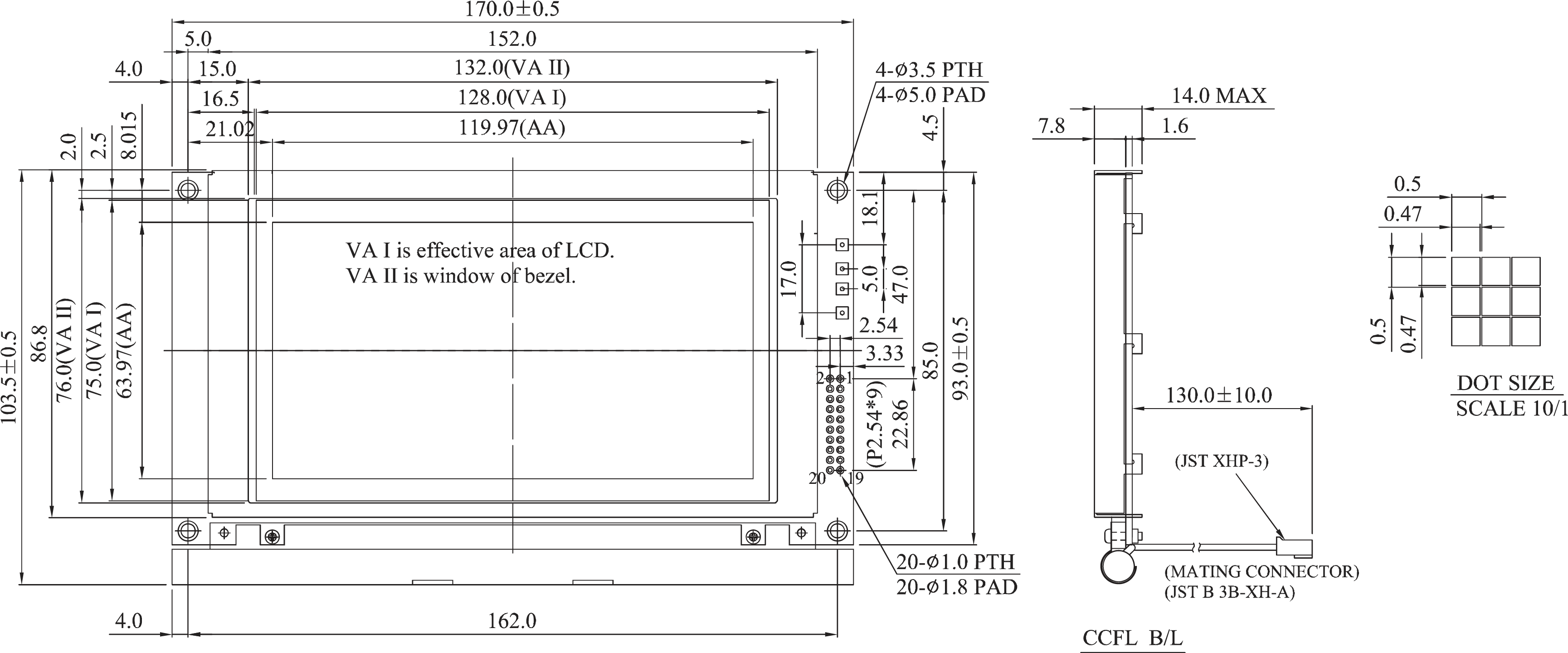

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

170.0 x 103.5

mm

Viewing Area

132.0 x 76.0

mm

Dot Size

 0.47 x 0.47

mm

Dot Pitch

0.50 x 0.50

mm




 ● Pin Assignment

Pin

Symbol

Function

1

FGND

Frame GND

2

Vss

Power supply (GND)

3

Vdd

Power supply for logic(+5V)

4

Vo

Contrast adjustment

5

/WR

Data write

6

/RD

Data read

7

/CE

Chip enable

8

C/D

Code/Data

9

NC/Vee

No connection/Negative
    voltage output -16.0V

10

/RST

Controller reset

11~18

DB0~7

Data bus line

19

FS

Font selection (H:6x8 L:8x8)

20

RV

Reverse (H: reverse L: normal)











Related Products

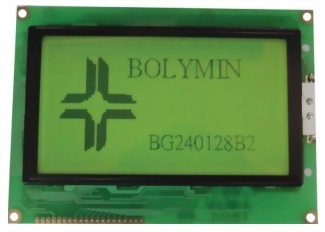

240x128 Graphic LCD Display Module

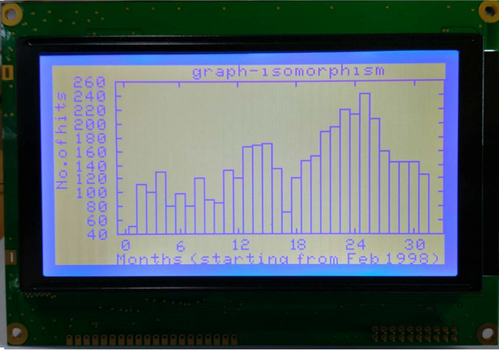

240x128 Graphic LCD Display Module
