• 240x128 Graphic LCD Display, BG240128BA

240x128 Graphic LCD Display Module

● SMT PCB with metal frame
● Built-in controller UCi6963c
● 1/128 duty cycle
● +5V single power supply
● Option: negative voltage
● Option: LED edge/array B/L
Model : BG240128BA


BG240128BA


BG240128BA is a monochrome 240x128 graphic LCD display module made using SMT PCB with metal frame.

It has a built-in controller UCi6963c or equivalent and also provides the option for temperature compensation circuit.

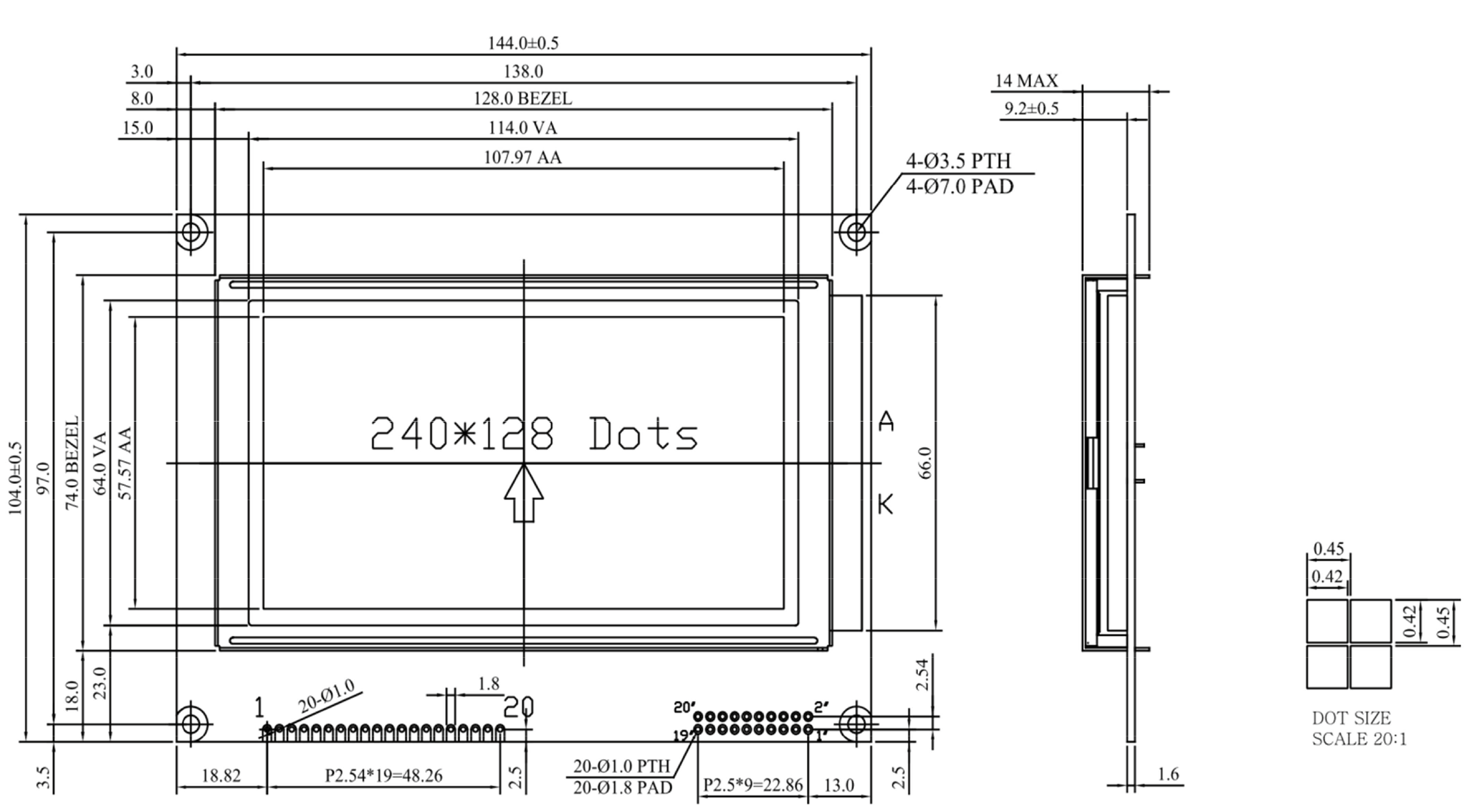

Module dimension of BG240128BA is (144x104) mm and viewing area is (114x64) mm.

It supports 5V power supply with option of negative voltage.








● Mechanical Data

Item

Standard Value

Unit

Module Dimension

144.0 x 104.0

mm

Viewing Area

114.0 x 64.0

mm

Dot Size

 0.42 x 0.42

mm

Dot Pitch

0.45 x 0.45

mm




 ● Pin Assignment

Pin

Symbol

Function

Pin

Symbol

Function

1

FG

Frame GND

1"

FG

Frame GND

2

VSS

GND

2"

VSS

GND

3

VDD

Power supply (+5V)

3"

VDD

Power supply (+5V)

4

V0

Power supply for LCD driver

4"

V0

Power supply for LCD driver

5

/WR

Data write

5"

/WR

Data write

6

/RD

Data read

6"

/RD

Data read

7

/CE

L : Chip enable

7"

/CE

L : Chip enable

8

C/D

Command/Data

8"

C/D

Command/Data

9

/RST

H : Normal ; L : lnitialize UCi6963

9"

VEE

Negative Voltage output -22V

10~17

DB0~7

Data bus line

10"

/RST

H : Normal ; L : lnitialize UCi6963

18

FS

Font selection (H:6x8, L:8x8)

11"~18"

DB0~7

Data bus line

19

LEDA

Backlight Anode

19"

FS

Font selection (H:6x8, L:8x8)

20

VEE

Negative Voltage output -22V

20"

NC

No connection
