• 192x64 Graphic LCD Display , BG19264A

192x64 Graphic LCD Display Module

● COB with metal frame
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: Temperature compensation circuit
● LED B/L pins:19/20,or A/K or 1/2
● Option: LED array / edge B/L,EL B/L
● Option: +3V single power supply
● Option: External negative voltage
Model : BG19264A


BG19264A


BG19264A is a monochrome 192x64 graphic LCD display module made using Chip on Board (COB) method and comes with metal frame.

It has a built-in controller NT7107/NT7108 or equivalent.

Module dimension of BG19264A is (100x60) mm and viewing area is (84x31) mm.

It supports 5V power supply and provides option of 3V power supply as well.

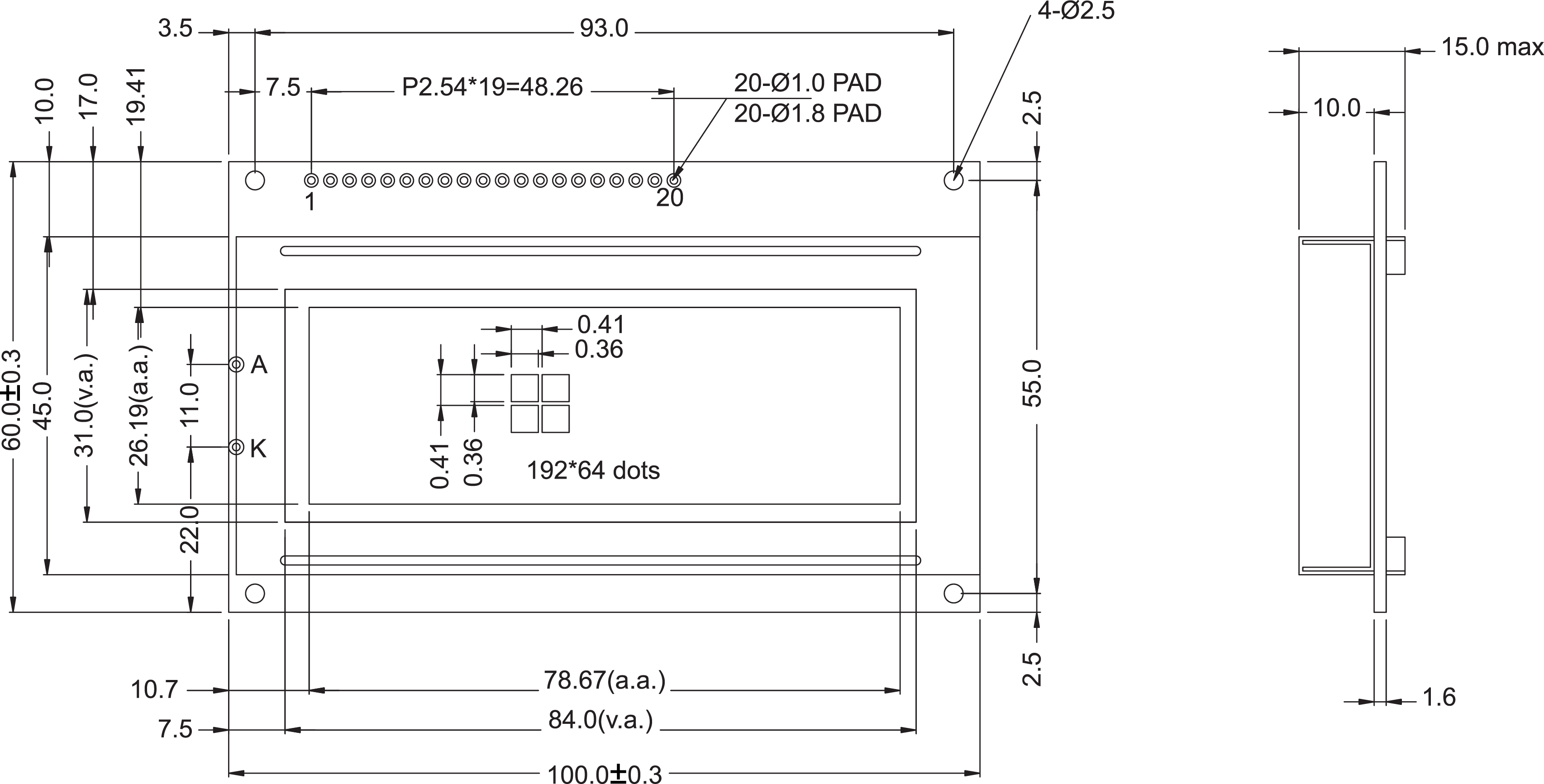

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

100.0 x 60.0

mm

Viewing Area

84.0 x 31.0

mm

Dot Size

 0.36 x 0.36

mm

Dot Pitch

0.41 x 0.41

mm




 ● Pin Assignment

Pin

Symbol

Function

1

/CSA

Chip select A :

2

/CSB

Chip select B :

3

Vss

Ground

4

Vdd

Power supply for logic (+5V)

5

Vo

Power supply for LCD driver

6

D/I

Data or instruction select input

7

R/W

Read/Write control signal input pin

8

E

Chip Enable

9

DB0~DB7

Data input / output

10~17

RST

Reset

18

Vee

Negative voltage output

19

LED(+)

Anode of backlight

20

LED(-)

Cathode of backlight
