• 122x32 Graphic LCD display,BG12232A1

122x32 Graphic LCD Display Module

● COB with metal frame
● Built-in internal clock
● Built-in controller SBN1661G-M18 or equivalent
● 1/32duty cycle
● +5V single power supply
● LED B/L pins:19/20, or A/K or 1/2
● Option: LED, EL B/L
● Option: +3V single power supply
Model : BG12232A1


BG12232A1


BG12232A1 is a monochrome 122x32 graphic LCD display module made using Chip on Board (COB) method and comes with metal frame.

It has a built-in internal clock and built-in controller SBN1661G-M18 or equivalent.

Module dimension of BG12232A1 is (84x44) mm and viewing area is (60x18) mm.

It supports 5V power supply and provides option of 3V power supply as well.

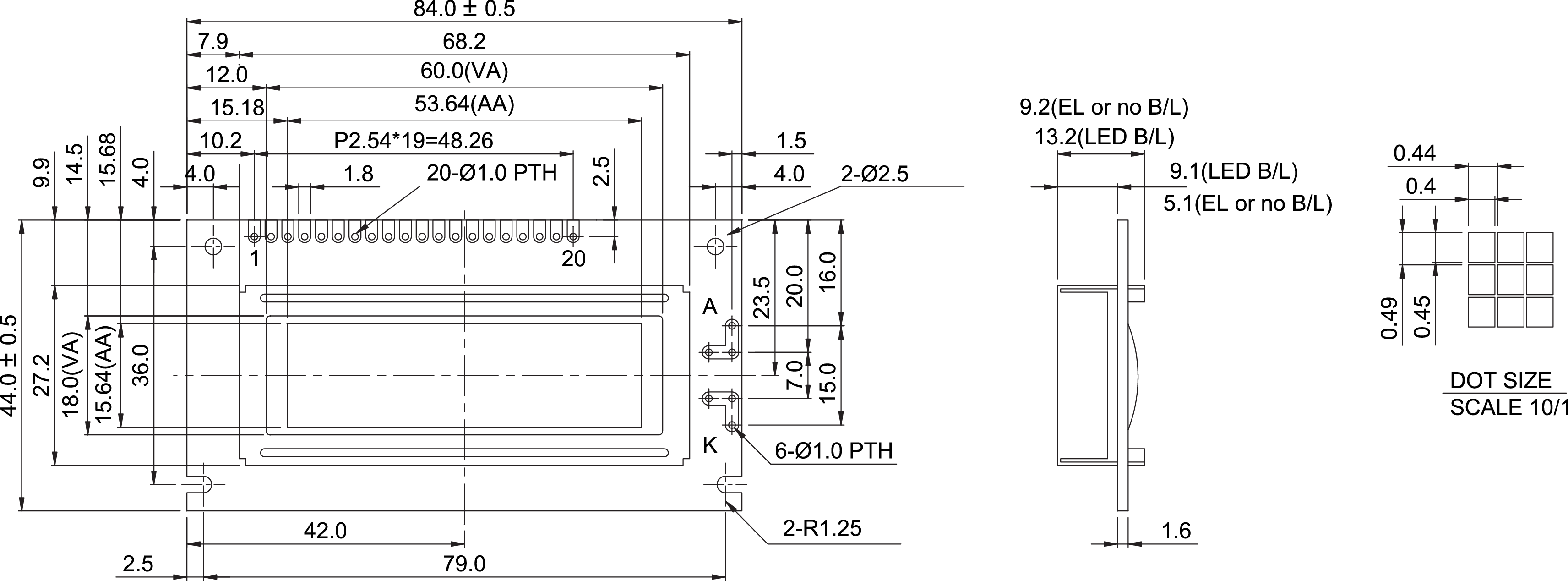

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

84.0 x 44.0

mm

Viewing Area

60.0 x 18.0

mm

Dot Size

 0.40 x 0.45

mm

Dot Pitch

0.44 x 0.49

mm




 ● Pin Assignment

Pin

Symbol

Function

1

Vss

GND

2

Vdd

+5V (+3V option)

3

Vo

Contrast Adjustment

4

Ao

H>Data  L> Instruction

5

E1

Data Latch For Chip1(S1~S61)

6

E2

Data Latch For Chip2(S62~S122)

7

NC

No Connection

8

NC

No Connection

9

R/W

R/W for 68 serial

10~17

DB0~7

Data bus line

18

/RES

Reset(H->L)

19

A/Vee

Power supply for B/L (+)

20

K

Power supply for B/L (GND)
