BC2004H 20x4 LCD


Bolymin DIP Module LCD

20x04 Alphanumeric DIP-Series LCD Module


Bolymin BC2004H

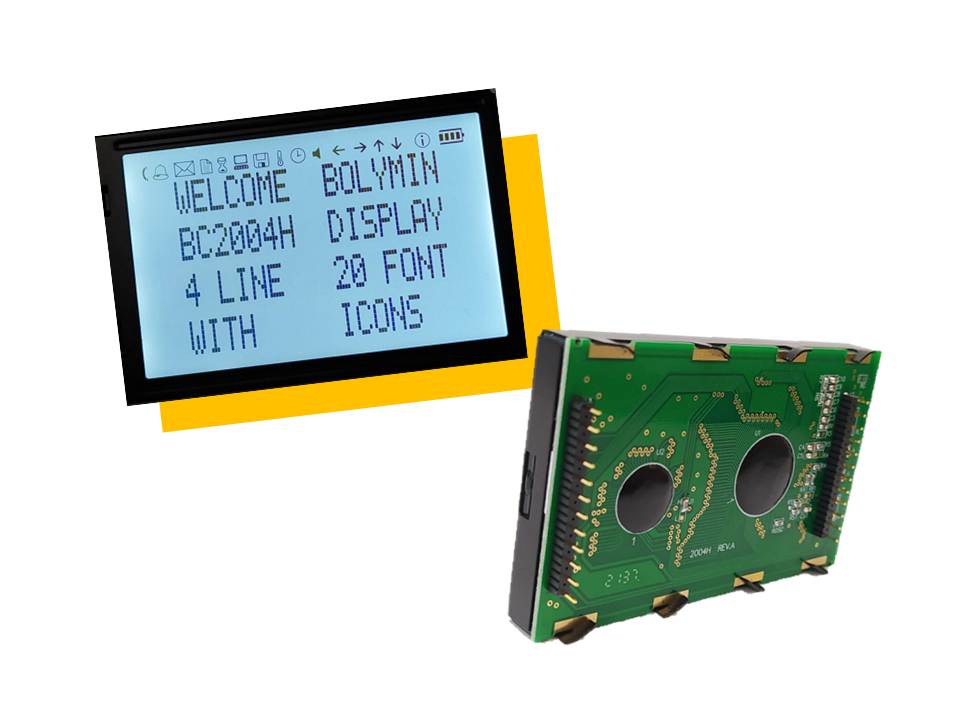

BC2004H is a 20x04 alphanumeric LCD that comes with built-in 24 pin header. It is a (Chip-on-Board) LCD display that doesn't require screws for mounting and customer can directly solder it on their PCB.

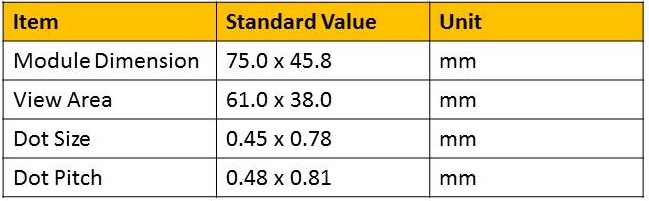

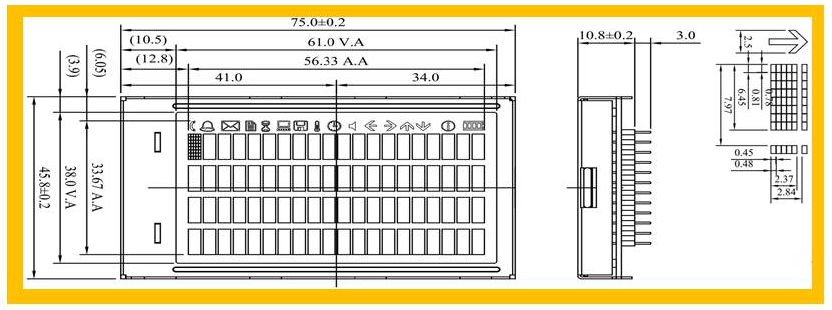

Dimension

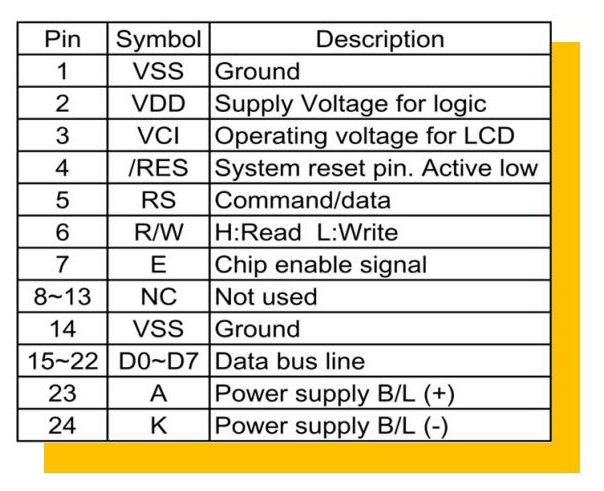

PIN Assignment




Features

1. 20 characters ×4 Lines

2. COB with metal frame

3. 5x7 dots with cursor, with icons

4. Built-in controller RW1073

5. +3.3V single power supply

6. 1/33 duty cycle

7. LED B/L pins:23/24

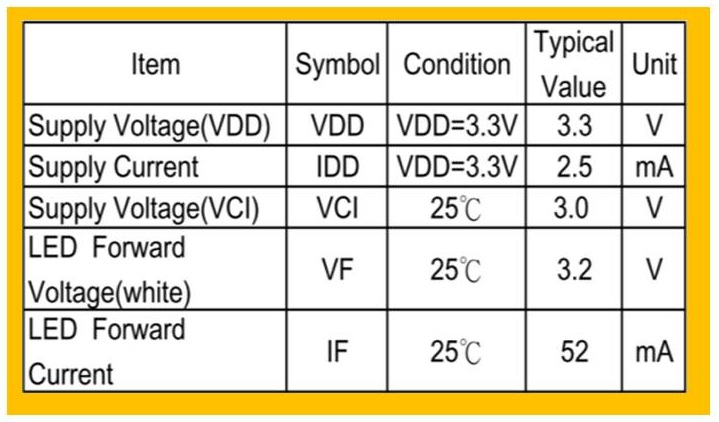

Electronic Characteristics
