UJL UART TFT LCD Full Product Series Introduction
UART TFT LCD Product Line

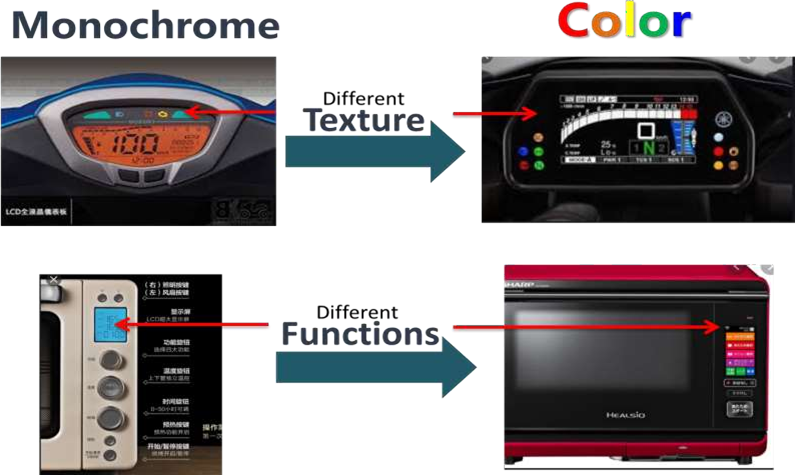

Market Trend Monochrome Start change to Color
Advantages of Color
．With better product competitiveness
．Cater to market demand
．Value-Added
．Improve product performance
．Price is similar to monochrome
Difficult to convert?
．Does the original MCU need to be modified?
．Are the motherboard changes heavily?
．What should I do if the MCU speed is not fast enough and the screen refresh is too slow?
．ROM is not enough?
．Face problem on file Complicated graphics overlap operation

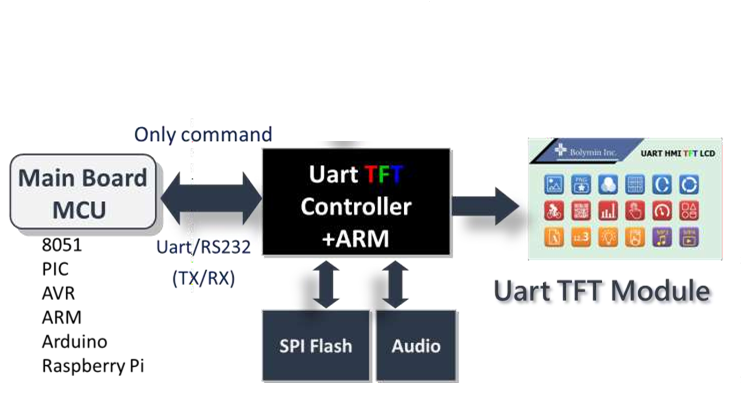

UART TFT LCD
Solution
what you see is what you get

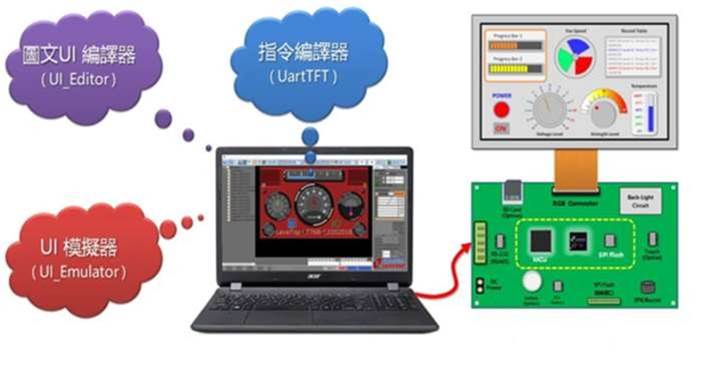

Completely system software

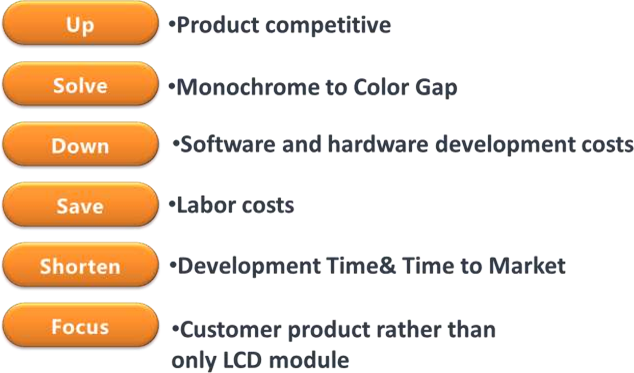

Competitive Advantages

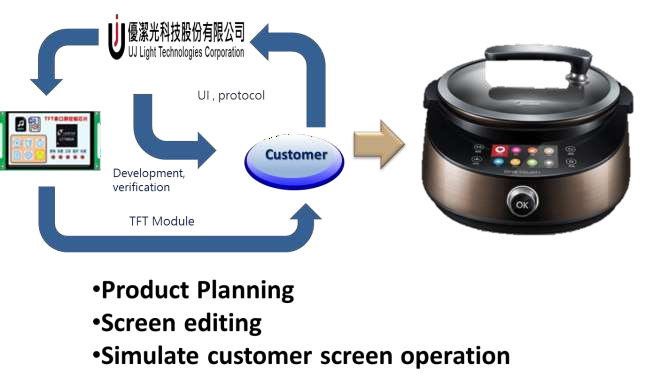

What we can do ?
UART TFT LCD Series
|
Size |
Resolution |
Model No. |
Outline Dimension (mm) |
Brightness (cd/m2) |
View Angle |
Interface |
IC Part No. |
Touch Panel |
Audio |
|
2.8” |
320x240 |
BTU028-3224TL100RTN$ |
96.6 x 55.94 |
200 |
6H |
UART/RS232 |
ARM M4 |
RTP |
WAV |
|
3.2” |
320x240 |
BTU032-3224TL100RTN$ |
96.6 x 55.94 |
290 |
6H |
UART/RS232 |
ARM M4 |
RTP |
WAV |
|
4.3” |
480x272 |
BTU043-4827IL300CTN$ |
105.5 x 67.2 |
340 |
ALL |
UART/RS232 |
ARM M4 |
CTP |
WAV |
|
5” |
800x480 |
BTU050-8048IL301CTN$ |
120.7 x 75.8 |
550 |
ALL |
UART/RS232 |
ARM M4 |
CTP |
WAV |
|
7” |
800x480 |
BTU070-8048IL301CTN$ |
165.9 x 101 |
900 |
ALL |
UART/RS232 |
ARM M4 |
CTP |
WAV |
|
10.1” |
1024x600 |
BTU101-1060IL301CTN$ |
235 x 143 |
400 |
ALL |
UART/RS232 |
ARM M4 |
CTP |
WAV |

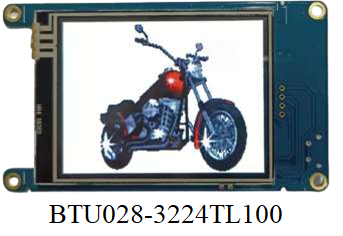

2.8” 240x320 UART TFT LCD
● Surface Luminance 200 cd/m²(Type)
● 90 or 180 degree rotation

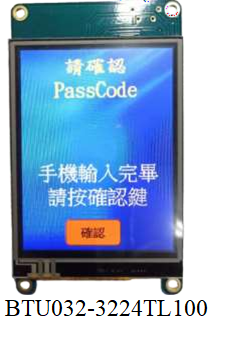

3.2” 240x320 UART TFT LCD
● 90 or 180 degree rotation

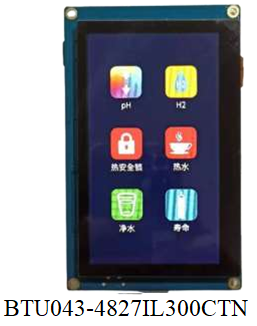

4.3” 480x272 UART TFT LCD
● 4.3" TFT LCD Module
● Resolution:480*RGB*272(IPS)
● Display Type: TFT/Transmissive/Normally Black
● Interface Type: UART TX RX
● Controller IC: ARM M4
● Top:-20℃~70℃
● Support Capacitive Touch Panel
● Surface Luminance 340 cd/m²(Type)
5” 800x480 UART TFT LCD
● 5.0" TFT LCD Module
● Resolution:800*RGB*480(IPS)
● Display Type: TFT/Transmissive/Normally Black
● Interface Type: UART TX RX
● Controller IC: ARM M4
● Top:-20℃~70℃
● Support Capacitive Touch Panel
● Surface Luminance: 550 cd/m²(Type)

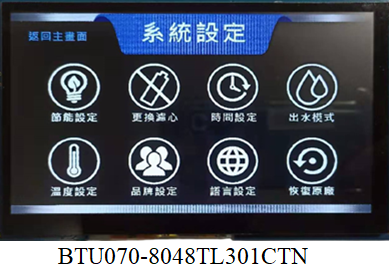

7” 800x480 UART TFT LCD
● Support Capacitive Touch Panel

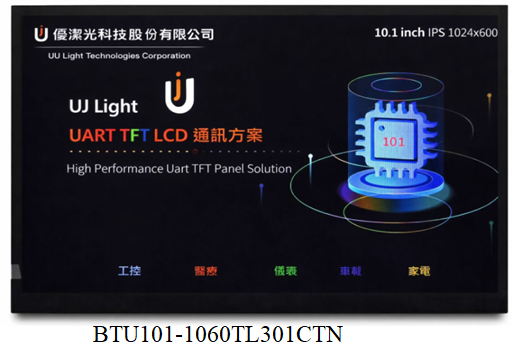

10.1” 1024x600 UART TFT LCD
● Support Capacitive Touch Panel
● Surface Luminance: 400 cd/m²(Type)
